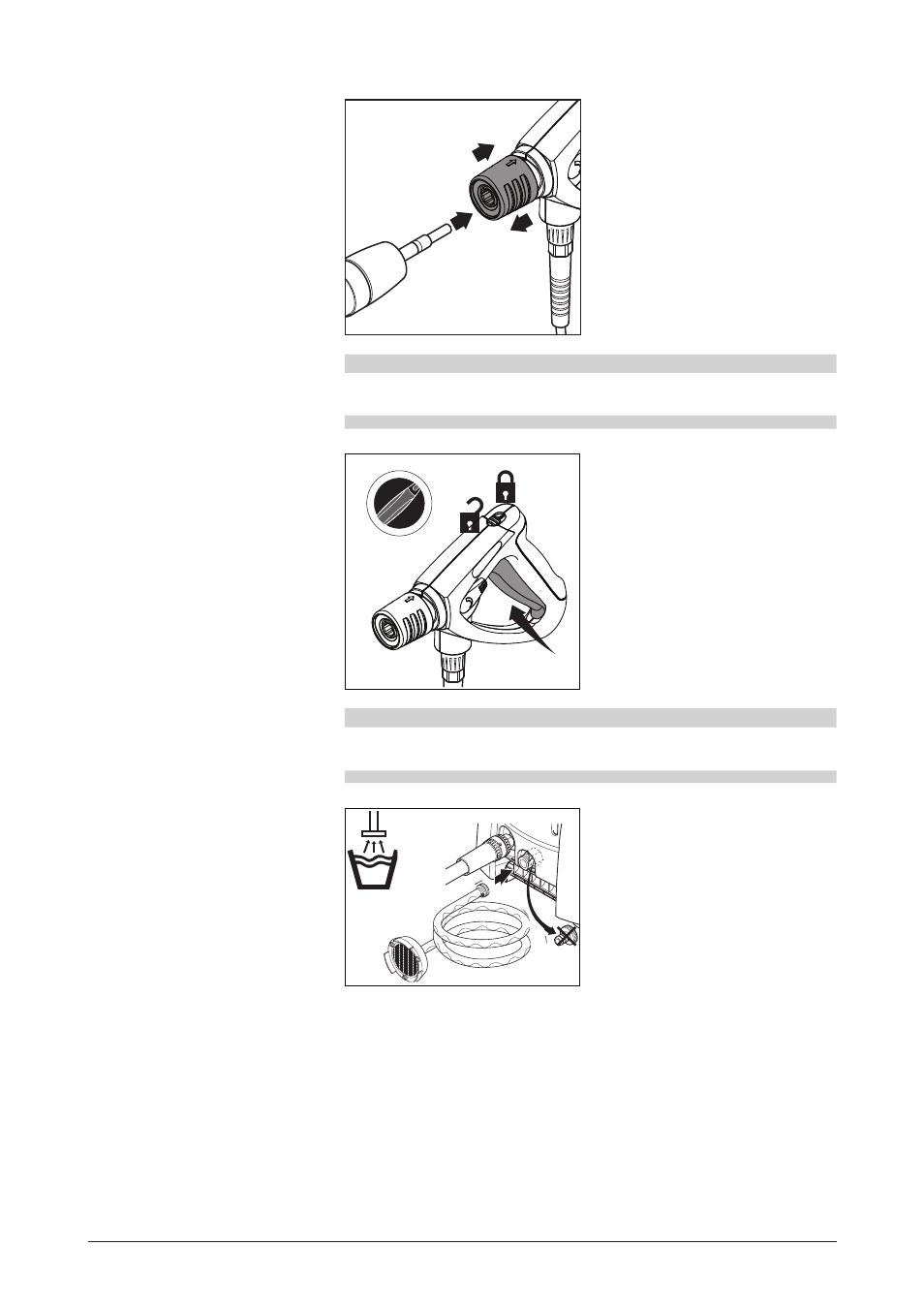

Connecting the spray lance to
the spray gun
Switching on the cleaner when
it is connected to a water
supply
Switching on the cleaner when
it is connected to open tanks
(suction mode)
A
C
B
1. Pull the blue quick-release
grip (A) of the spray gun
backwards.
2. Insert the nipple of the spray
lance (B) into the quick-re-
lease connection and release
it (C).
3. Pull the spray lance (or other
accessory) forwards to check
that it is securely attached to
the spray gun.
O
I
1. Main switch
Turn the switch to position „ I „.
2. Unlock the spray gun and
operate it.
3. Lock the spray gun even dur-
ing short pauses.
1. Before connecting the suction
hose to the cleaner, fill the
hose with water.
2. Main switch. Turn the switch
to position „ I „.
3. Unlock the spray gun and
operate it.
Max. suction height (primed) =
1m.
CAUTION
Always remove any dirt from the nipple before connecting the spray
lance to the spray gun.
CAUTION
Operate the spray gun several times at short intervals to vent the sys-
tem.
