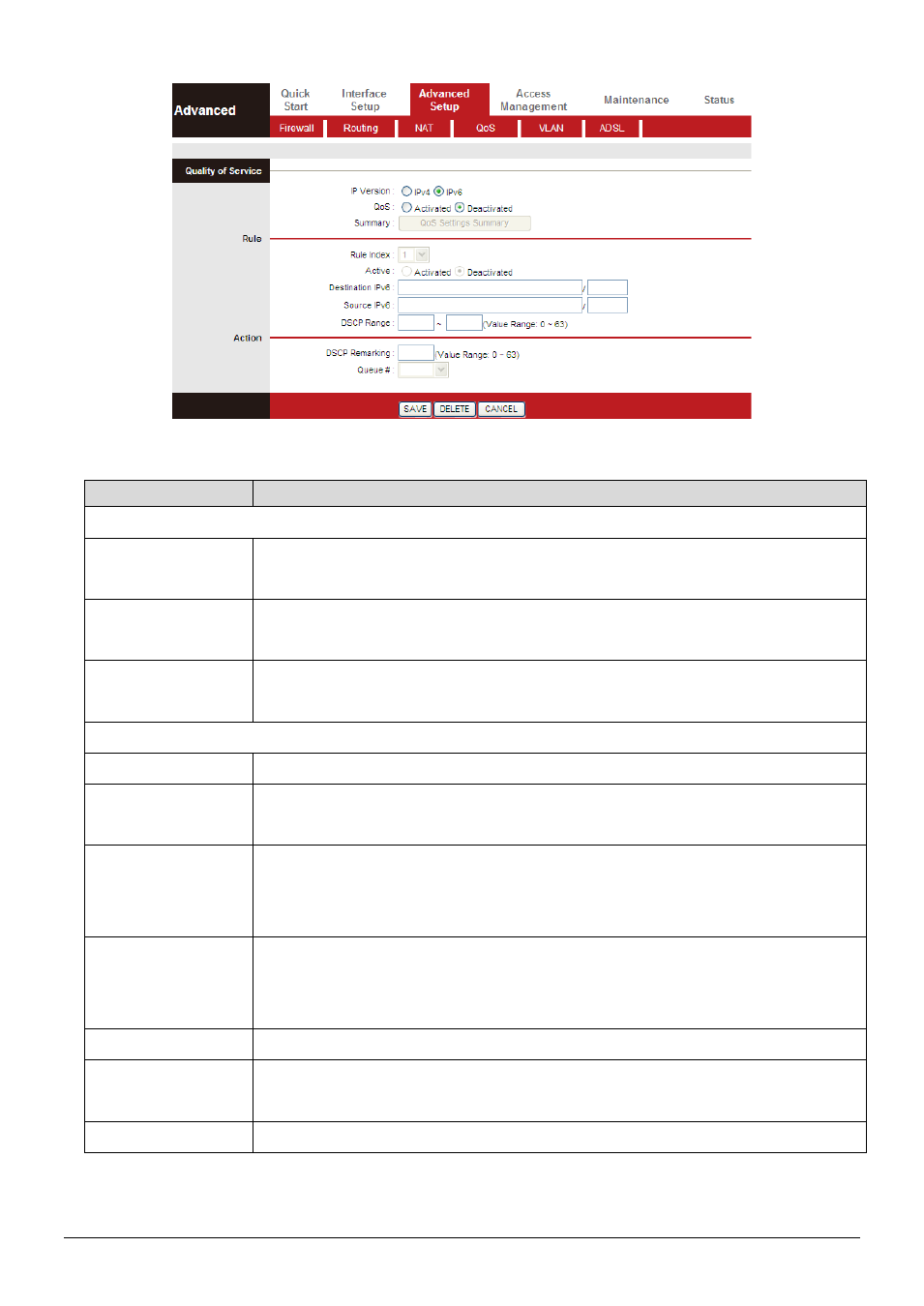

The following table describes the parameters of this page:
Field Description
Quality of Service
IP Version
Select IP version. In this example, the IP version is set to
IPv6.
QoS
Select Activated or Deactivated. After activating QoS, you
may set the upload bandwidth of the WAN interface.
Summary
Click the QoS Settings Summary button to view the table
of Qos rules and actions.
Rule
Rule Index
You may establish up to 16 QoS rules.
Active
You may select Activated or Deactivated. Activated must
be selected to set QoS rules.
Destination
IPv6
The Destination MAC address of the rule. If data packets
include the MAC address, the data packets are placed into
the group.
Source IPv6
The Source MAC address of the rule. If data packets include
the MAC address, the data packets are placed into the
group.
DSCP Range DSCP Range is from 0 to 63.
DSCP
Remarking For a message matching the QoS rule, its DSCP value will
be modified.
Queue # Select Low, Medium, High or Highest.
