Edimax Technology IR-123E User Manual
Page 3
2
PRODUCT INTRODUCTION
Package Contents
Before you start using this product, please check if there is anything missing
from the package:
1 x Network camera
1 x Power adapter
1 x Sun shield
2 x Screw
1 x CD (with utility software, user manual & multi-language QIG)
1 x Quick installation guide
1 x Bracket

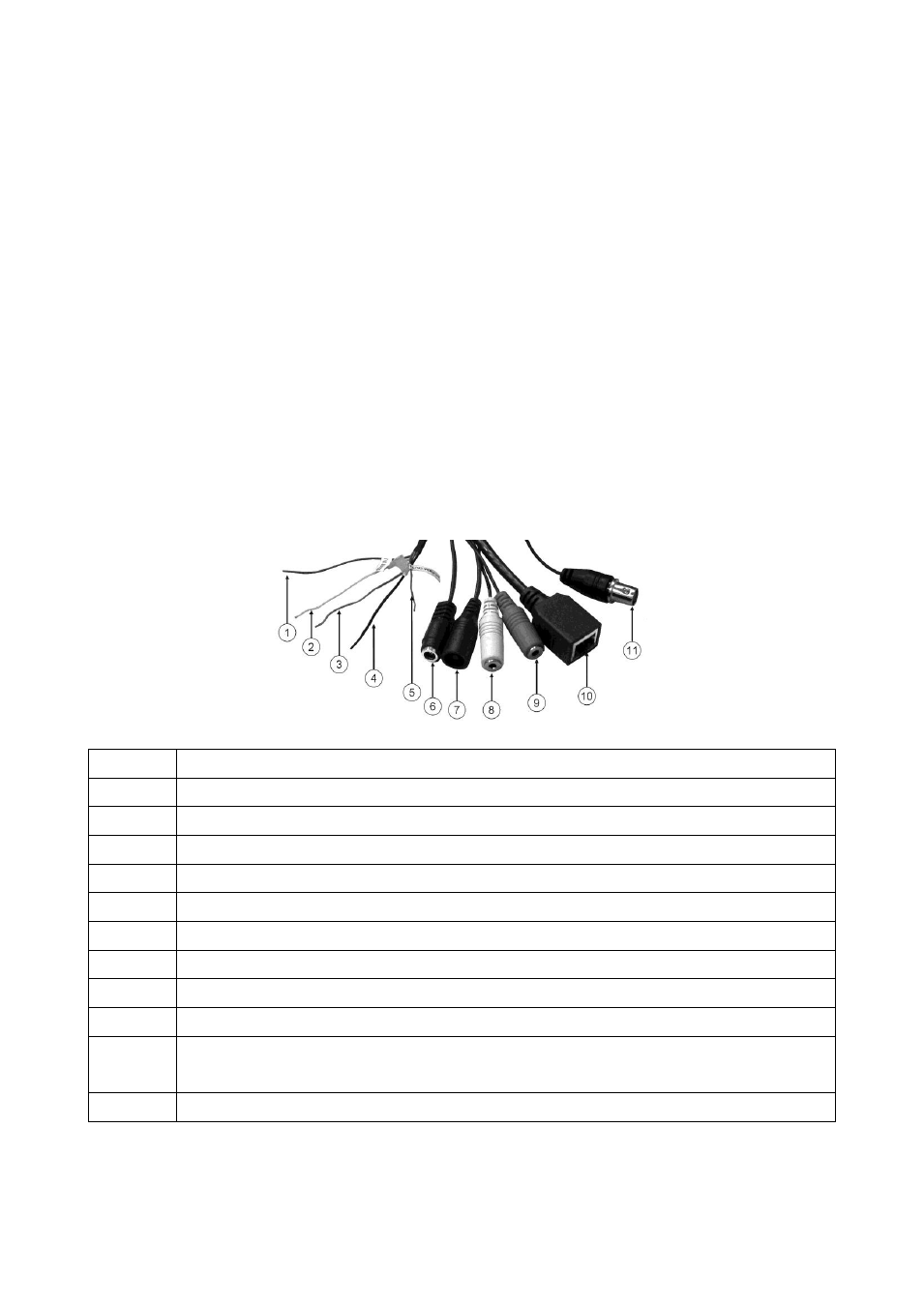

Connection Types
No.
Description
1
Blue, sensor in 1, for alarm input, DV 3.3 volt level allowed
2
Yellow, RS-485 D-
3
Orange, RS-485 D+
4
Black, GND
5
Green, alarm out 1, DV 3.3 volt level allowed
6
DC 12 volt 2A input
7
Reset button
8
Audio output
9
Audio input
10
RJ-45 network connector
LED indicators: power (orange), network (green)
11
TV output, BNC connector
Note: Please check the attached I/O cable index before inserting or
releasing any wire.
