Edimax Technology BR-6216Mg - Manual (Page 9)

9
Note: Please make sure that the Broadband router ’s DHCP server is the only DHCP server
available on your LAN.
Once you ’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3
2b) Windows XP
1: Click the Start button and select Settings, then click Network Connections. The Network
Connections window will appear.
2: Double-click Local Area Connection icon. The Local Area Connection window will
appear.
3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.

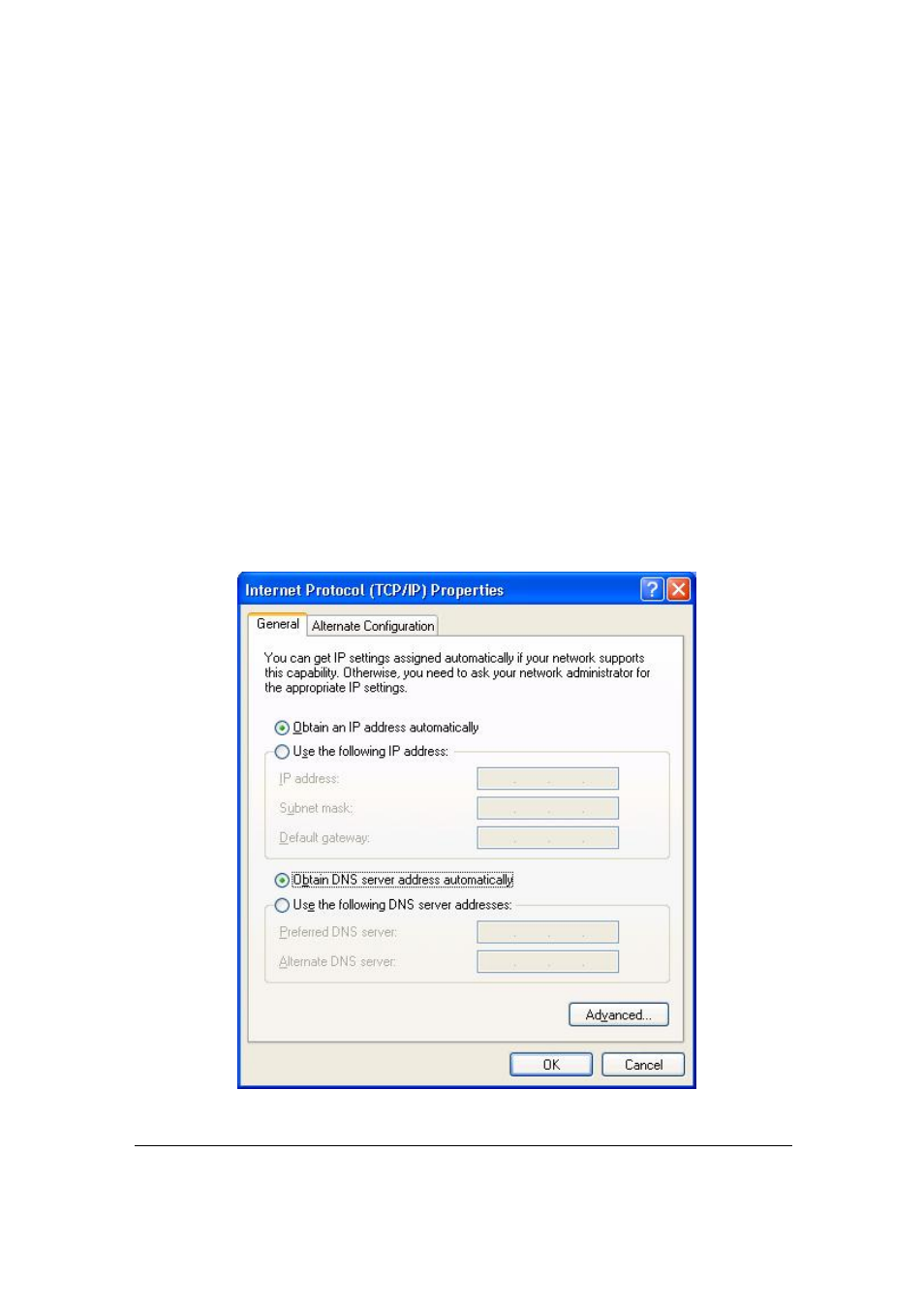

4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address
automatically and Obtain DNS server address automatically as shown on the following
screen.
5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically
from your Broadband Router ’s DHCP server.
