Front Panel

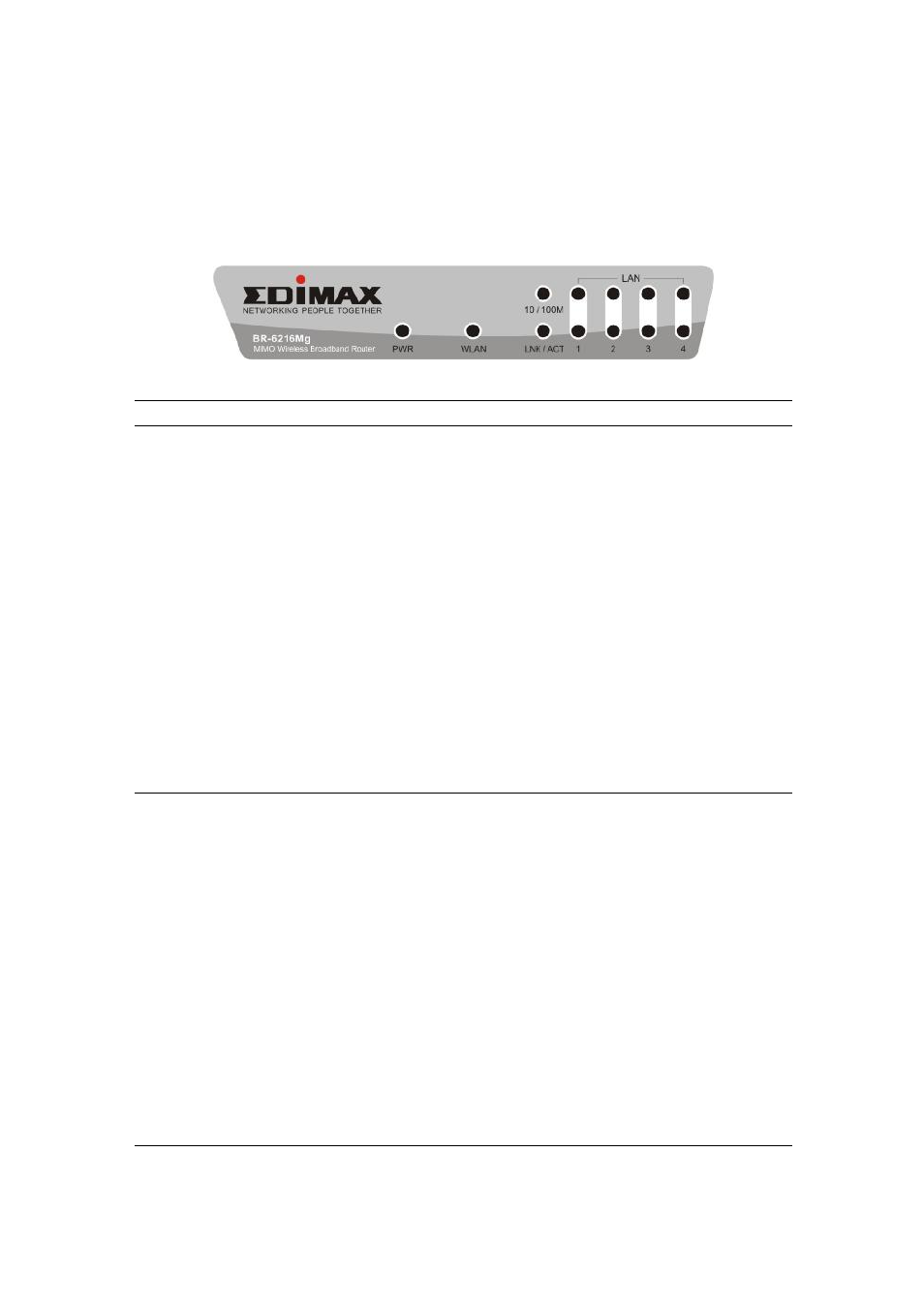

On the router ’s front panel there are LED lights that inform you of the router’s current status.
Below is an explanation of each LED and its description.
LED
Light Status Description
PWR
ON Router ’s power supply is on
WAN 10/100M
ON WAN port 100Mbps is connected
Off WAN port 10Mbps is connected
WAN LNK/ACT ON WAN is connected
Off No WAN connection
Flashing WAN port has Activity (ACT), data being sent
LAN 10/100M
ON LAN port 100Mbps is connected
(Port 1-4) Off LAN port 10Mbps is connected
LAN LNK/ACT ON LAN is connected
(Port 1-4) Off No LAN connection
Flashing LAN port has Activity (ACT), data being sent
WLAN-G
ON Wireless LAN has been activated
Off Wireless LAN is disabled
Flashing Wireless LAN has Activity (ACT) data being sent
