12

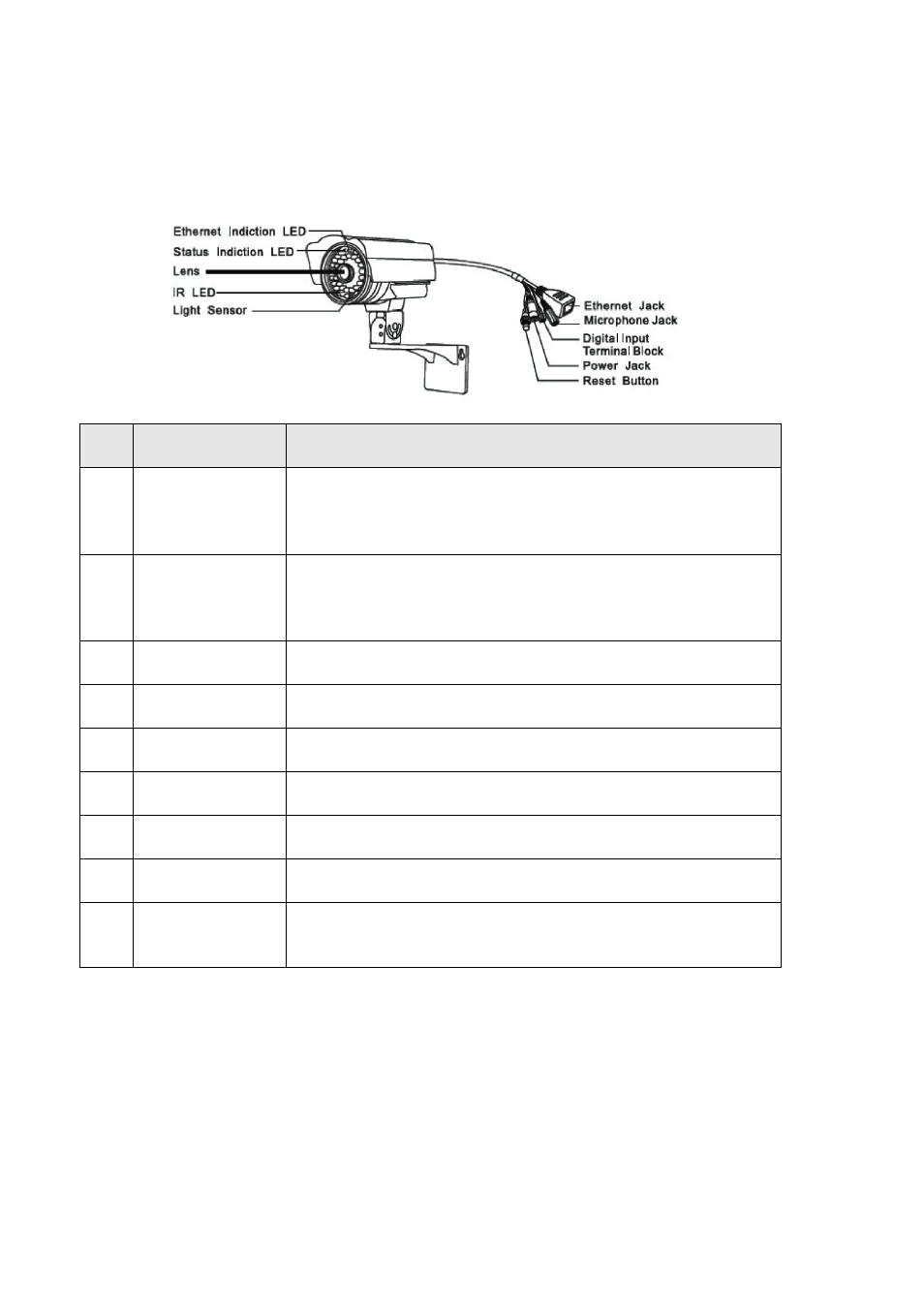

1-4 Familiar with the IC-9000
The IC-9000 is designed to be very easy to install and use. First, let’s see the major
components of the IP CAM products.
Item
No.
Name Description
1
Ethernet
Indication LED
(blue)
Indicates if the Ethernet link is ok and packet traffic is
sending/receiving. When the Ethernet cable is connected,
the LED is constant blue light. When there is packet
sending/receiving, the LED is blinking blue light.
2
Status
Indication LED
(red)
Indicates the Internet connection status. When the
Internet connection is connected, the LED will be constant
red light. If there is any Internet connection problem, the
LED will be blinking red light.
3 Lens
The focus of the lens is fixed. The effective focus range is
from 30cm to infinity.
4 IR LEDs
Totally 36 IR LEDs which can provide approximately 30m
distance night vision
5 Light Sensor
The light detector can detect when the light is becoming
dark and turn on the IR LEDs automatically
6 Ethernet Jack
10/100Mbps fast Ethernet port (Connects to your local
area network)
7
Digital Input
Terminal Block
This is for alarm detection, an open circuit is off, a close
circuit is on.
8 Power Jack
Connects to12V/1.0A power adapter. Please make sure
you are using the correct power adaptor
9 Reset Button
The button to reset the IP CAM to default factory settings.
You need to press the reset button for more than 4
seconds to enable the reset function.
