49
WPS: enable or disable WPS.
After enabling WPS, you can configure the parameters related to WPS.
WPS summary displays the preset WPS information, such as WPS current
status, WPS authentication mode, and WPS encryption type.
Click the Reset OOB button to display the WPS default settings.

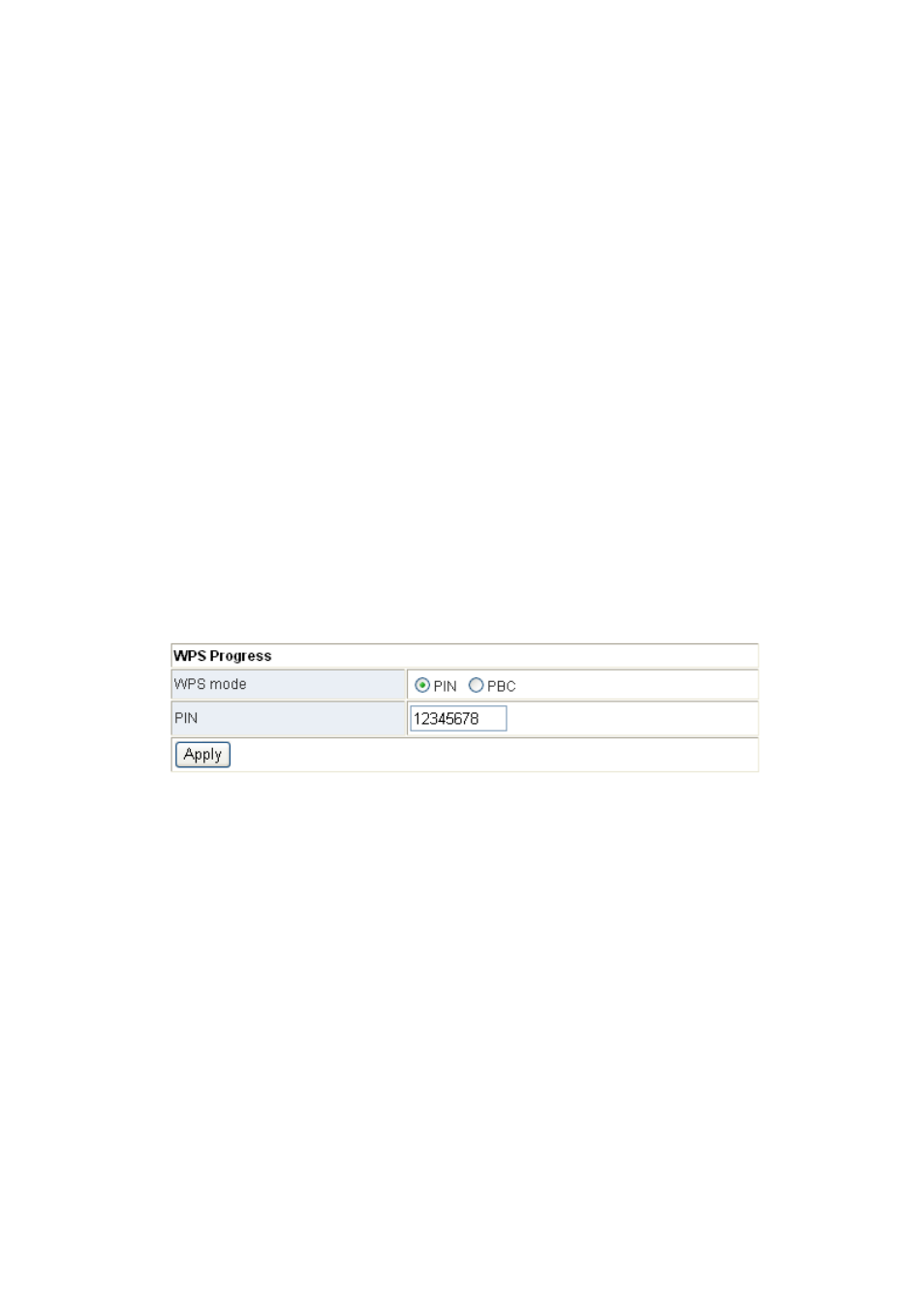

WPS Progress
WPS modes include PIN and PBC modes, At present, WPS supports three
operation modes, including Enrollee mode, Registrar mode, and PBC mode.
Enrollee and Registrar modes need to apply PIN code negotiation.
1) Enrollee Mode
Step 1
Select Enrollee mode on the wireless client, the software of wireless
client will generate a random PIN code, for example, 12345678.
Step 2
On the Wi-Fi Protected Setup page, enter the PIN code of wireless
client, for example, 12345678.
Step 3
Click the Apply button on the Wi-Fi Protected Setup page to submit
setting.
2) Registrar Mode
Step 1
View the AP PIN on the Wi-Fi Protected Setup page, for example,
31668729.
