User needs to configure TCP/IP network settings, Internet access configuration for each system within the Broadband
Router’s LAN network. By default, the Broadbnad Router acts as a DHCP server for server version of Windows, it
automatically assigns IP address to each system when systems boot up. For all non-server version of Windows, the
default TCP/IP setting acts as a DHCP client. If user chooses fixed IP addresses for client systems, the Gateway of
the client system must be set to the IP address of the Broadband Router and DNS of the client system should be set to
the address provided by your ISP.
2.1 TCP/IP Networking
Checking TCP/IP Settings for Windows 2000
a) Select “Start Æ Control Panel Æ Network and Dial-up Connection” and right click “Local Area
Connection” then click “Properties”,

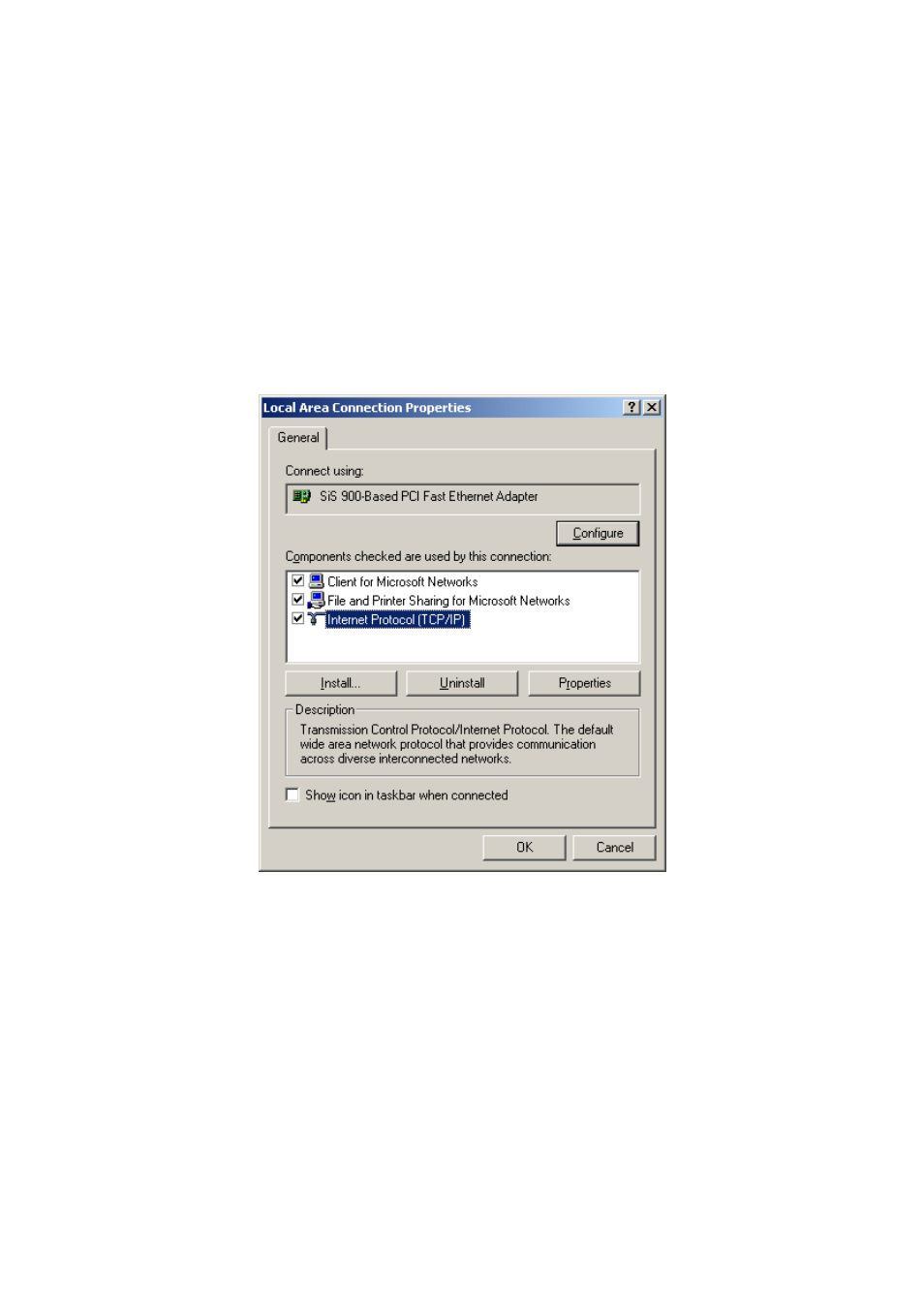

b) Select the “Internet Protocol (TCP/IP)” for the network card on your system, then click “Properties”, window
below will appear.
