- GSM Upgrade Kit Handbook
- For the following digital GSM telephones:
- Nokia 6100 series
- Nokia 8100 series
- Ericsson 600/700 series
- Copyright© 1999 3Com Corporation or its subsidiaries. All rights reserved. 3Com, the 3Com logo, H...
- 3Com Corporation and its subsidiaries assume no responsibility for any damage or loss resulting f...
- 3Com Corporation and its subsidiaries assume no responsibility for any loss or claims by third pa...
- Part Number: 405-0495-06A
- English 1
- Deutsch
- Français
- Español
- Italiano
- Introduction
- This GSM Upgrade Kit allows you to upgrade the software in your Palm V™ Modem or IBM® WorkPad® c3...
- Supported GSM Telephone Model Number
- GSM Upgrade Kit Number
- Nokia 5110, 5130, 5190, 6110, 6130, 6138, 6150, 6190
- 10424U
- Nokia 3110, 3210, 3810, 5130, 8110, 8148
- 10425U
- Ericsson CA638, CF688, CF768, CF788, GA628, GF768, GF768c, GF788, GH688, PF768
- 10426U
- The Modem Utility application in this GSM Upgrade Kit works only with the specified makes and mod...
- Note: Contact your telephone service provider if you are not sure you have digital GSM service.
- Your service provider can also verify that you have data and fax transmission service activated.
- Upgrade Kit contents
- In addition to this handbook, the GSM Upgrade Kit includes:
- GSM cable—connects your digital GSM telephone to your modem.
- CD-ROM—contains the Modem Utility application that upgrades the software on your modem so you can...
- System requirements
- To upgrade the software on your modem, the following components are needed:
- Palm V or IBM WorkPad c3 organizer.
- Microsoft® Windows 95®, Windows 98®, Windows NT®. If you have a Palm V organizer, you can also us...
- Palm Desktop 3.0 or later for Microsoft Windows. If you have a Palm V organizer, you can also use...
- Before you begin
- Before you begin to upgrade your modem, make sure:
- No cables are attached to your modem.
- The HotSync® Manager on your computer is active.
- The battery in your organizer is fully charged.
- The batteries in your modem are new.
- Instructions
- Upgrading your modem involves the following procedures:
- Installing the Modem Utility application onto your computer’s desktop (Microsoft Windows or Apple...
- Performing a HotSync operation to install the Modem Utility application onto your organizer.
- Starting the Modem Utility application to upgrade your modem.
- Deleting the Modem Utility application from your organizer.
- 1. Insert the Modem Utility CD-ROM into your computer’s CD-ROM drive.
- 2. On your computer, copy the Modem Utility application into the add-on folder in the Palm direct...
- 3. On your computer’s taskbar, click Start>Programs>Palm Desktop>Palm Desktop.
- The Palm Desktop window opens.
- 4. Click Install.
- The Palm Install Tool dialog box opens.
- 5. If necessary, click the down arrow and select your correct User name.
- 6. Click Add.
- The Open dialog box opens.
- 7. Select Modem Utility from the add-on folder, then click Open.
- The Modem Utility application will appear in the Palm Install Tool menu.
- 8. Click Done.
- The Palm Install Tool message box opens.
- 9. Click OK.
- 10. Perform a HotSync operation by placing the organizer into the cradle and pressing the HotSync...
- 1. Insert the Modem Utility CD-ROM into your computer’s CD-ROM drive.
- 2. In the Palm folder, choose HotSync Manager.
- The HotSync Manager window opens.
- 3. If necessary, open the Users menu to select your correct User name.
- 4. On the HotSync menu, choose Install.
- The Install Handheld Files dialog box opens.
- 5. Click Add to List.
- The standard Macintosh file navigation dialog box opens.
- 6. Select Modem Utility.
- 7. Click the Add File button.
- 8. Perform a HotSync operation by placing the organizer into the cradle and pressing the HotSync ...
- 1. Connect your organizer to the modem.
- 2. Make sure that:
- The organizer is securely attached to the modem.
- No cables are attached to the modem.
- The battery in the organizer is fully charged.
- The batteries in the modem are new.
- 3. Tap the Applications icon on your organizer.
- 4. Tap the Modem Util icon .
- The first Modem Utility window opens.
- 5. Select the language in which you want to view the Modem Utility screens, then tap OK.
- 6. Follow the instructions that appear on the subsequent screens to finish running the Modem Util...
- Connecting your GSM cable to your digital GSM telephone and to the modem

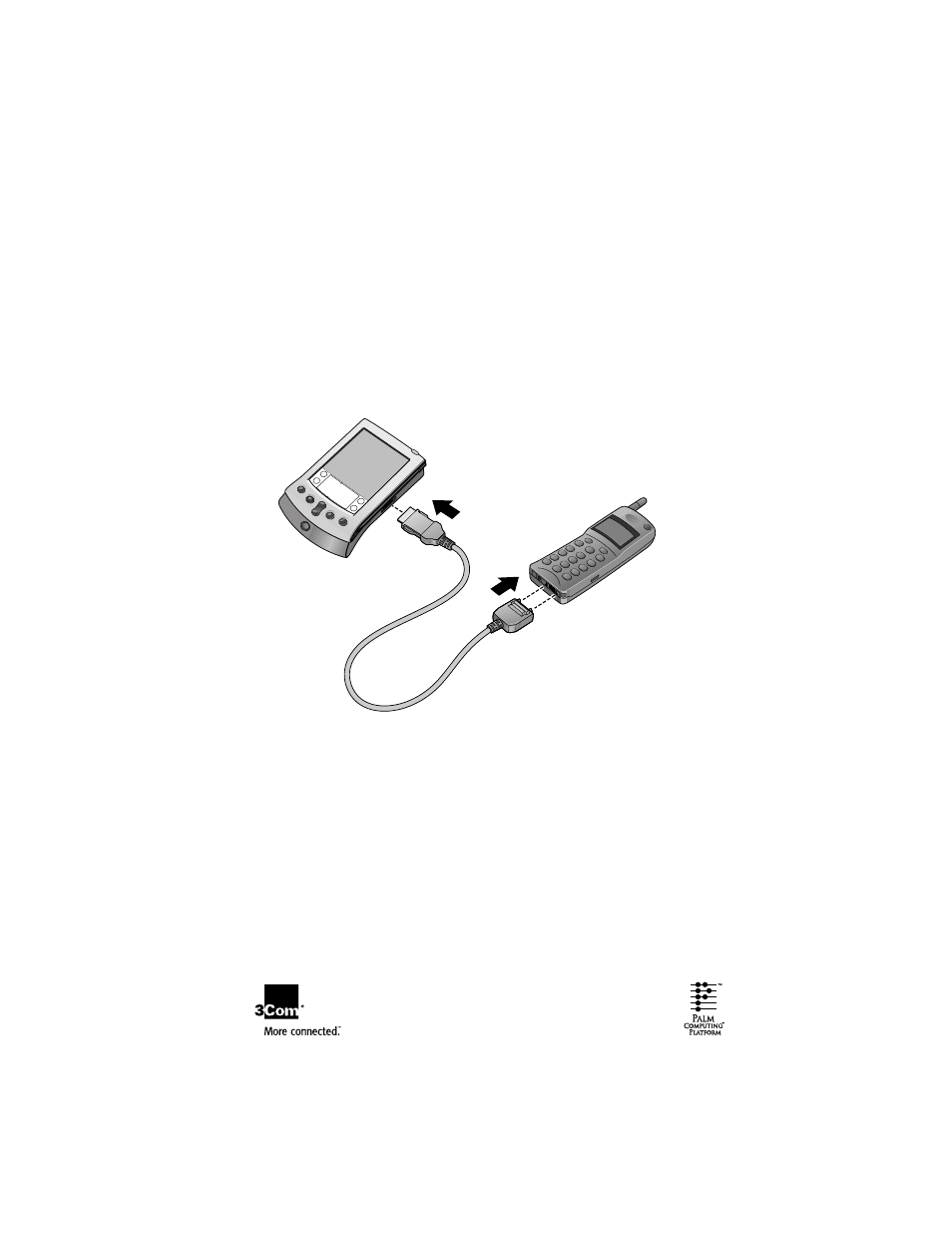

- 1. Connect the GSM cable to your digital GSM telephone and to your modem, as shown below. Make su...
- Note: Press the two clips on the modem connector before inserting or removing the cable, as shown...
- 2. Turn your digital GSM telephone on.
- When your digital GSM telephone is connected to the modem, the modem automatically switches into ...
- Note: Refer to your modem handbook for instructions on configuring your modem and for a list of s...
- Deleting the Modem Utility application
- Once you have upgraded the modem software, you should delete the Modem Utility application to inc...
- 1. Tap the Applications icon on your organizer.
- 2. Tap the Menu icon .
- 3. Tap Delete on the App menu.
- A list of all applications that can be deleted is displayed.
- 4. Tap Modem Util.
- 5. Tap Delete.
- A verification screen opens.
- 6. Tap Yes.
- 7. Tap Done.
- Troubleshooting
- If you see the following error message, the serial port on your organizer is being used by anothe...
- Unable to initiate HotSync because the serial port is in use by another application.
- Use the reset tip tool, or the tip of an unfolded paper clip (or a similar object that doesn’t ha...
- If you are having difficulty connecting to your digital GSM telephone:
- Check that all cables are securely attached.
- Contact your telephone service provider to confirm you have separate telephone numbers for data a...
