Serial mouse – 3M MP8640 User Manual
Page 22
3M
™
Multimedia Projector MP8640
© 3M 1997
Serial mouse
5.3 Connection to the Control Signal Terminal (continued)
b.

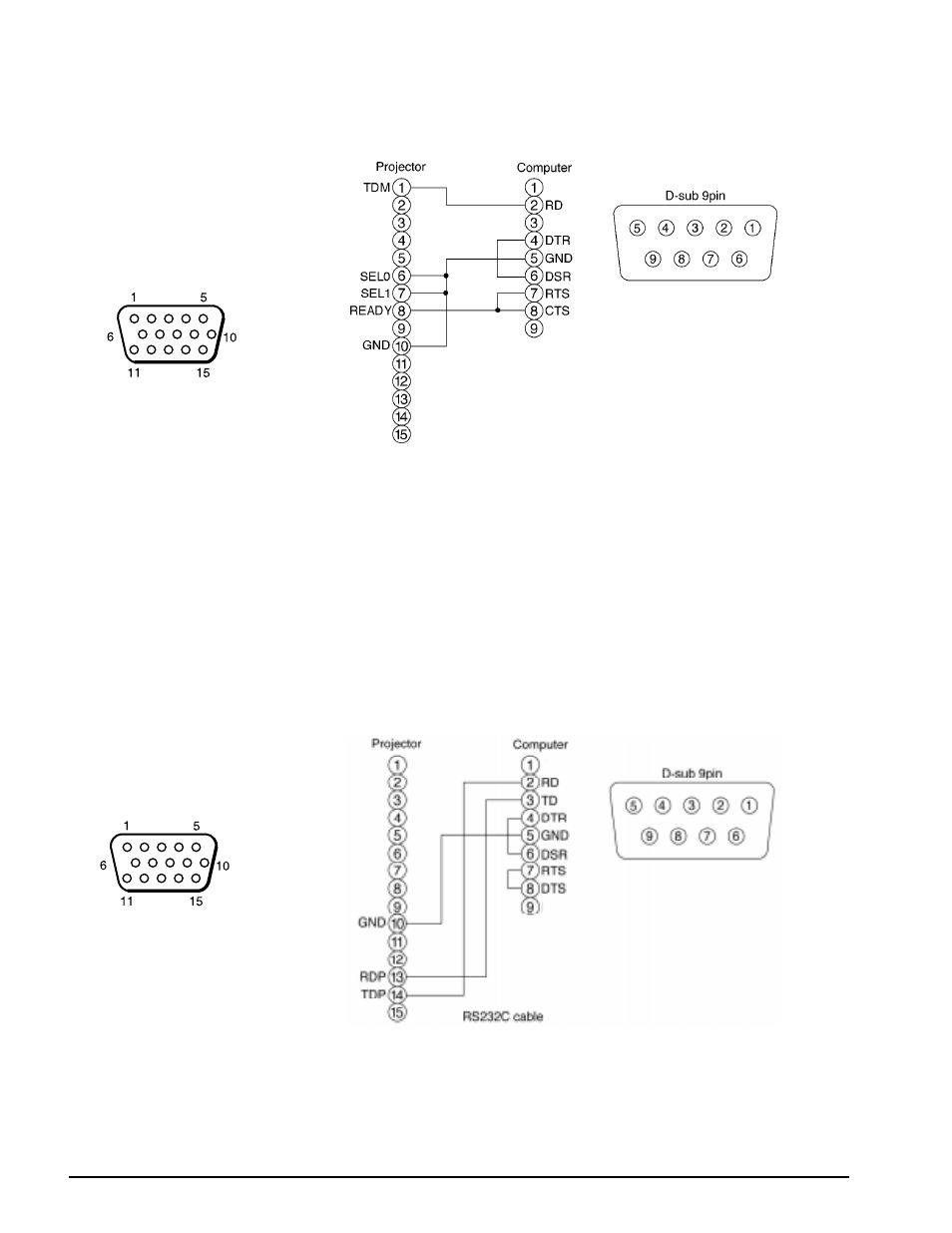

RS 232 Control Cable (not included with basic packout)
This cable is used to directly control the projector without using the Remote Control or Operator's Panel.
D-sub 15pin (Female)
D-sub 15pin (Female)
Serial Mouse cable
RS-232 cable
22
(male)
(male)
