English

-12

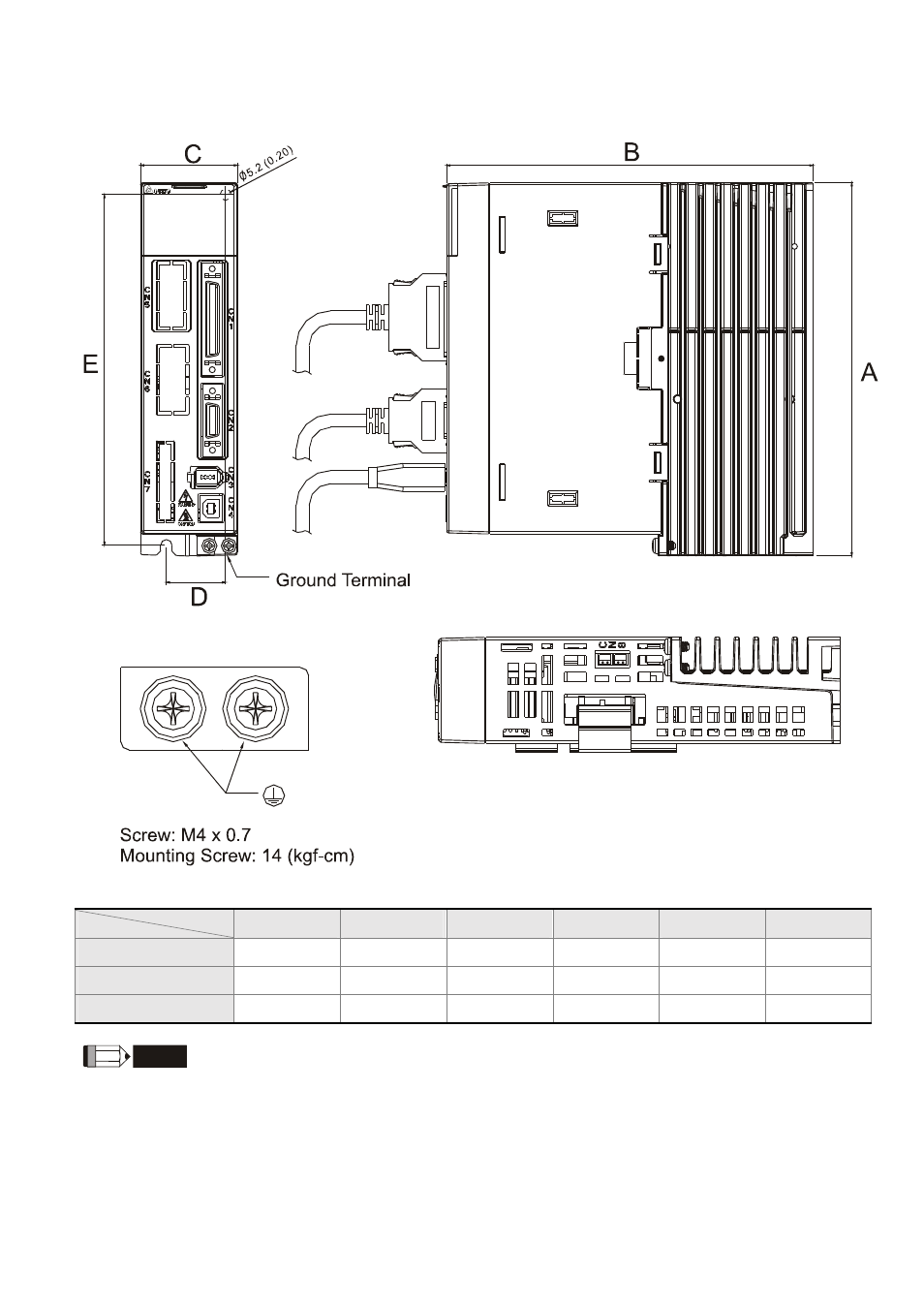

Servo Drive Dimensions

A

B

C

D

E

Weight

200W ~ 400W

173 (6.81)

170 (6.69)

45 (1.77)

27.5 (1.08)

163 (6.42)

1.5 (3.3)

750W ~ 1.5kW

173 (6.81)

180 (7.09)

65 (2.56)

47 (1.83)

163 (6.42)

2.0 (4.4)

2kW ~ 3kW

216 (8.50)

203 (7.99)

82 (3.23)

62 (2.44)

203 (7.99)

2.89 (6.36)

NOTE

1) Dimensions are in millimeters and (inches).

2) Weights are in kilograms and (pounds).

3) For the actual appearance, please refer to the actual purchased product.

4) In this quick start, actual measured values are in metric units. The units in (imperial

units) are for reference only. Please use metric for precise measurements.
