Chapter 4 Installation and
Debugging
4-6

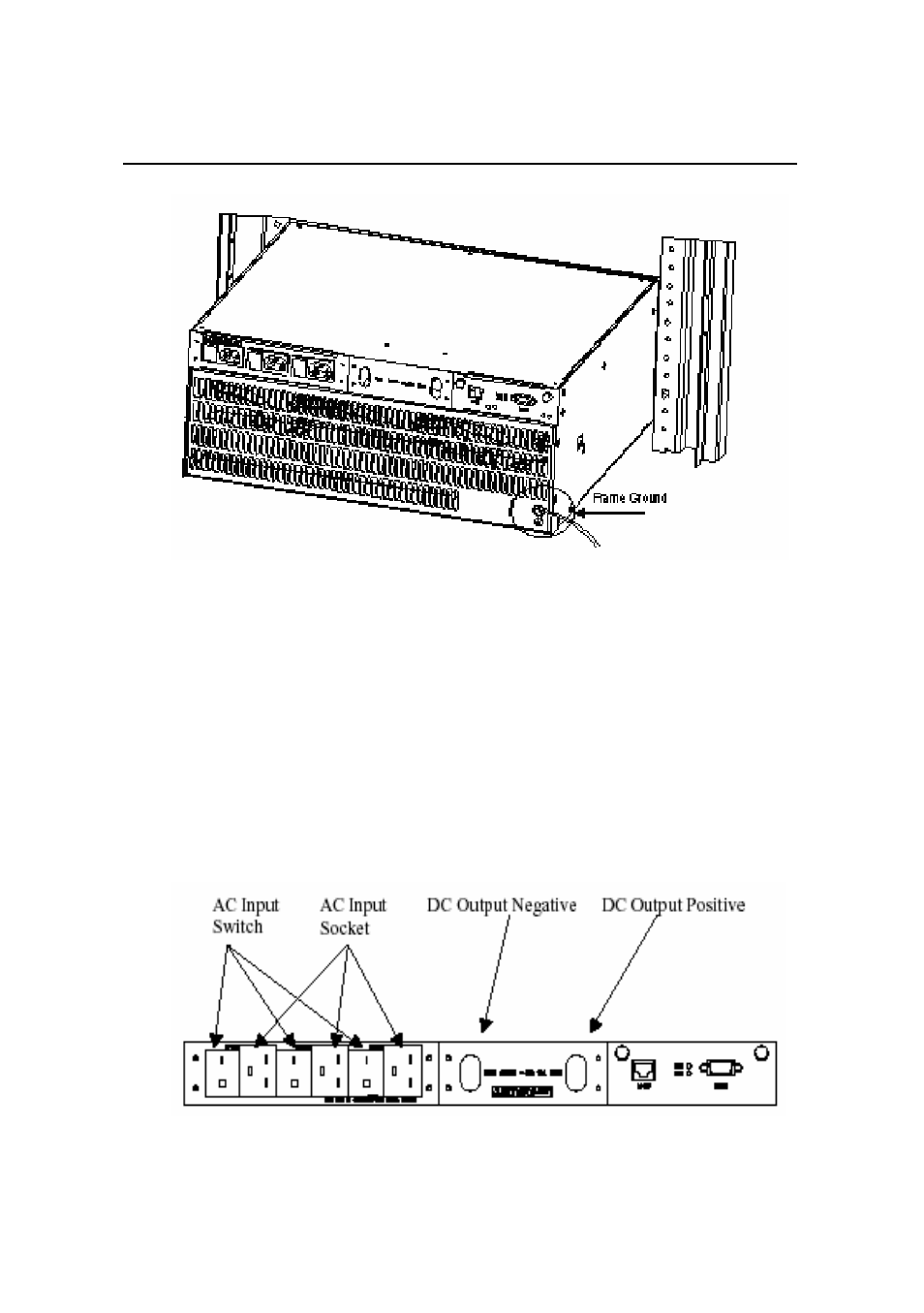

Figure 4-3 Frame grounding
4.5 Load Connections
All the load connections must be connected to the OT type
terminal of the device’s output cable. The positive load cable must be
connected to load positive terminal and the negative load cable must
be connected to load negative terminal. Choose the appropriate size
cables based on load currents.
Figure 4-4 Load connections
