Link the Workstation to the ER
The procedures outlined in this sub-section require the use of the CAT-5E crossover
cable.
A. Plug one end of the CAT-5E crossover cable into the ER’s LAN 1 port.
B. Plug the other end of the CAT-5E crossover cable into the setup workstation’s net-
work card.
NOTE: If a CAT-5E coupler was packaged with your unit, this coupler can be
used if the crossover cable is not long enough for your setup. Plug one end of the
CAT-5E crossover cable into the ER, and the other end into the coupler. Plug a
standard CAT-5E cable into the other end of the coupler, and the free end of the
standard CAT-5E cable into the setup workstation.

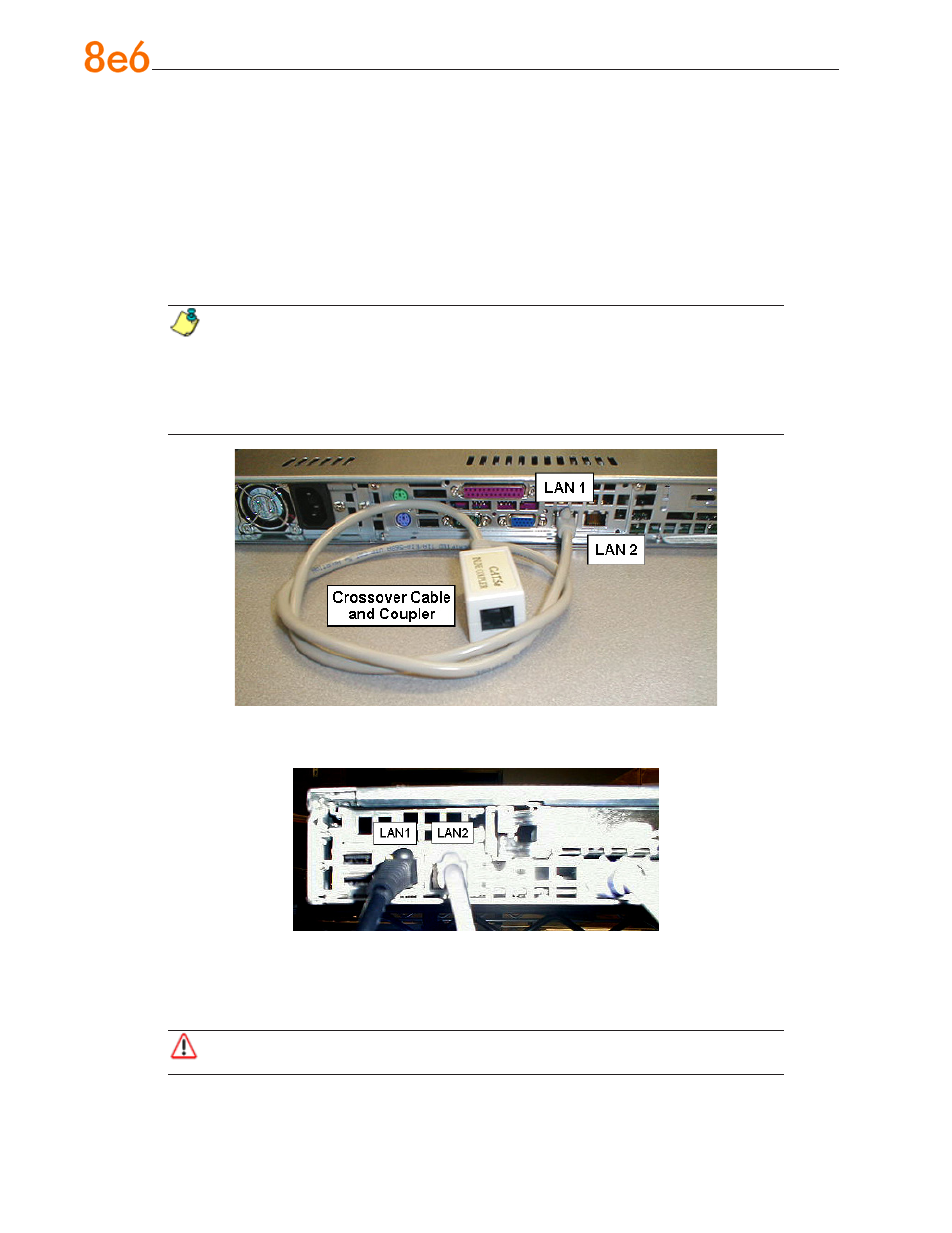

Back of the non-ER “H” server
Back of the ER “H” server
C. Plug the ER into a power source with an appropriate rating.
WARNING: It is strongly suggested you use an uninterruptible power supply.
