Electrical connection
A type H05VV–F or higher quality lead must be used
for the mains connection.
The mains connection terminal is on the bottom of the
appliance behind a cover.

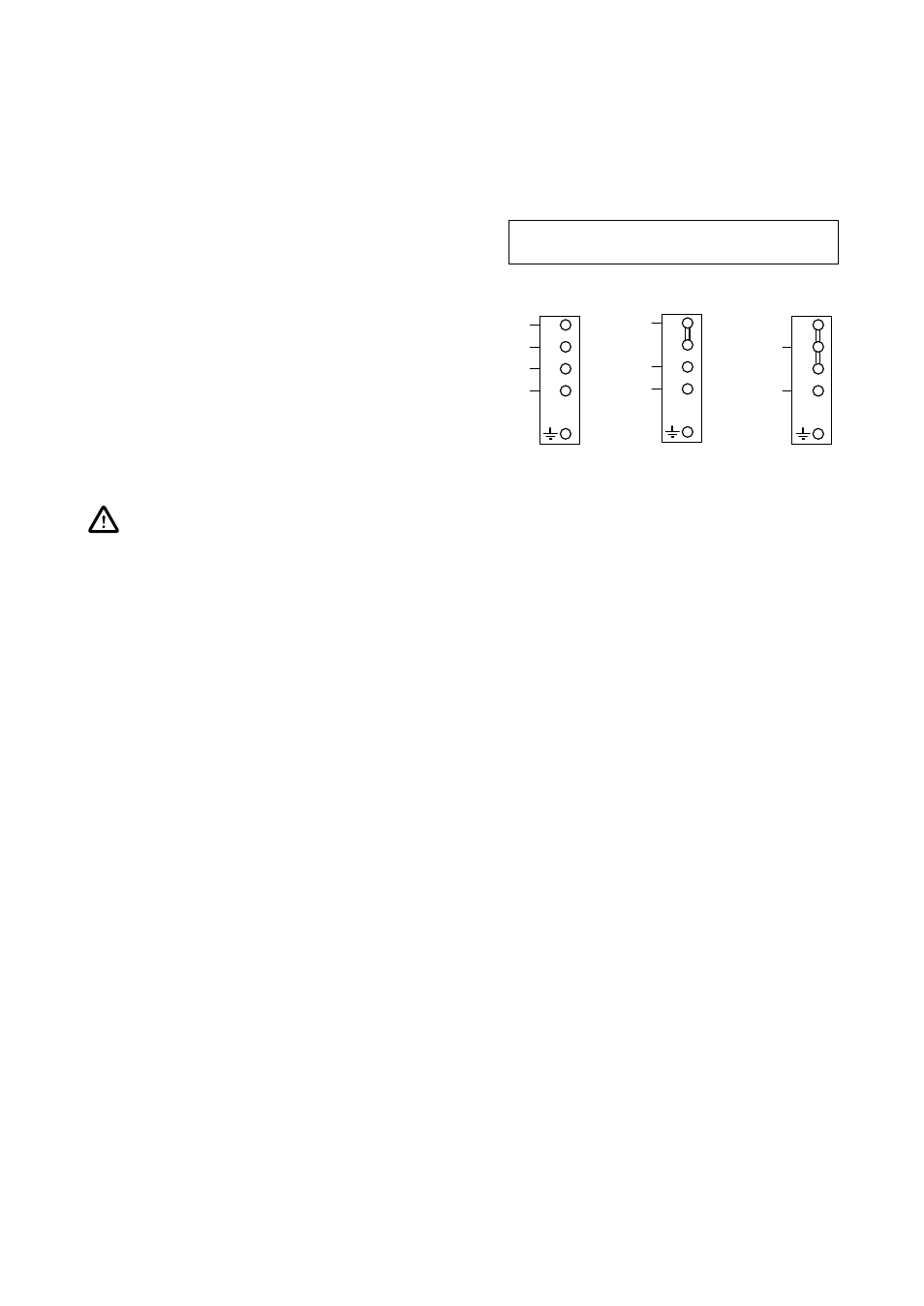

The cooking appliance should be connected as shown
on the connection diagram, depending on the mains
supply voltage.
The earth lead is connected to the terminal, the earth
wire must be longer than the live wires.
If necessary, you can rearrange the bridges on the ter-
minal strip accordingly.
The cable connections must be fixed in accordance
with the regulations and the clamping screws securely
tightened.
The connection lead should finally be secured with the
cord grip.
Once the appliance has been connected to the
mains, switch on all cooking zones one after
the other for approx. 30 seconds at the maxi-
mum setting to check they are working cor-
rectly.
230 V
N
L3
L2
L1
PE
5
4
3
2
1
400 V 3N ~
5
4
3
2
1
N
L2
L1
PE
400 V 2N ~
PE
L (L1)
N (L2)
5
4
3
2
1
230 V ~
(230 V 2 ~)
Komponenten–Spannung:
Component Voltage:
UK
only
