Installing into a kitĆ
chen worksurface
Make a note of the serial number on the ap-
pliance rating plate prior to installation. This
number will be required in the case of requests
for service and is no longer accessible after in-
stallation, as it is on the original rating plate on
the underside of the appliance.
Installation
1. Cut out the worktop according to the dimensions
quoted (Fig.1). (Saw exactly along the line.)
2. Fix according to Fig. 2
Position A must be used for screwing–on the catch
springs (Fig.1).
Important: The screw must be driven into the worktop
as illustrated.
Avoid overtightening. Do not use electric or pneu-
matic screwdrivers unless they have, adjustable
slipping clutches (set to 1–1.1 Nm).
3. Check the sealing for proper fit and full contact.
4. Place the ceramic hob in the cut–out.
A

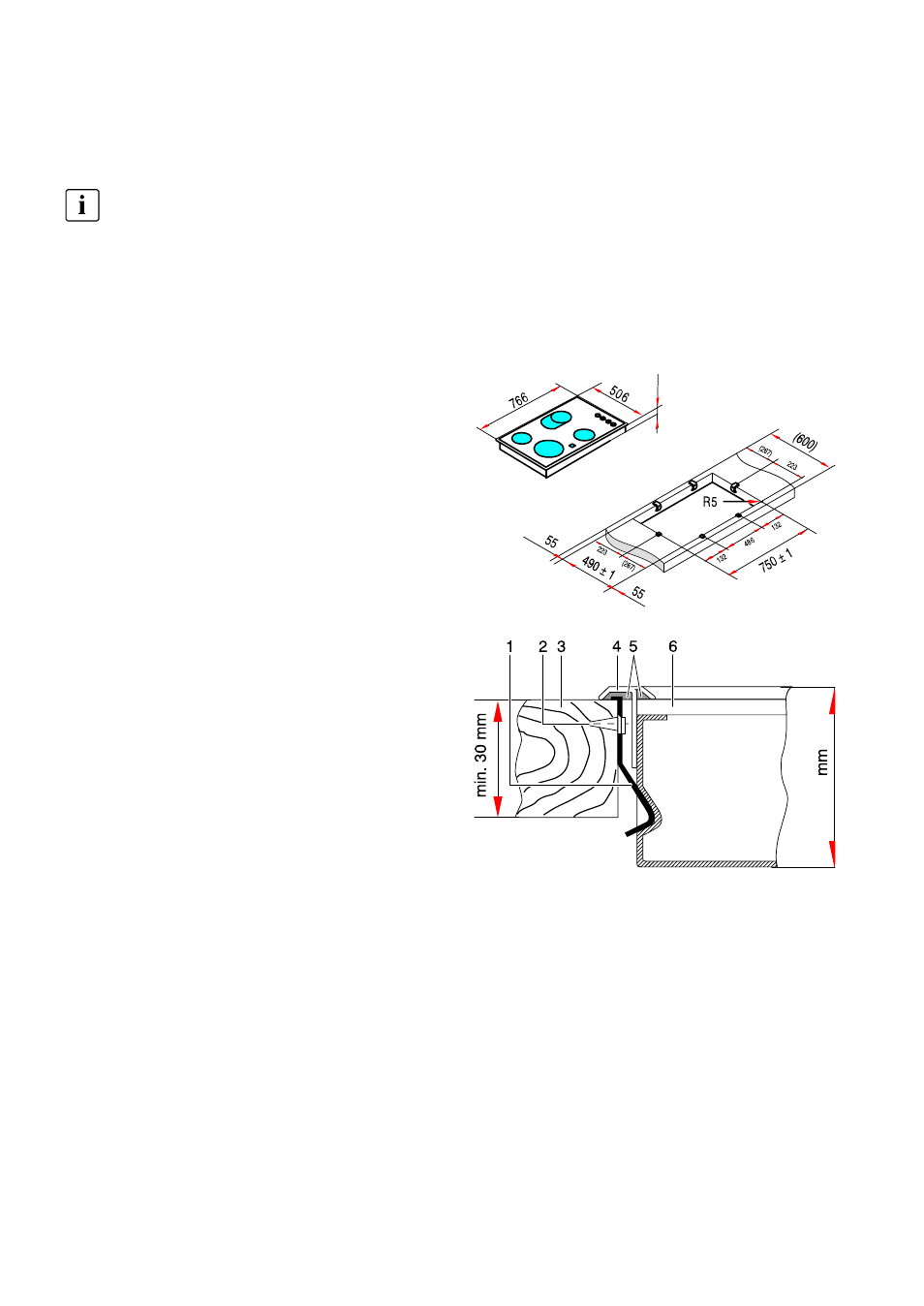

fig.1
49
A
A
A A
A
fig.2
ЦЦЦЦЦЦЦЦ
ЦЦЦЦЦЦЦЦ
49
1 Catch spring
2 Screws
3 Worktop 4 Frame
5 Sealing tape
6 Glass ceramic plate
