P-660H-D Series Quick Start Guide
2
Overview
The P-660H-D is an ADSL router with a four-port built-in switch.
See your User’s Guide for background information on all features.
How to use the included CD
This CD provides multi-media animations that help you set up your P-660H-D.
1 On the included CD, click Multimedia Auto Provisioner > Installation Tutorial.
2 At the end of the tutorial, click Configuration Genie.

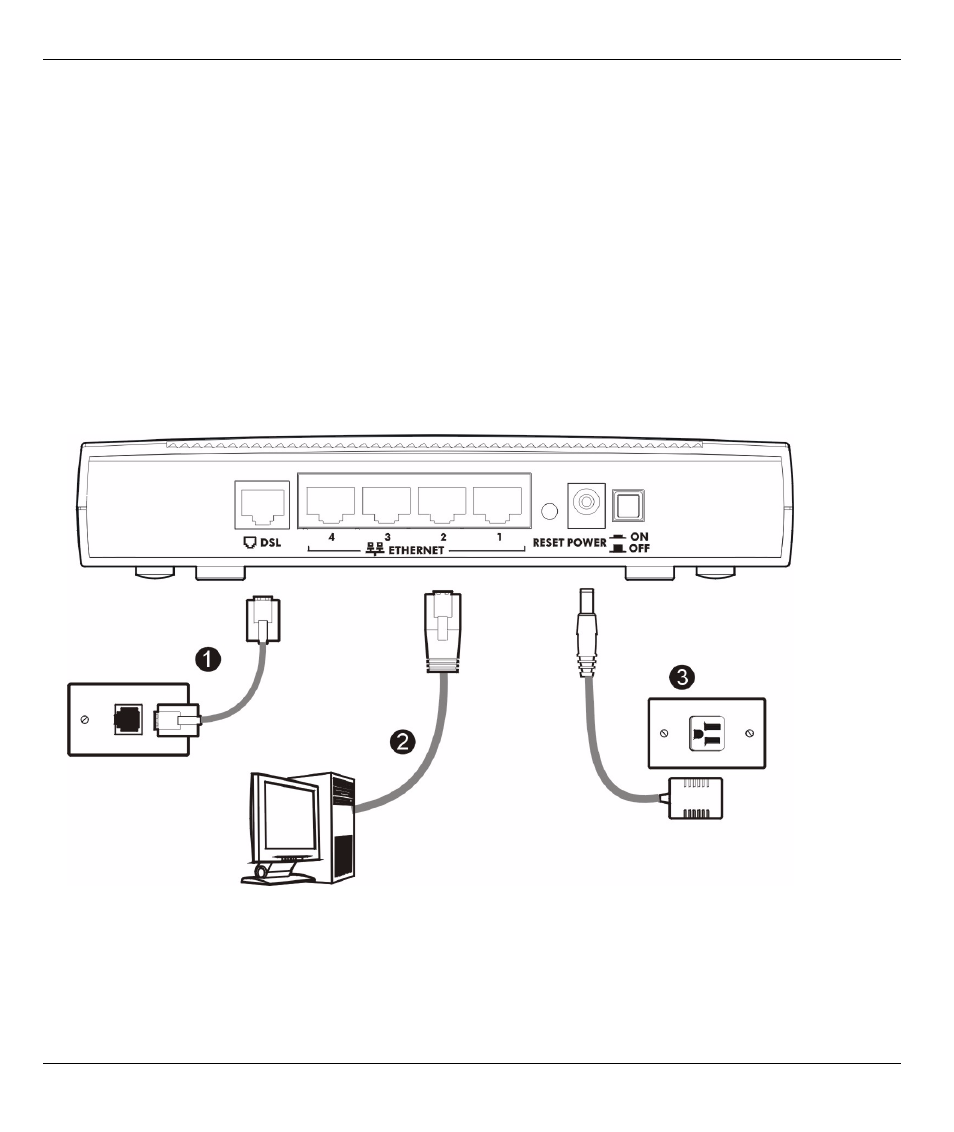

1 Hardware Connections
If you prefer to see a multi-media animation of how to make hardware connections, see the installation tutorial
on the included CD.
1 DSL: Use a telephone wire to connect your P-660H-D’s DSL port to a telephone jack (or to a splitter, if one
is already installed).
2 ETHERNET: Use an Ethernet cable to connect a computer to the ETHERNET port for initial configuration
and/or Internet access.
