■ Placing the Satellite Speakers
You can place the satellite speakers on a rack, or attach them to a wall. Please select an installation method that suits your
room layout.
y
You can attach the satellite speaker to a commercially available speaker bracket or speaker stand using the screw holes on the bottom of
the speakers. In this case, be sure to use 6M (diameter of 6 mm) screws.

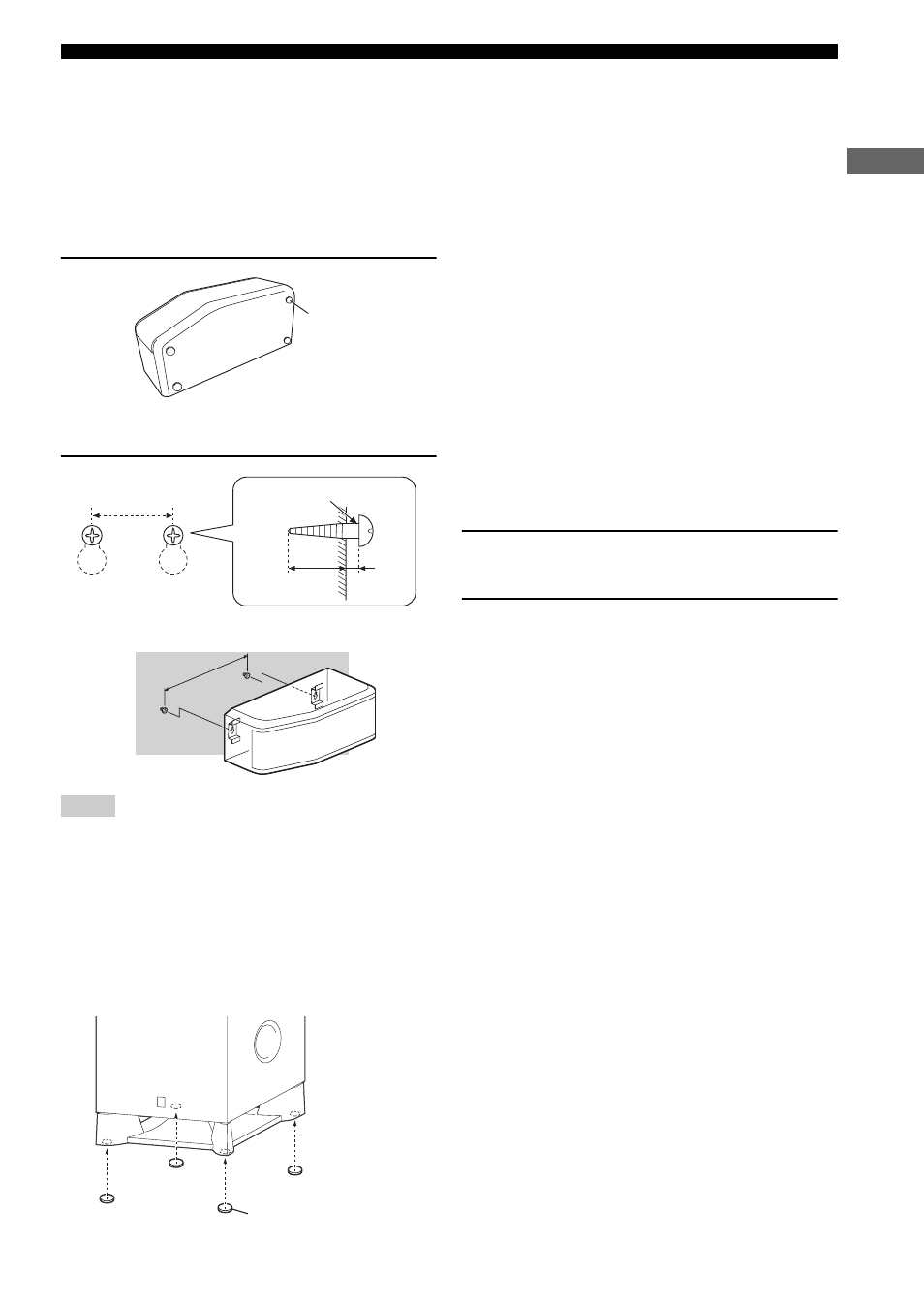

To place on a rack
Attach the non-skid pads (small) to the bottom of
each speaker, and then place them on level hard
surfaces.
y
Using non-skid pads prevents the speakers from sliding when
they vibrate, and ensures quality sound production.
To attach to a wall
You can attach the speakers to a wall using commercially
available screws (Diameter: 3.5 to 4 mm (1/8” to 5/32”), Length:
24 mm (15/16”) or more). One speaker requires two screws.
1
Install two screws in the wall where you want
to place the speaker.
2
Hang the speaker on the screws using the
holes in the back of the speaker.
• One speaker weighs about 1.4 kg (3 lbs 3 oz). To attach a speaker to a wall using screws, the wall must be firm. Do not attach a speaker
to a wall that is made of weak materials such as plaster or veneered woods. Doing so may cause the speaker to fall.
• Make sure you use specified screws to attach a speaker to a wall. Using clamps other than specified screws, such as short screws, nails,
or two-sided tape, may cause the speaker to fall.
• When connecting the speakers, fix the speaker cables in place so that cables do not loosen. If your foot or hand accidentally gets
caught on a loose speaker cable, the speaker may fall.
• After attaching each speaker, check that the speaker is fixed securely. YAMAHA will bear no responsibility for any accidents caused
by improper installations.
■ Placing the subwoofer
Attach the non-skid pads (large) to the bottom of
the subwoofer, and then place the subwoofer on
a level hard floor.
y
Using non-skid pads prevents the subwoofer from sliding when it
vibrates, and ensures quality sound production.
Non-skid pad
(small)
198 mm
(7-25/32”)
20 mm (25/32”)
or more 4 mm
(5/32”)
198 mm (7-25/32”)
Diameter of 3.5 to 4 mm
(1/8” to 5/32”)
Notes
Non-skid pad (large)
