ADDITIONAL INFORMATION
If you cannot adjust the orientation of the virtual surround speakers well (page 16), use the following information for
reference.
To create better acoustic field, you may need to change the arrangement of the satellite speakers or furniture.

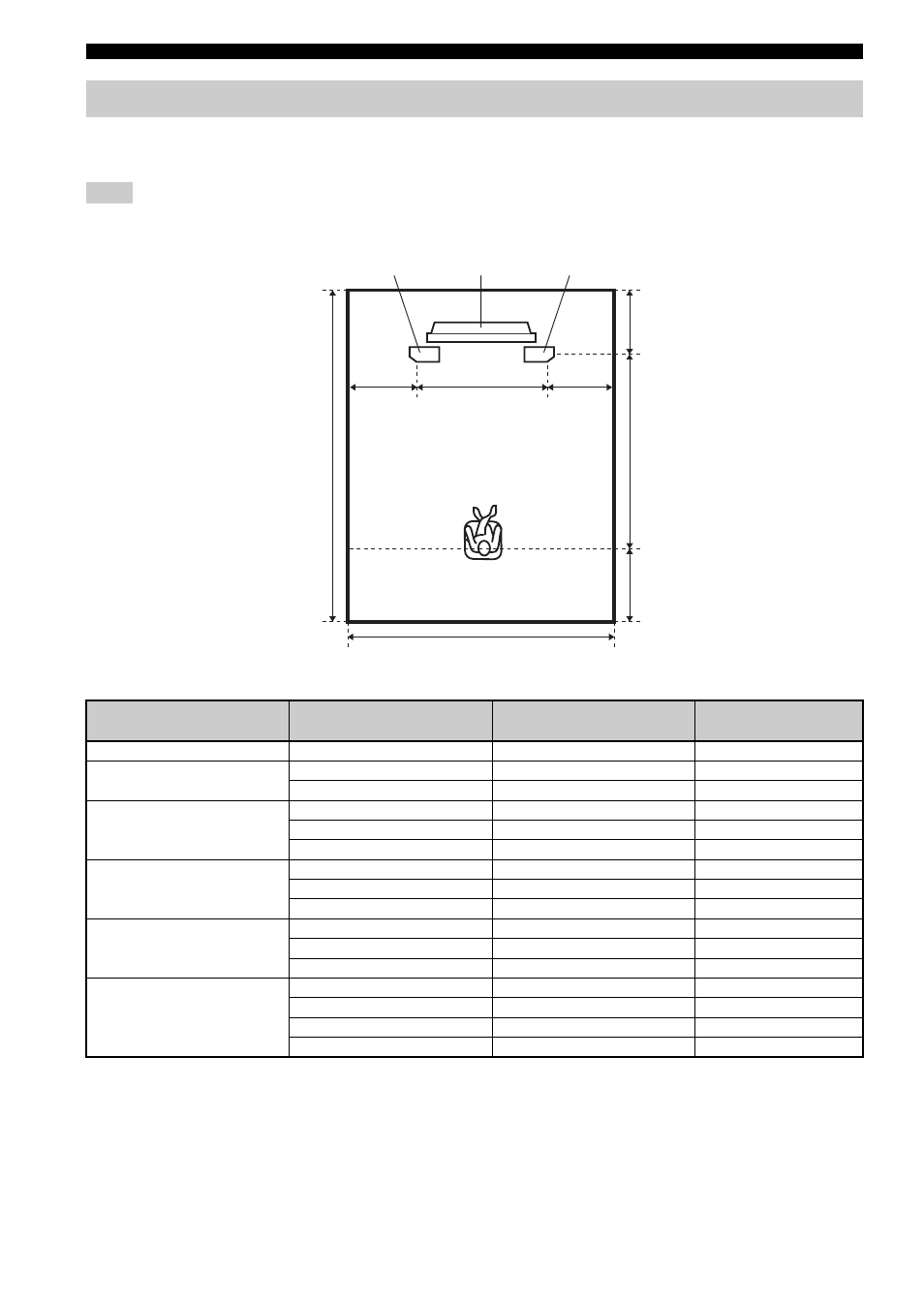

Recommended Virtual Surround Speaker Settings
Note
Room size:
(Length 1 × Width 2) Distance of satellite speakers
and side walls: 3 and 4 Distance of satellite speakers
and listening position: 5
Recommended setting
2.7 m × 2.7 m (8.8 ft × 8.8 ft) 0.8 m (2.6 ft) 1.4 m (4.6 ft) 30°
3.6 m × 2.7 m (11.8 ft × 8.8 ft)
0.8 m (2.6 ft) 1.4 m (4.6 ft) 30°
0.8 m (2.6 ft) 2.2 m (7.2 ft) 20°
2.7 m × 3.6 m (8.8 ft × 11.8 ft)
0.8 m (2.6 ft) 1.4 m (4.6 ft) 30°
1.2 m (3.9 ft) 1.4 m (4.6 ft) 40°
1.6 m (5.2 ft) 1.3 m (4.3 ft) 50°
3.6 m × 3.6 m (11.8 ft × 11.8 ft)
0.8 m (2.6 ft) 2.2 m (7.2 ft) 20°
1.2 m (3.9 ft) 2.1 m (6.9 ft) 30°
1.6 m (5.2 ft) 1.9 m (6.2 ft) 40°
3.6 m × 4.5 m (11.8 ft × 14.8 ft)
0.8 m (2.6 ft) 2.2 m (7.2 ft) 20°
1.2 m (3.9 ft) 2.1 m (6.9 ft) 30°
1.6 m (5.2 ft) 1.9 m (6.2 ft) 40°
4.5 m × 3.6 m (14.8 ft × 11.8 ft)
0.8 m (2.6 ft) 2.2 m (7.2 ft) 20°
1.2 m (3.9 ft) 2.1 m (6.9 ft) 30°
1.6 m (5.2 ft) 1.9 m (6.2 ft) 40°
2.0 m (6.6 ft) 1.7 m (5.6 ft) 50°
1
3 4
5
2
Satellite speaker (L) Satellite speaker (R) TV
1.1 m
(3.6 ft)
0.6 m
(2.0 ft)
0.7 m
(2.3 ft)
