doors. Do not forget to remove the plastic spacer
(b) under the hinge. (fig. 2)
5. Take off the refrigerator door by pulling it slightly
downwards.
6. Take off the freezer door by pulling it slightly
upwards.
7. Remove the plug on the upper side of the
refrigerator door and put it to the other side.
8. Remove the plug on the upper side of the freezer
door and put it to the other side.
9. Unscrew the top door hinge pin (d) of the
refrigerator then screw it back on the other side.
(fig.1)
10. Remove the plugs (u) at the bottom of the
appliance. (fig.3)
11. Remove the lower hinge (e) by removing its
screws (s) and mount it on the other side. (fig.3)
12. Unmount the lower hinge pin (f) and its washer (h)
and mount them into the other hole of the lower
hinge. (fig.3)
13. Replace the plugs (u) on the other side.
14. Remove the covering pins (3 pieces) (n, k) of the
double door holder on the left side and put them
to the other side. (fig.2)
15. Fit the pin of the double door hinge (m) into the left
drill of the freezer door. (fig. 2)
16. Fit the freezer door to the lower door hinge pin (f).
(fig. 4)
17. Fit the refrigerator door to the upper door hinge
pin (d) then slightly tilting both doors fit the pin of
the double door hinge (m) into the left drill of the
refrigerator door.
18. Opening both doors fix the double door hinge
onto the left side using the screws (2 pieces) (c).
Do not forget to replace the plastic spacer (b)
under the hinge. Be careful that the door edges
are parallel with the edge of the mantle.
19. Put over the handles (r) on the other side and put
the plastic covering nails (p) supplied in the plastic
bag of this instruction book into the holes set free.
(fig. 5)
20. Put the appliance into its location, set it level, and
apply to voltage it.
In case you do not want to perform the procedures
above, call the nearest brand-mark service.
Technicians will accomplish the refitting expertly for
charge.
Important
After completion of the door reversing
operation, check that the door gasket adheres to the
cabinet. If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the cabinet.
In that case, wait for the natural fitting of the gasket or
accelerate this process by heating the part involved
with a normal hairdryer on a low setting.

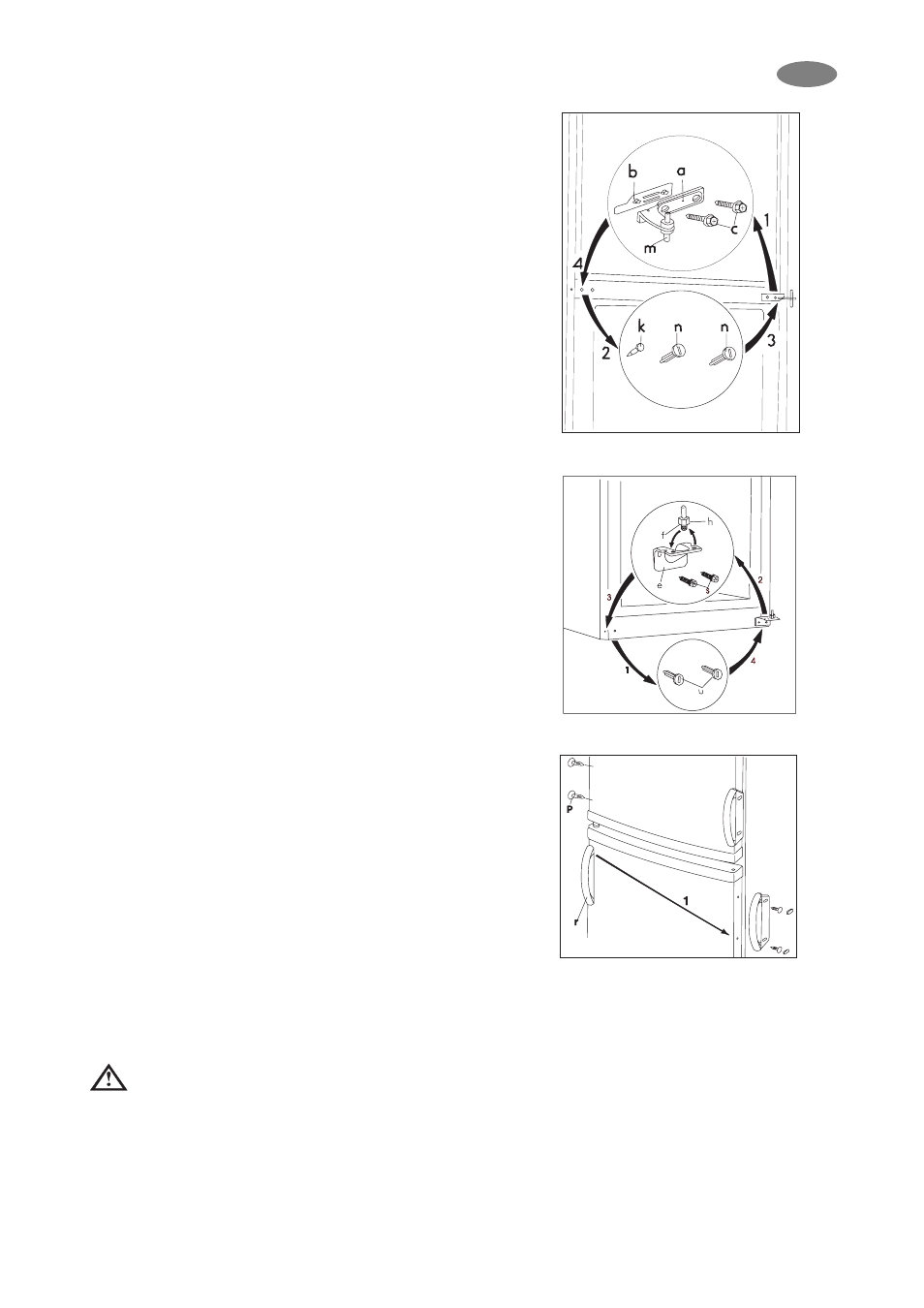

fig. 2.
