42
• When sharpening, removing, or reattaching the
blade, be sure to wear thick, sturdy gloves and
use only proper tools and equipment to prevent
injury.

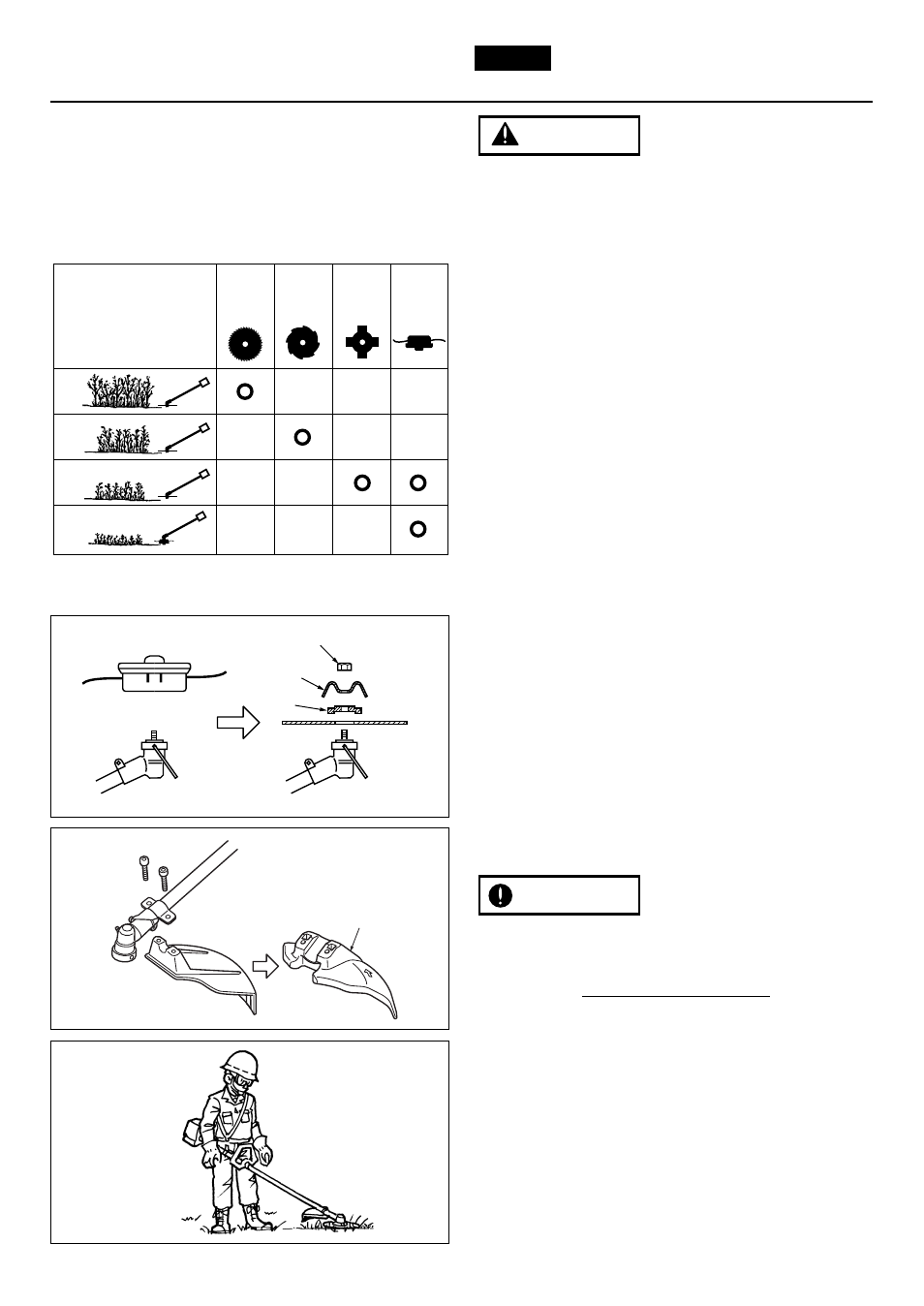

■ CHOOSE THE BLADE
Choose a suitable recommended cutting attachment
according to the object to be cut. (OPT1)
• When replacing blade always be sure to use
products which have been certified by KOMATSU
ZENOAH.
(1) 9” 22-tooth : SST229
(2) 9” 24-tooth : SST249
(3) 8” 8-tooth : SGB088
(4) 9” 8-tooth : SGB089
(5) 8” 4-tooth : SGB048
(6) 9” 4-tooth : SGB049
(7) Nylon line head
(A) Under growth
(B) Heavy weeds
(C) Light weeds
(D) Grass
WARNING
■ SET UP THE BLADE
1. Detach the line head assembly. (OPT2)
2. Put on the blade, making the marked side face the
shaft side, put the holder and the cover on, and
fasten the blade with the nut. (OPT2)
(1) Cover : 3540-13283
(2) Holder (B) : 6019-13250
(3) Nut : T3002-13260
Change to the debris guard which is suitable for the
metal blade. (OPT3)
TIGHTENING TORQUE :
26~43,5 in-lbs (2.94~4.9 N.m.)
(1) Guard : T3246-24110
■ BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit balances with head
just touching on the ground. (OPT4)
IMPORTANT
OPT4
(1)
(3)
(2)
OPT2
(1)
OPT3
(1)
(2) (3)
(4) (5)
(6)
(7)
(A)
(B)
(C)
(D)
OPT1
11. Optional blade usage
