Yard-Man YM26SS - Manual (Page 30)

30

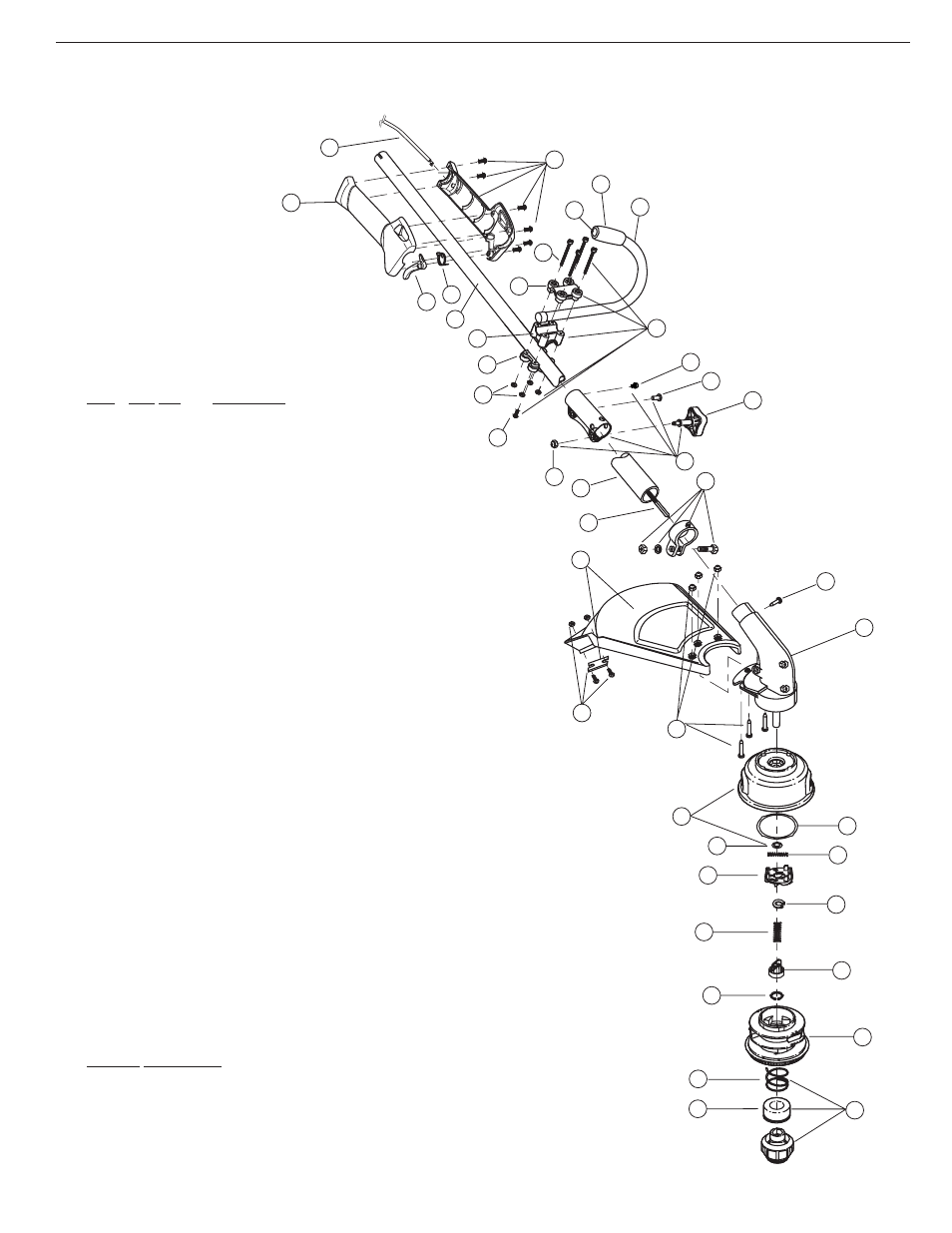

Item Part No. Description
1 791-182808 Throttle Housing and Trigger Assembly
(includes 2 & 3)
2 791-BQ01604 Throttle Trigger Spring
3 791-182385 Throttle Trigger
4 791-182357 Throttle Cable Assembly
5 753-1247 Upper Drive Shaft Housing Assembly
6 791-180687 J-Handle Assembly (includes 7 & 8)
7 791-612831 Grip
8 791-612021 Tube Closure
9 791-683295 Handle Bracket Assembly (includes 10-15)
10 791-181811 Screw
11 791-181812 Upper Handle Clamp
12 791-181813 Middle Handle Clamp
13 791-181814 Lower Handle Clamp
14 791-181815 Nut
15 791-145569 Anti-Rotation Screw
16 791-182928 EZ-Link Coupler (includes 17-20)
17 791-182057 Screw
18 791-181617 Bolt
19 791-181618 Adjustment Knob (Includes 20)
20 791-181886 Knob Retaining Nut
21 791-182388 Lower Drive Shaft Housing Assembly (Includes 22-24)
22 791-181166 Lower Flexible Drive Shaft
23 791-153597 Lower Clamp Assembly (includes 24)
24 791-145569 Anti-Rotation Screw
25 791-181470 Gearbox Assembly
26 791-180547 Shield Mounting Hardware
27 791-180548 Shield and Blade Assembly (includes 28)
28 791-180553 Blade Assembly
29 791-181457 Outer Spool and Eyelet Assembly (includes 30)
30 791-181458 Retainer
31 791-181561 Thrust Washer
32 791-181459 Small Spring
33 791-181461 Slider
34 791-181532 E-Clip
35 791-181531 Spring
36 791-181462 Plunger
37 791-181463 C-Clip
38 791-181464 Inner Reel
39 791-181465B Large Spring
40 791-181467 Foam Seal
41 791-181468 Bump Head Knob Assembly with Spring and Foam Seal (Includes 39 & 40)
Optional Accessories
* 791-181472 Replacement Line, 0.80 Diameter (Eight - 10 ft lengths)
* 791-181460B Reel and Line Assembly
* 791-682075B Shoulder Strap Assembly
* 791-181786 Ryobi 4-Cycle Oil
* Items Not Shown
1
18
19
16
20
21
1
8
7
6
9
10
11
13
12
14
15
17
5
4
3
2
24
22
27
23
32
30
33
34
29
31
25
26
28
38
36
35
40
37
39
41
Reissued 5/02
SECTION 11: PARTS LIST FOR PPN 41AD26SC401
