English-
16
CONTROLS
Controls
This operator’s manual describes the
Yazoo/Kees Zero Turn Rider. The rider is
fitted with a Kawasaki or Kohler four-stroke
V-Twin engine developing 25-30 horse power.
Transmission from the engine is made via two
belt-driven hydraulic pumps, which in turn
drive a hydraulic motor for each drive wheel.
Using the left and right steering controls, the
flow is regulated and thereby the direction
and speed.

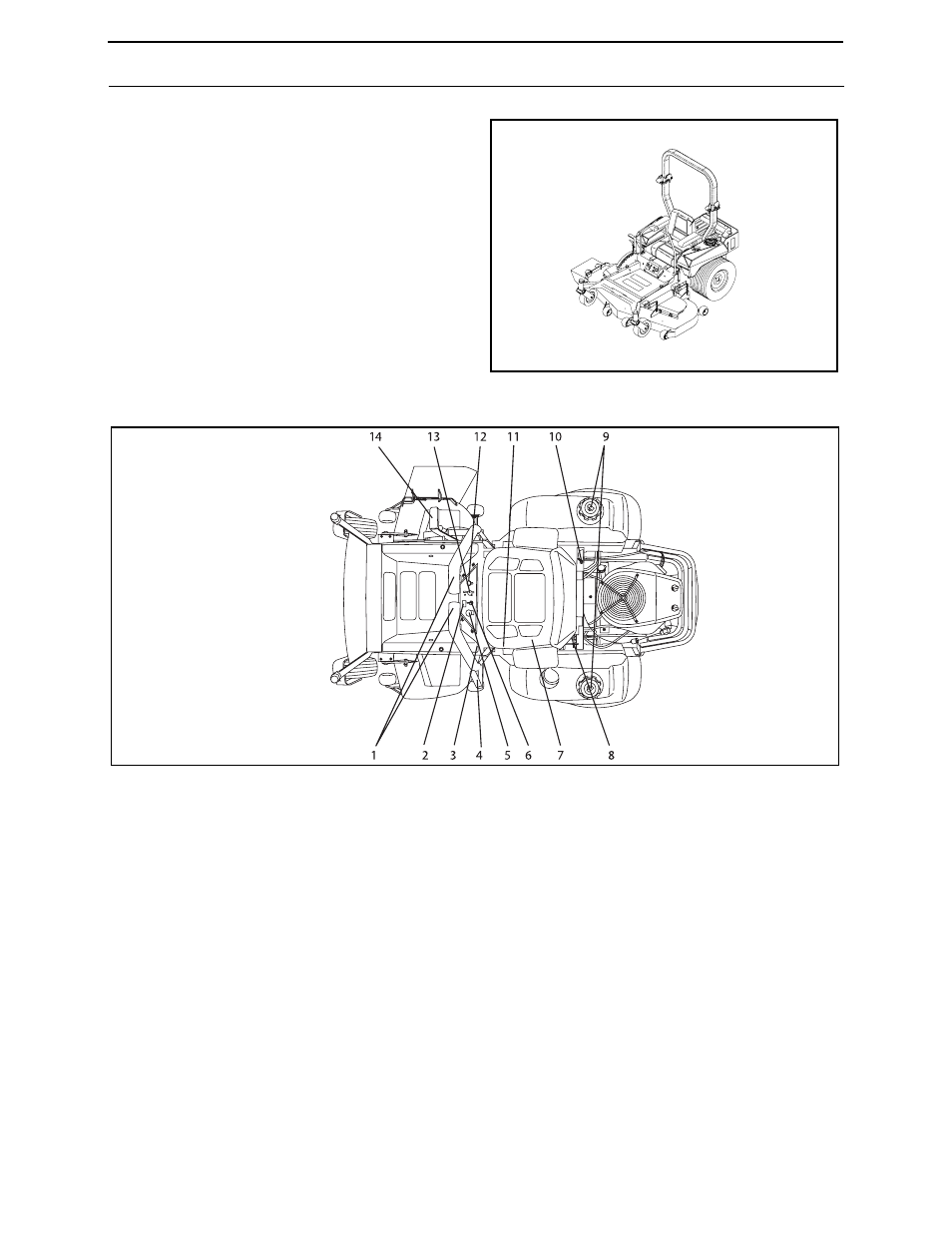

Control Locations
1. Motion control, levers 8. Seat locking device
2. Hour meter 9. Fuel tank cap
3. Tracking knob 10. Fuel shut off valve
4. Parking brake 11. Seat adjustment lever
5. Blade-switch 12. Choke control
6. Ignition switch 13. Throttle control
7. Fuses 14. Cutting height adjuster
Zero Turn Rider
8011-767
Locations of the controls
