English-
48
MAINTENANCE
Adjusting the Mower Deck
Leveling
1. Position the mower on a level, preferably
concrete, surface.
2. Check the pressure in all four tires. See
“Technical Data” on page 65.
3. Rotate blades to align front to back.
4. Place 2 x 4’s on edge under the cutting
deck from front to rear and lower the
deck down onto the 2 x 4’s.
5. Adjust the four lower chain bolts to the
center slots on the deck. Make sure the
lift blocks under the frame are tightly
bolted to the frame.
6. Check the chains for equal tension. If
unequal adjust lower chain bolt in slot.
Adjusting Cutting Height
1. Raise and secure the deck height lever
to the transport position (6").
2. Position blade tip so it is straight forward.
3. Measure from the cutting edge of the
blades to a flat level surface. The
distance should be 6" (150 mm).
4. Drop and secure the lever at (for
example) the 2" cutting height. Measure
as above. The distance should be 2"
(50 mm).
WARNING!
Before performing any service or adjustment checklist:
1. Engage the parking brake.
2. Place the blade-switch in the disengaged position.
3. Turn ignition switch to “OFF” position and remove the key.
4. Make sure the blades and all moving parts have completely stopped.
5. Disconnect the spark plug wire from all spark plugs and place the wire where it
cannot come in contact with the plug.
WARNING!
Blades are sharp. Protect your
hands with gloves and/or wrap
blades with a heavy cloth when
handling.
8011-601

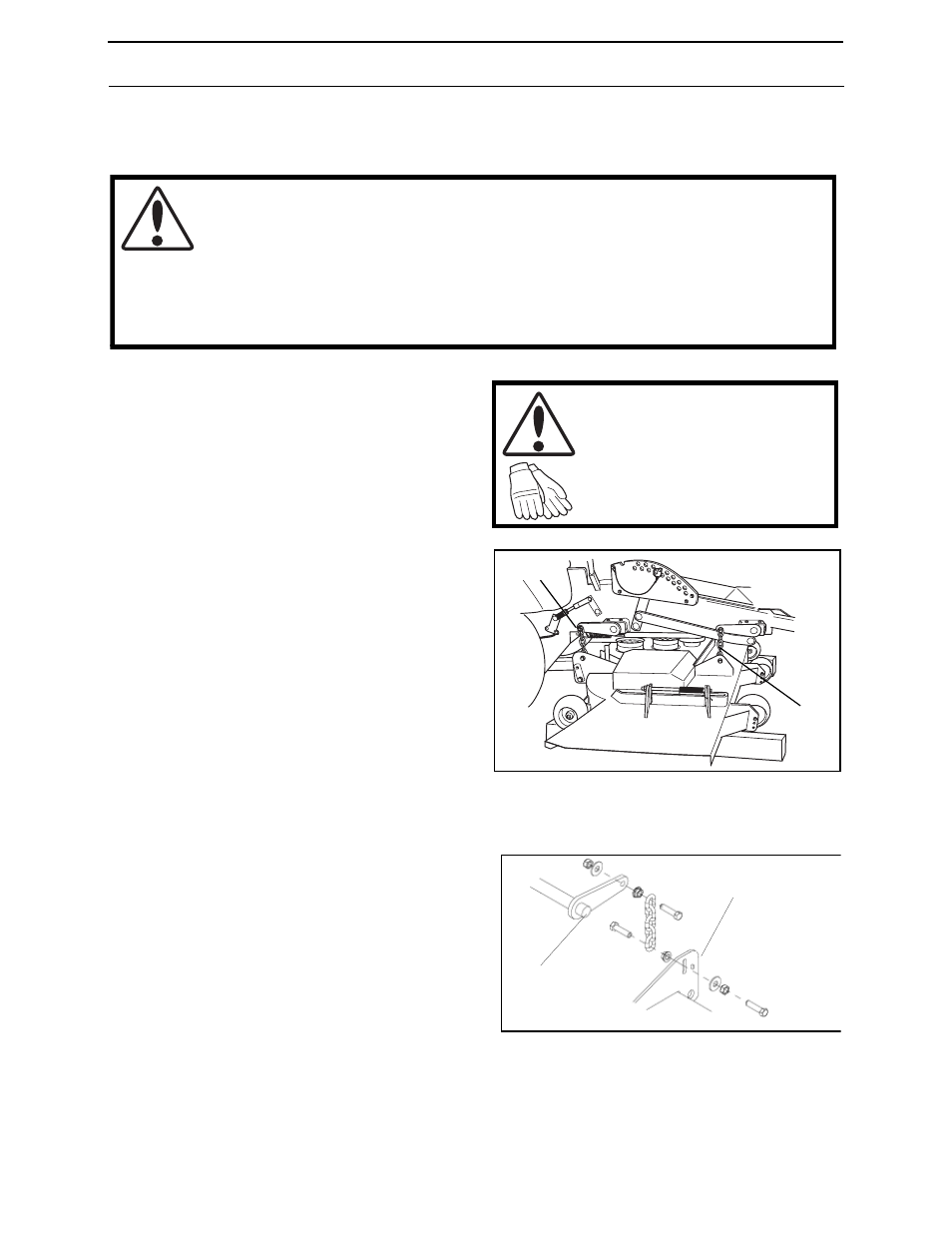

Leveling the mower deck
1
2
1. Front chain
2. Rear chain
Lift arm and chains
Deck Lift Arm
Slots for Chain
Adjustment
