MAINTENANCE

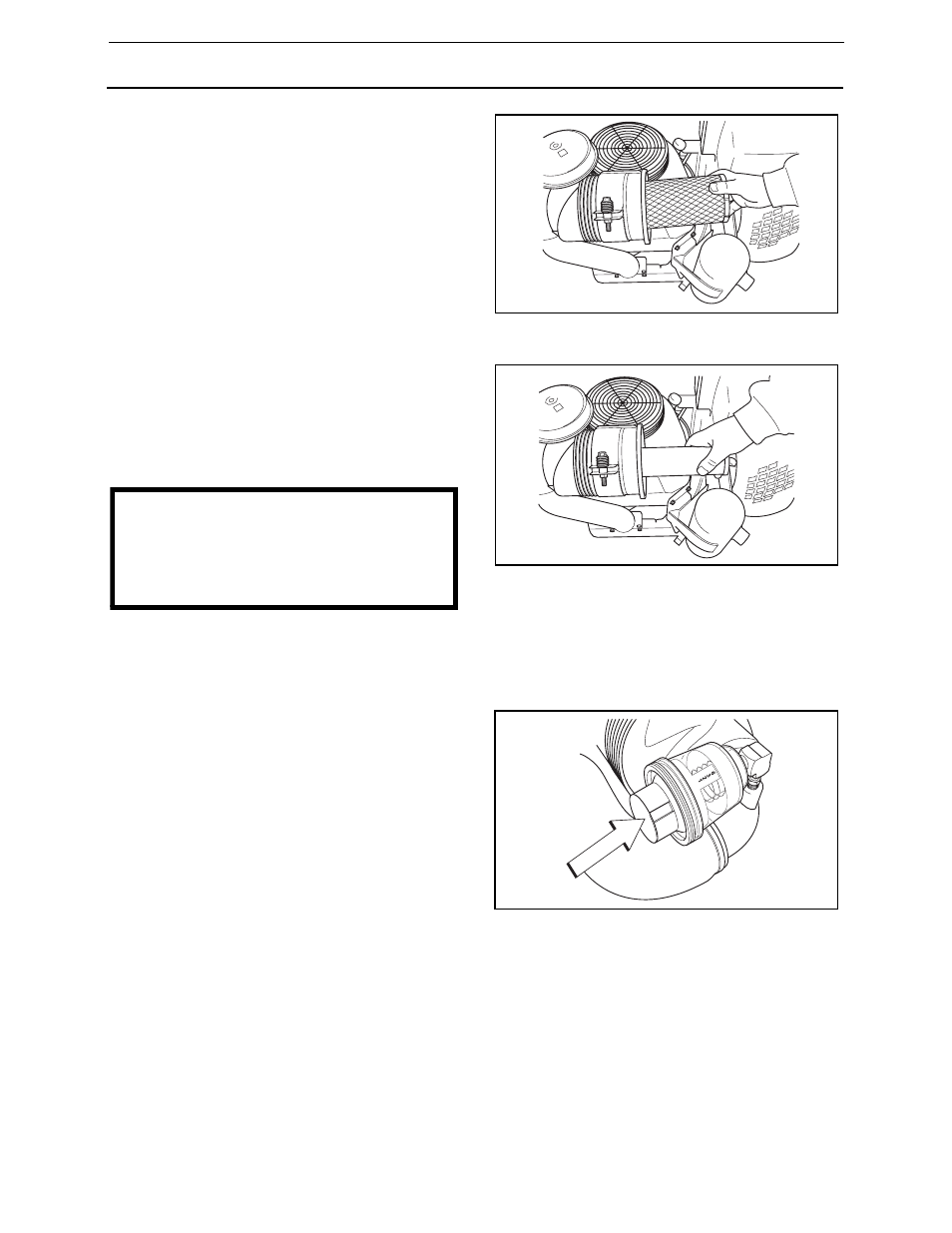

Filter replacement
1. Remove the end cover.
2. Remove the main filter (outer filter) by
pulling it out by hand.
3. Remove the inner filter by pulling it out by
hand.
4. Clean inside of the filter housing. Wipe
dry only.
5. Install the inner filter with the open end
first. Ensure that it enters its recess at
the end of the housing and push it in to
the end.
6. Install the main filter with the open end
first. Ensure that it enters its recess at
the end of the housing and push it in to
the end.
7. Turn the end cover with the rubber valve
pointing downwards and install it.
Air filter indicator (optional)
Change the main filter when the yellow piston
is hanging at the top of the cylinder. To reset
the indicator, push on the button (arrow) at
the cylinder. A number of pushes may be
required. If it indicates soon after a main filter
replacement, change the inner filter.
8011-449
Removing the main filter
8011-450
Removing the inner filter
IMPORTANT INFORMATION
The end cover must be installed with the
rubber valve pointing downwards,
otherwise the rubber valve will not
function.
8011-467
Air filter indicator
