ZyXEL Communications P-2302RL-P - Manual (Page 2)

VoIP Station Gateway
p-2302r/rl-p
series
Hardware
• Built-in TWO Auto MDI/MDI-X 10/100M RJ-45 Ports
for Ethernet & WAN
• 2 FXS POTS Interface for Analog Telephone
• 1 FXO POTS Lifeline Relay (optional)
• Restore Factory Defaults/Reboot Button
Router Features
• NAT (includes multi-to-multi NAT)/
SUA, 2048 NAT Sessions
• NAT Server (Port Forwarding )
• TCP/IP
• PPPoE Client
• DHCP Client/Server
• RIP I/RIP II Support
• IP Multicasting, IGMP v1 and v2
• Dynamic DNS Support
• IP Alias
Voice Functionality
• SIP (RFC 3261) v. 2
• SDP (RFC 2327)
• RTP (RFC 1889)
• RTCP (RFC 1890)
• Echo Cancellation: G.168
• VAD (Voice Activity Detection)
• Silence Suppression
• CNG (Comfort Noise Generation)
• Support TOS & Diffserv Tagging
• VLAN Tag Support
• Codec: G.711 (PCM A-law or
µ-law selectable),
G.729a/b
• Option: G.726 (ADPCM), G.723*
• DTMF Detection
• Multiple SIP Numbers Support
• Multiple Channels Support
• Modem and Fax Tone Detection
• T.38 Fax Relay
• Polarity Reverse*
• DNS SRV*
Phone Features
• CW (Call Waiting)
• Call Waiting w/Caller ID
• Call Forwarding (Unconditional/Busy/No Answer)
• Call Transferring
• Three Way Conference w/Local Mixing
• CLIP (Calling Line Identification Presentation)
• CLIR (Calling Line Identification Restriction)
• Call Hold/Call Retrieve
• Incoming Call Policy
(Call Accept/Call Forward/Call Block)
• Second Call
• Internal Call
• Early Media
• Flash Hook Timer
• Music on Hold
• MWI (Message Waiting Indicator (RFC 3842))
• IVR (Interactive Voice Response)
• Speed Dial (Phone Book)
• DND (Do NOT Disturb)*
• MCID (Malicious Call Identification)*
• Call Block*
• Distinctive Ringing*
• Last Number Redial*
• COLP (Connected Line Identification
Presentation)*
• COLR (Connected Line Identification Restriction)*
• Conference Call w/Media Server*
• Call Filtering*
• Call History*
• Automatic Call Return*
• MWI by e-Mail*
• Fixed Destination Call*
• Caller ID Generation/Detection w/DTMF &
FSK Format*
Network Functionality
• Friendly Web-based Configuration Tool
• Remote FTP/TFTP Firmware Upgrade and
Configuration Backup/Restore
• Secure TFTP and HTTP Auto-provisioning
(Default by 3DES Encryption)
• IVR for IP Address and FW Upgrade
• 2-tier Web and Management: Admin & Guest
Access Authority (customizable)
• Friendly Support Bridge/Routing Mode Configured
by WebGUI
NAT Traversal
• Simple Traversal of UDP over NAT (STUN, RFC3489)
• Outbound Proxy
• Manually Configured SIP and RTP (Fake Address)
Lifeline Support (P-2302RL-P1)
• Send an Emergency Call to PSTN
• Make a PSTN Call by Dialing Pre-fix Number
• PSTN Relay when Device Power Down
• PSTN Relay when VoIP Service is NOT Available
• Receive Incoming PSTN Phone Call
Management
• Embedded FTP/TFTP Server for f/w Upgrade and
Romfile Backup and Restore
• Remote Management Control: Telnet, FTP, Web
• UPnP Support
• Easy Provisioning Management of TR-104
(customizable)
Firewall Security
• ICSA Certified Firewall with Stateful Packet
Inspection
• Prevent DoS Attack
• Access Control of Service
• Content Filtering: URL Blocking such as ActiveX,
Java, Cookies and Web
• IP & Generic Packet Filtering
• Real-time Attack Alert and Log
Environmental Specifications
• Operating Temperature: 0 °C~40°C
• Storage Temperature: 0 °C~60°C
• Operating Humidity: 10%~85% RH, non-condensing
• Storage Humidity: 10%~90% RH, non-condensing
Physical Specifications
• Dimensions: 115(W) x 51(D) x 165(H) mm
• Weight: 295g
Specifications

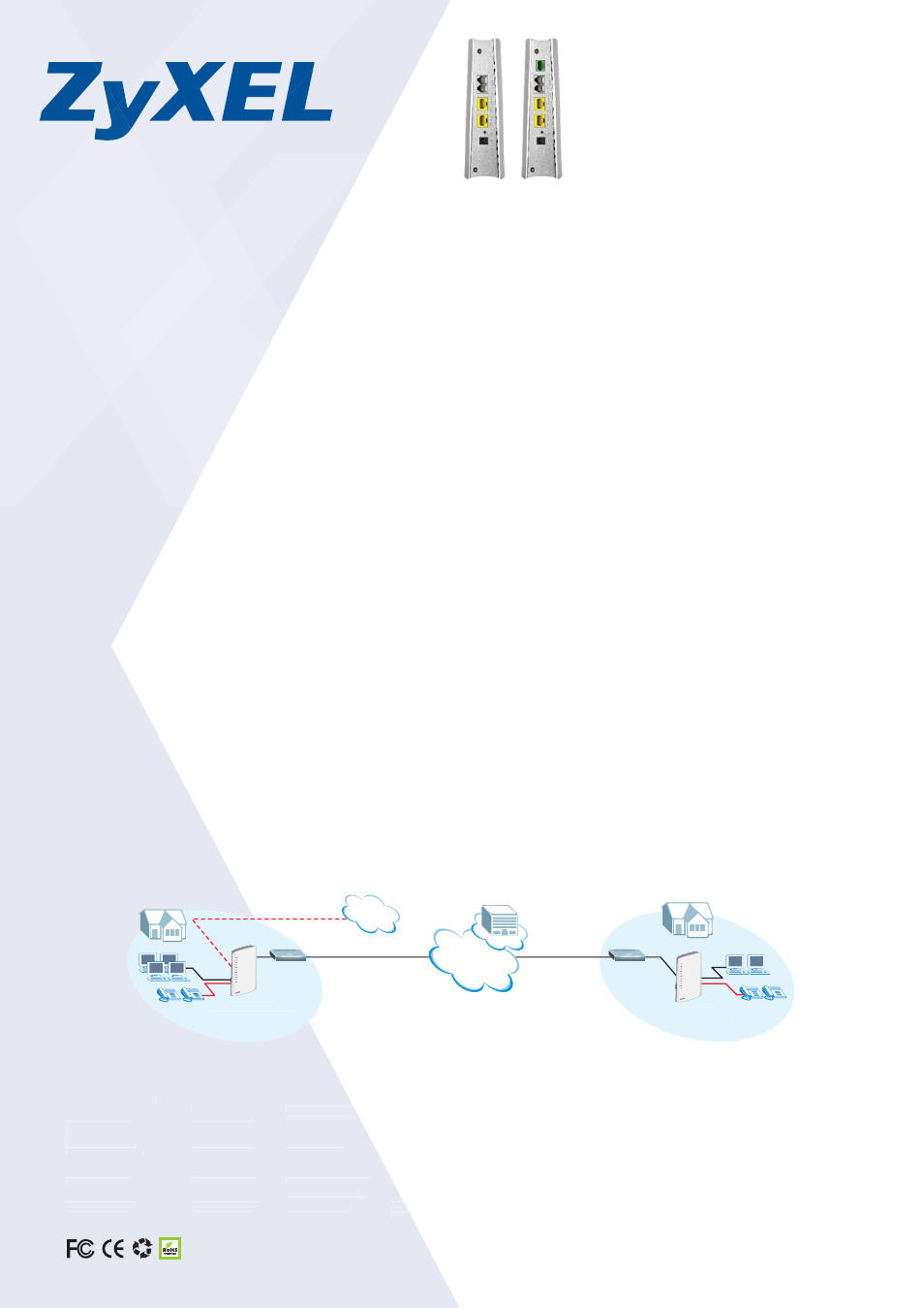

Application Diagram
Product Description
P-2302RL-P1 VoIP Station Gateway with Lifeline
P-2302R-P1 VoIP Station Gateway
* Firmware upgradeable for future enhancement
P-2302RL-P1
VoIP Station Gateway with
Lifeline Support
m DSL/Cable Modem DSL/Cable Modem
P-2302R-P1
VoIP Station Gateway
PSTN Lifeline Support
Phone Phone
PSTN N
IP Telephony
Service Provider
Interne et
65-100-230204G 04/06
