LF2020/LF2090 Sit-To-Stand Patient Lift Owner’s Manual 8

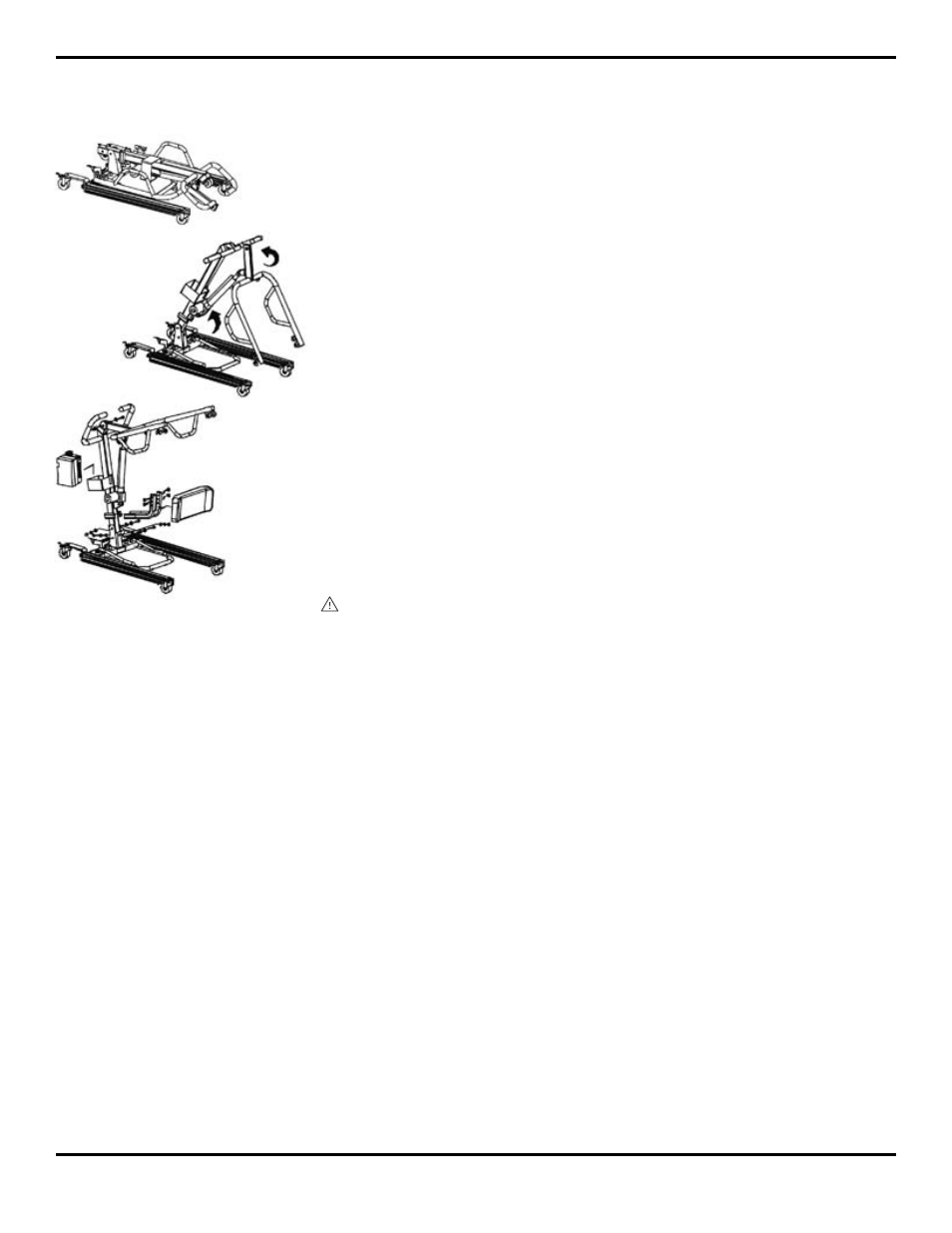

ASSEMBLY INSTRUCTIONS
1. Open the box and take lift out.
2. Unscrew nuts and bolts at top and bottom of the mast.
3. With one hand on the mast and another on the boom, stand the
mast up.
4. Put bolts through the bottom two holes at the base of the mast
and hand tighten them.
5. Attach boom to mast and hand tighten bolt and nut.
6. Attach the L-shaped arms to back of the kneepad. For desired
height of the kneepad, use proper holes on the L-shaped arms.
7. Attach kneepad assembly to the mast.
8. Attach actuator and pendant to the control box.
9. Tighten all nuts.
Warning: Before using Sit-to-Stand Patient Lift, ensure that lift is
assembled as described, that all attaching hardware is securely
tightened, and that all lift components are secure.
