Chapter 2 Product Specifications
ALC1248G User’s Guide
27

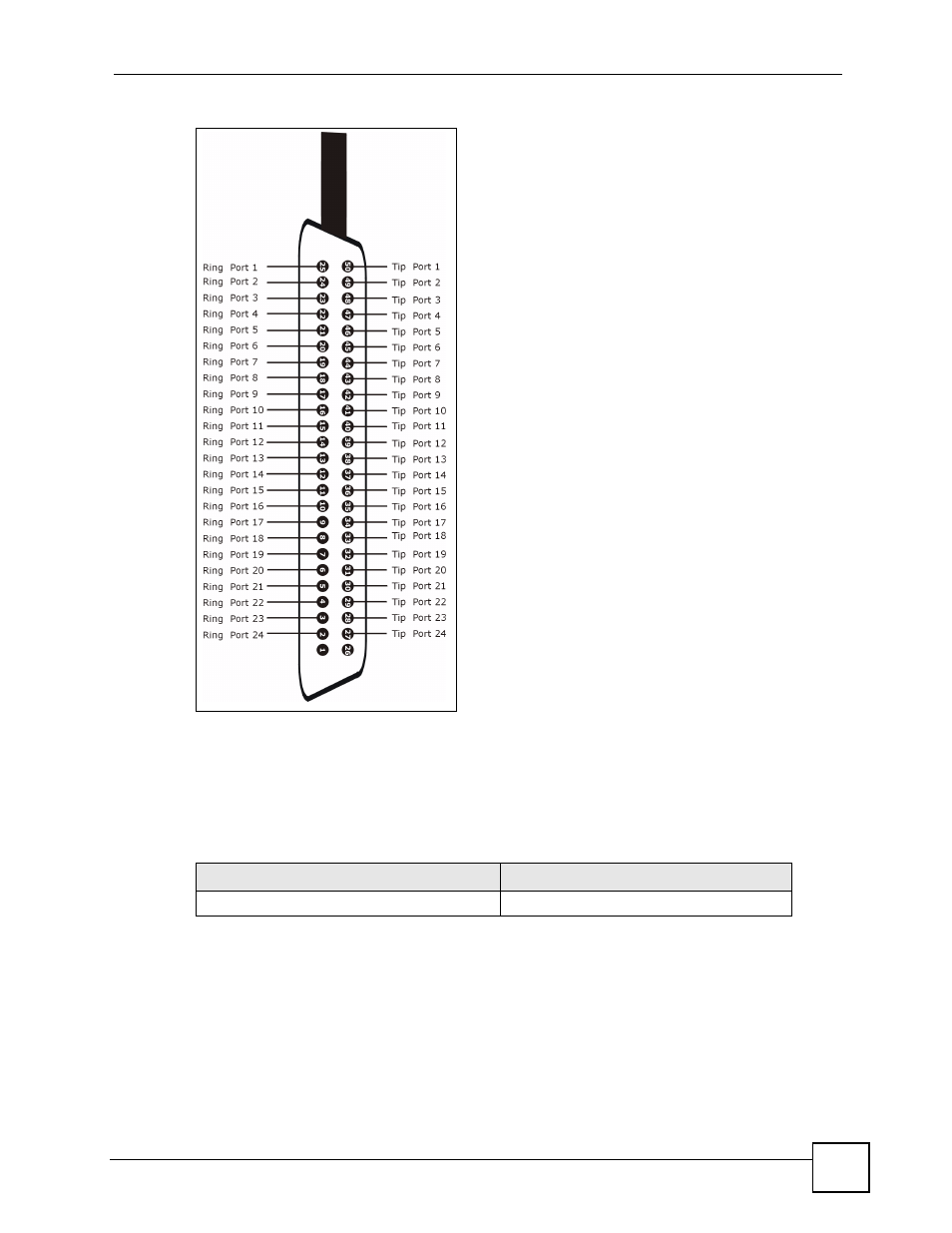

Figure 7 IES-6000 Cable Telco-50 Pin Assignments (Splitter Card End)
2.4 Wire Gauge Specifications
AWG (American Wire Gauge) is a measurement system for wire that specifies its thickness.
As the thickness of the wire increases, the AWG number decreases.
2.5 Console Cable Pin Assignments
The following diagram and chart show the pin assignments of the console cable.
Table 7 Wire Gauge Specifications
WIRE TYPE REQUIRED AWG NO. (DIAMETER)
Telephone Wire 26 or larger
