Hardware Specifications
• Embedded Network Processor
• Memory 256 MB SDRAM
• Built-in 32 DSP Voice Channels
• Storage:
- Default 256 MB Flash
- Advanced Media Storage Expansion Slot: 1
• Network:
- WAN: 10/100M Auto MDI/MDIX, Ethernet: 1
- LAN: 10/100M Auto MDI/MDIX, Ethernet: 1
• Trunking Expansion Slots: 4
• DSP Expansion Slots: 2
• DB9 RS-232 Port for Console Configuration: 1
• Restore Factory Defaults/Reboot Button
• LED Status Indicators: SYSTEM, ALARM, HDD
and POWER
• Power:
- Full-Range 75 W PSU (100 ~ 240 V/50 ~ 60 Hz)
- Detachable Power Module
- BPM Socket: 1 (ZyXEL BPS, 120 W 12 V DC)
- Max. Operational Power Consumption: 40 W
• Slide-in Fan Module Slot: 1
Physical Specifications
• Dimensions: 437 (W) x 310 (D) x 66 (H) mm
• Weight: 5.6 Kg (without expansion)
Environmental Specifications
• Operating Temperature: 0ºC ~ 40ºC
• Operating Humidity: 20% ~ 95% RH
• Storage Temperature: -30ºC ~ 60ºC
• Storage Humidity: 20% ~ 95% RH
Component List
• System: X6004
• Trunking Expansion Modules:
- M6FO4
- M6FS4
- M6FO2FS4
- M6BRI4
- M6T1E1
• DSP Expansion Modules:
- M6D16
- M6D32
- M6D64
• Advanced Media Storage Modules:
- M6AMS

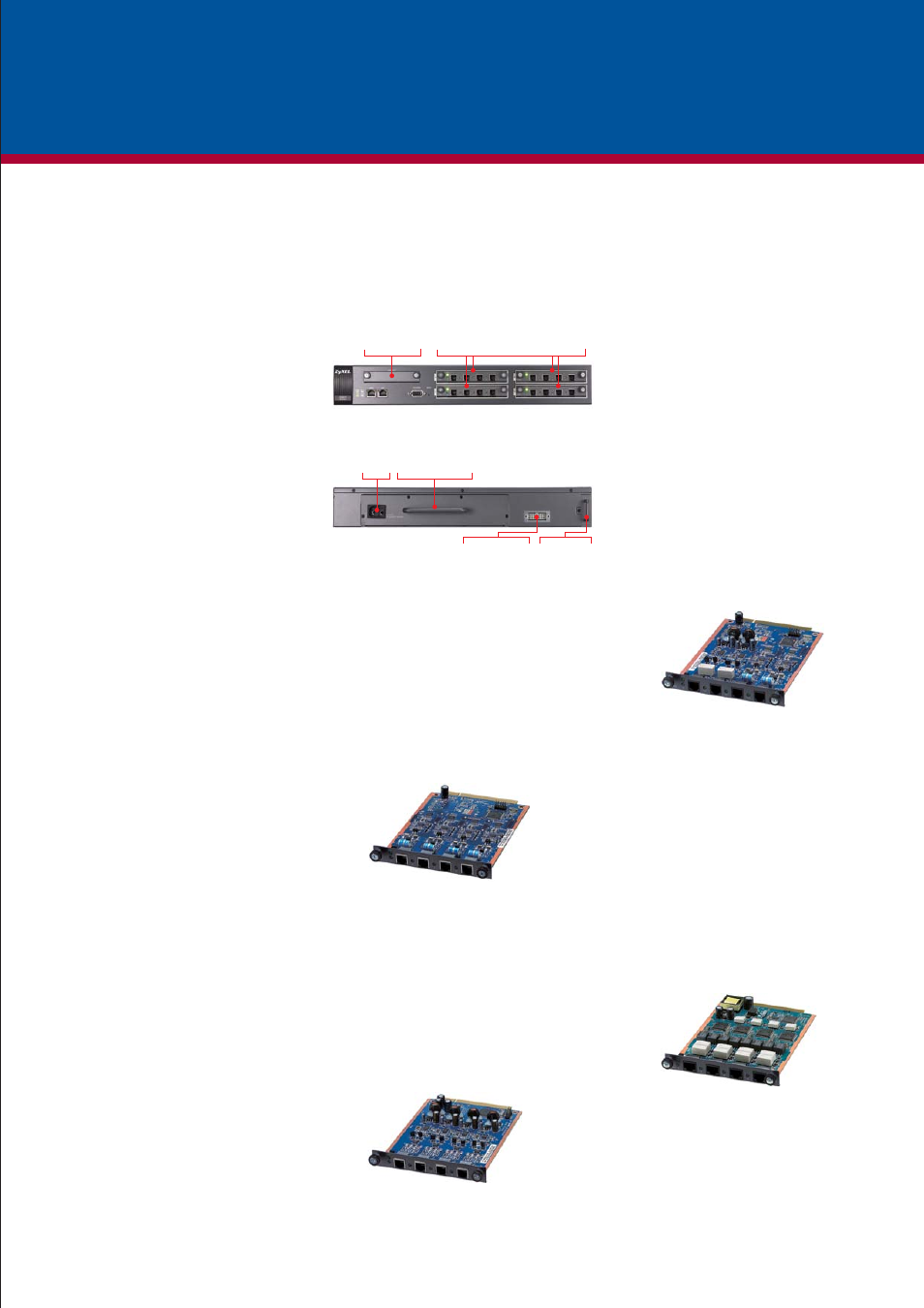

A Quick Look at X6004
X6004 Hardware View (Front)
X6004 Hardware View (Rear)
M6FO4
• ZyXEL IPPBX Outbound Trunk
• Interface Type: Foreign eXchange Office (FXO)
• Signaling Formats: Ground Start and Loop Start
• Address Signaling Formats: In-band DTMF
• Physical Connector: RJ-11
• Number of Connectors: 4
• Dimensions: 119 (W) x 152 (D) x 18 (H) mm
• Weight: 107.6 g
M6FS4
• ZyXEL IPPBX Analog Phone Interface
• Interface Type: Foreign eXchange Station (FXS)
• Signaling Formats: Loop Start
• Address Signaling formats: In-band DTMF
• REN: 5 per port
• Physical Connector: RJ-11
• Number of Connectors: 4
• Dimensions: 119 (W) x 152 (D) x 18 (H) mm
• Weight: 121.6 g
M6FO2FS2
• ZyXEL IPPBX Outbound Trunk and Analog
Phone Interface with Lifeline
• Interface Type: Foreign eXchange Office (FXO)
and Foreign eXchange Station (FXS)
• Signaling Formats:
- FXO: Ground Start and Loop Start
- FXS: Loop Start
• Address Signaling Formats: In-band DTMF
• FXS REN: 5 per port
• Physical Connector: RJ-11
• Number of Connectors:
- FXO: 2
- FXS: 2
• Dimensions: 119 (W) x 152 (D) x 18 (H) mm
• Weight: 126.6 g
M6BRI4
• ZyXEL IPPBX Outbound Trunk
• Per-port Configurable Mode: NT (Network
Termination) and TE (Terminal Equipment)
• Protocol: I.430
• Switch Type: 5ESS (US), DMS100 (US), NI1 (US),
NET3 (Europe), INS64 (Japan), AUS (Australia)
• Supplementary Services: CLIP, DDI, and MSN
• Interface Type: ISDN BRI S/T
• Physical Connector: RJ-48
• Number of Connectors: 4
• Dimensions: 119 (W) x 152 (D) x 18 (H) mm
• Weight: 161.4 g
Power
Jack
Detachable
Power Module
BPS Connector
(BPS-120)
Detachable
Fan Module
HDD Module Trunking Expansion Module
