DISPLAY PANEL
SLEEP
TAPE MONITOR
ms dB
PRO LOGIC
ENHANCED CONCERT
VIDEO
MONO
MOVIE STADIUM
DISCO ROCK CONCERT
CONCERT HALL
NORMAL
WIDE
PHANTOM
EFFECT OFF
5 6
1 2 3 4
SLEEP
TAPE MON
ms dB
PRO LOGIC
ENHANCED CONCERT
VIDEO
MONO
MOVIE STADIUM
DISCO ROCK CONCERT
CONCERT HALL
NORM
WIDE
PHANTOM
EFFECT OFF
1
3 4
5 6
2
DSP-A492
DSP-A592
1

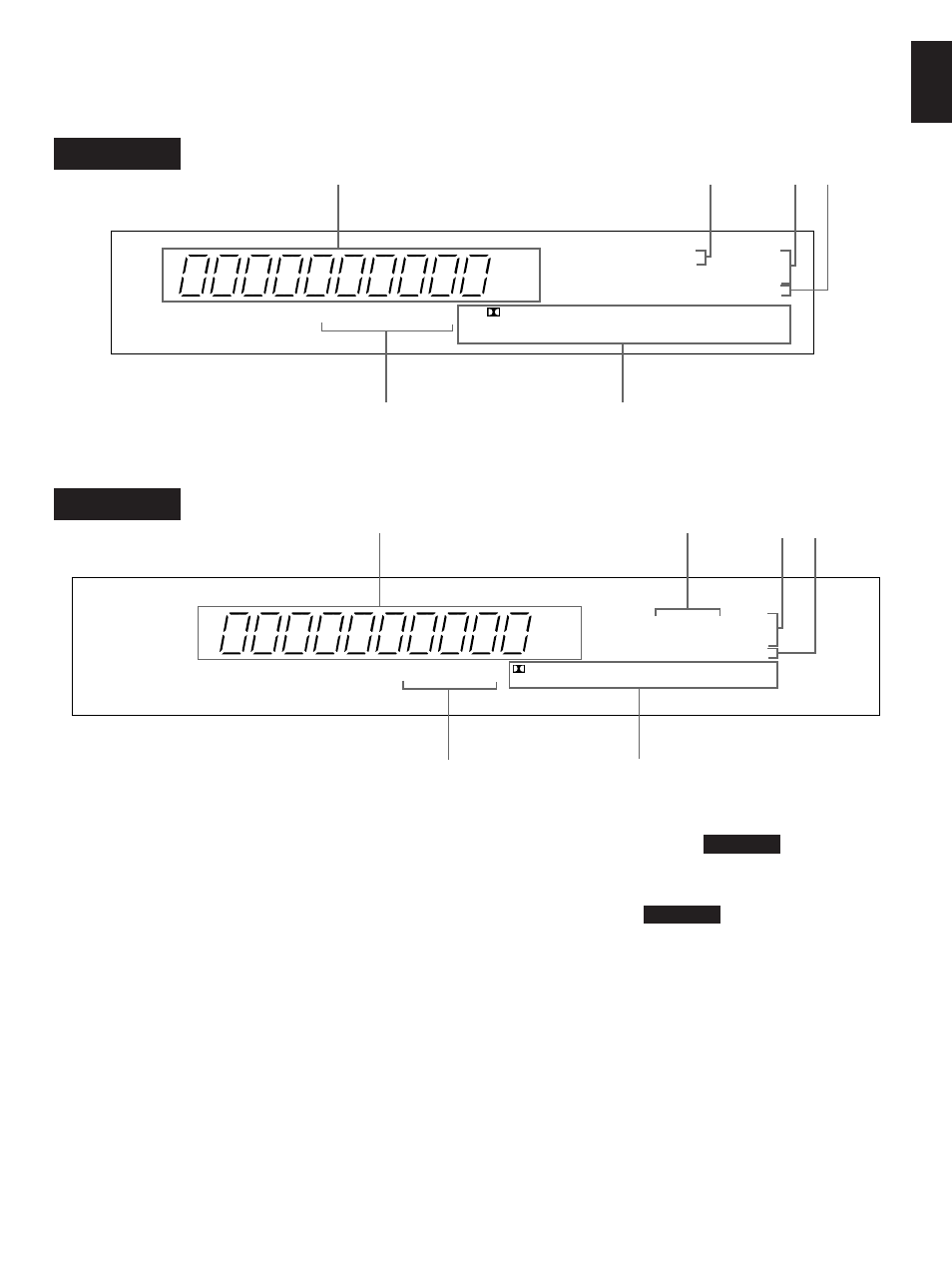

Multi-information display
Displays various information, for example name of selected
DSP program and name of selected input source.
2
SLEEP indicator
Lights up while the built-in SLEEP timer is functioning.
3
Center channel mode indicators
The name of a selected center channel mode lights up only
when a program which uses the Dolby Pro Logic Surround
decoder is selected.
4
EFFECT OFF indicator RX-V592RDS only
Lights up if neither the digital sound field processor nor the
Dolby Pro Logic Surround decoder is on. In this state, sound
output is 2-channel stereo.
5
TAPE MONITOR indicator DSP-A592
Lights up when the tape deck (or MD recorder etc.) is selected
as the input source by pressing the TAPE (MD) MON button.
TAPE MON indicator DSP-A492
Lights up when the tape deck (or MD recorder etc.) is selected
as the input source by pressing the TAPE (MD) MONITOR
button.
6
DSP program indicators
The name of a selected DSP program lights up when the built-
in digital sound field processor and/or the Dolby Pro Logic
Surround decoder is on.
