ZyXEL Communications MS-7206 - Manual (Page 3)

MM-7201
• 192 Gbps switch fabric
• Load sharing and non-blocking performance
• CLI, SNMP, RMON
• Out-of-band management
• One 10/100BASE-TX management port
• Two series port: RS-232 console & Alarm console
• System status LEDs
MI-7248
• 48-port Gigabit copper I/O module
• L2/L3/L4 local switching support
• High density Gigabit copper aggregation
MI-7248PWR
• 48-port Gigabit copper with PoE I/O module
• L2/L3/L4 local switching support
• High density PoE aggregation at full power
MI-7248TF
• 48-port Gigabit I/O module
• 24-port 1000BASE-T + 24 SFP slots
• L2/L3/L4 local switching support
• 24 SFP slots for fiber connectivity
• High flexible design for high density environment
MP-7201
• 600 W PSU for MS-7206 system
• Dual active/active load sharing design
MP-7202
• 750 W external PSU to provide full 48-port PoE
power for a MI-7248PWR
• Isolated PoE & System power to increase
system stability
Power Requirements
• Input voltage of AC: 100-240 VAC, 50/60 Hz
• Max power rating of AC: 600 Watt
Physical Specifications
• Dimensions: 435 (W) x 315.5 (D) x 447.2 (H) mm
• Weight: 15.5 Kg
Environmental Specifications
• Operating temperature: 0ºC ~ 45ºC
• Storage temperature: - 25ºC ~ 70ºC
• Operating humidity: 10% ~ 90%,
(non-condensing)
Certification
• UL 60950-1
• CSA 60950-1
• EN 60950-1
• IEC 60950-1
Hardware Specification
• Support of auto-negotiation
• Support of auto MDI/MDI-X
Component List
• System: MS-7206
• Switch Fabric: MM-7201
• IO Module:
- MI-7248 (48 1000T)
- MI-7248PWR (48 1000T PoE)
- MI-7248TF (24 1000T + 24 SFP)
- MI-7308 (8 XFP)
• Accessory:
- MP-7201 (600 W Power supply module)
- MP-7202 (750 W external power box for PoE)
- MF-7201 (Fan Module)

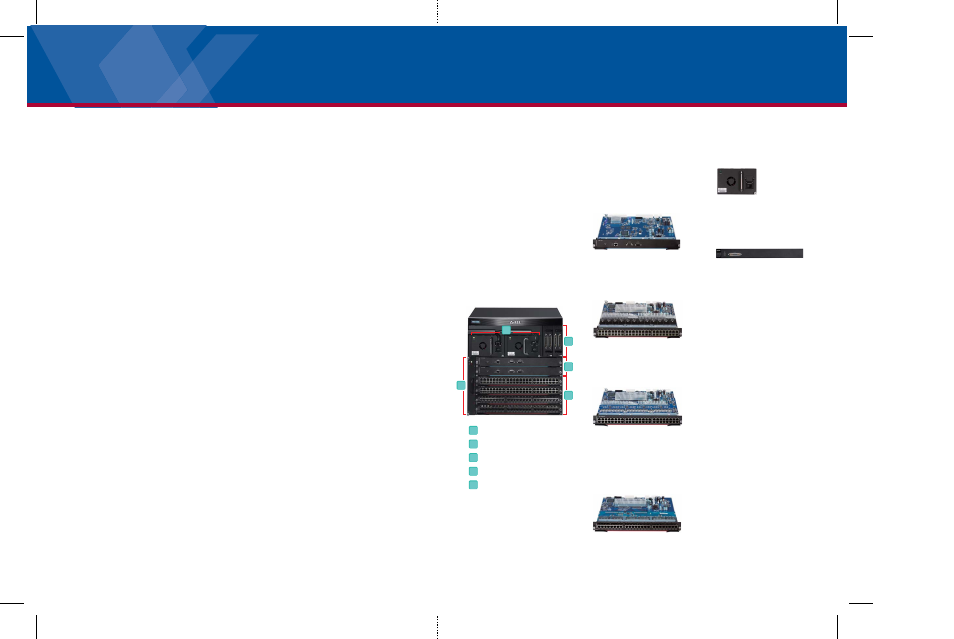

A Quick Look at MS-7206
Dual Redundancy Power Supplies
Removable FAN
Dual Switch Fabrics & Mgmt. slot
Four I/O Modules
Up to 4 external PoE power units to
supply MI-7248PWR
1
2
3
4
5
1
3
4
5
2
