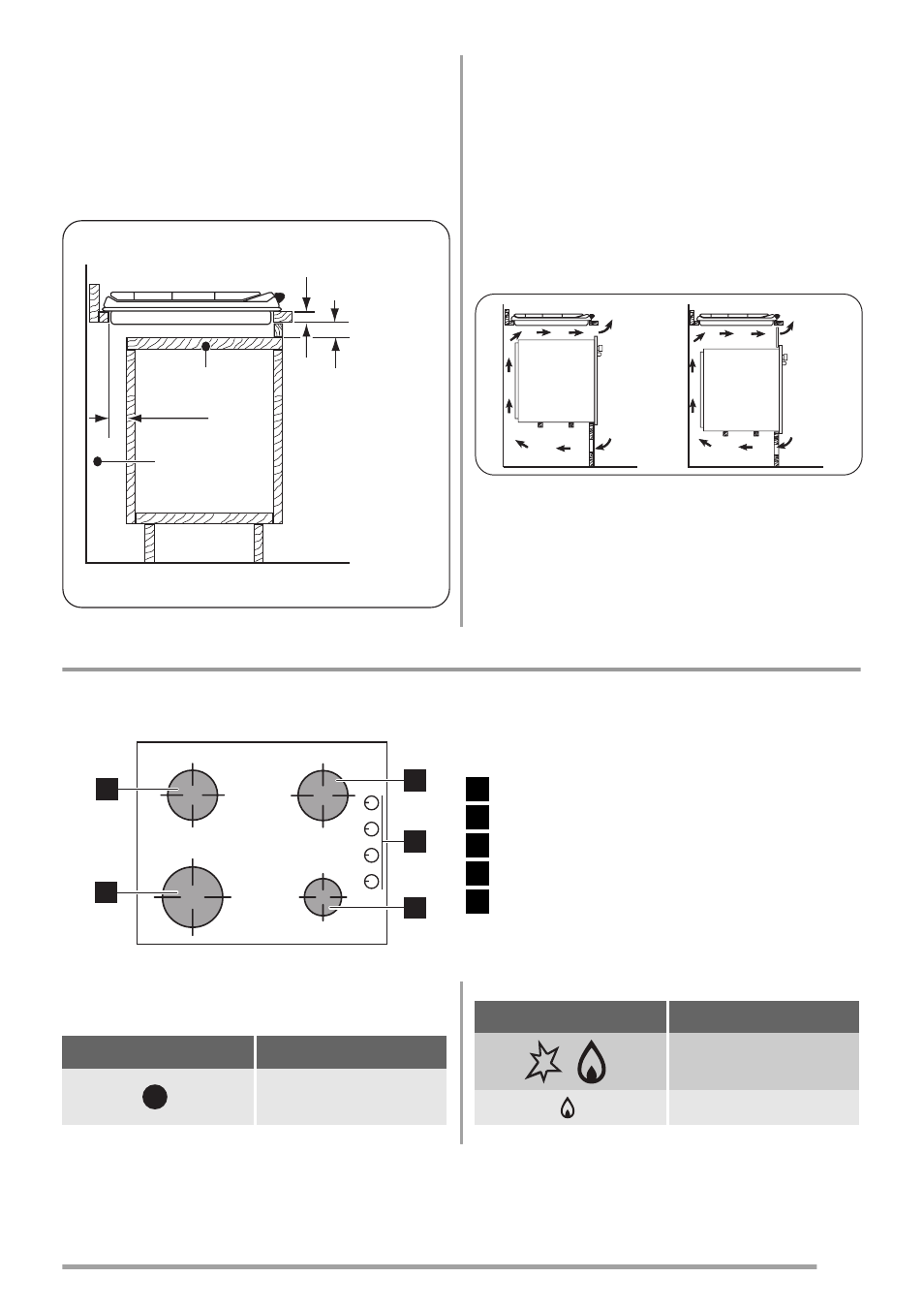

Possibilities for insertion
Kitchen unit with door
The panel installed below the hob must be easy to remove
and let an easy access in case a technical assistance inter-
vention is necessary.
min 20 mm
(max 150 mm)
30 mm
60 mm
b
a
a) Removable panel
b) Space for connections
Kitchen unit with oven
The hob recess dimensions must obey the indication and
the kitchen unit must be equipped with vents to let a con-
tinuous supply of air. The electrical connection of the hob
and the oven must be installed separately for safety rea-
sons and to let easy remove oven from the unit.
50 cm 2
360 cm 2 180 cm2
120 cm 2
MANUFACTURER:
ELECTROLUX ITALIA S.p.A.
C.so Lino Zanussi, 30
33080 PORCIA (PN) - ITALIA
Product description
Cooking surface layout
2
1
5
4
3
1 Semi-rapid burner
2 Semi-rapid burner
3 Control knobs
4 Auxiliary burner
5 Rapid burner
Control knobs
Symbol Description
no gas supply / off posi-
tion
Symbol Description
ignition position / maxi-
mum gas supply
minimum gas supply
