P-2608HWL-Dx Quick Start Guide
3
2 ETHERNET 1~4: Use Ethernet cables to connect a computer to this port for initial configuration and/or
Internet access.
3 PHONE 1-8: Use a telephone cable to connect your telephones to these ports. If you only have one
telephone, you should use port 1.

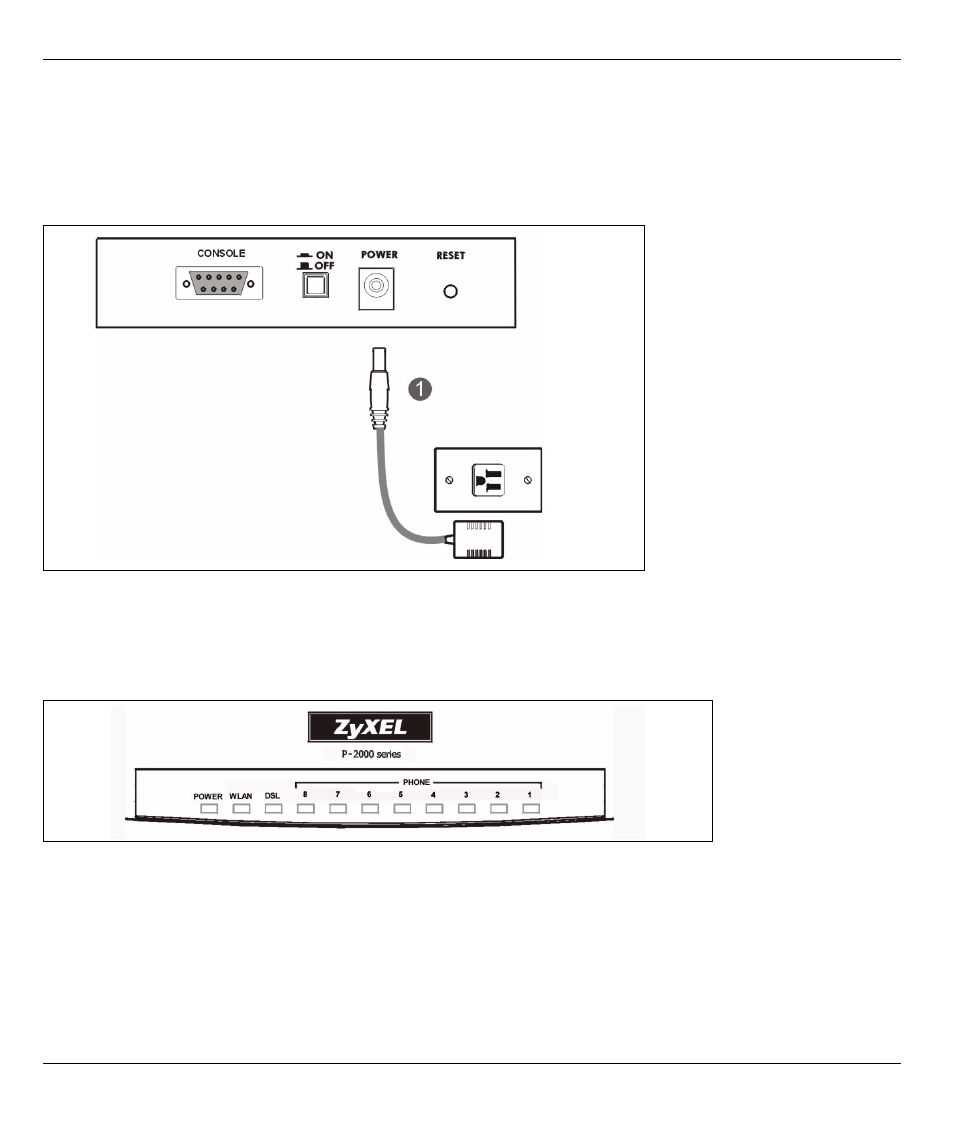

Side Panel
1 POWER: Use the power adaptor provided with your P-2608HWL-Dx to connect an appropriate power
source to this port.
2 Push in the POWER button.
2 LEDs (Lights)
Look at the LEDs on the front panel of the P-2608HWL-Dx.
• The POWER LED blinks during start-up and is green once the P-2608HWL-Dx is ready.
• The WLAN LED turns on when the wireless LAN is ready. It blinks when the P-2608HWL-Dx is sending or
receiving data through the wireless LAN.
• The DSL LED blinks when the P-2608HWL-Dx is attempting to detect a carrier signal and it stays on if a con-
nection is ready.
