Carry out the installation of the hob as follows (follow
also the instructions given on the Assembly and cut
outlines supplied with the appliance):
1) measure the worktop for the exact positioning of
the hob;
2) make the holes for the gas and electric pipe outlet
and the safety holes to block the hob to the worktop
(follow the instructions given on the Assembly
and cut outlines - see fig. 1);
3) screw the traction pins supplied with the appliance
into the holes situated under the hob and adjust
their height (according to the worktop height);
4) place the hob on the worktop (paying attention to
insert the traction pins into the safety holes of the
worktop - fig. 1);
5) push the hob ahead towards the back of the
worktop, and fix it to the worktop (fig. 2).

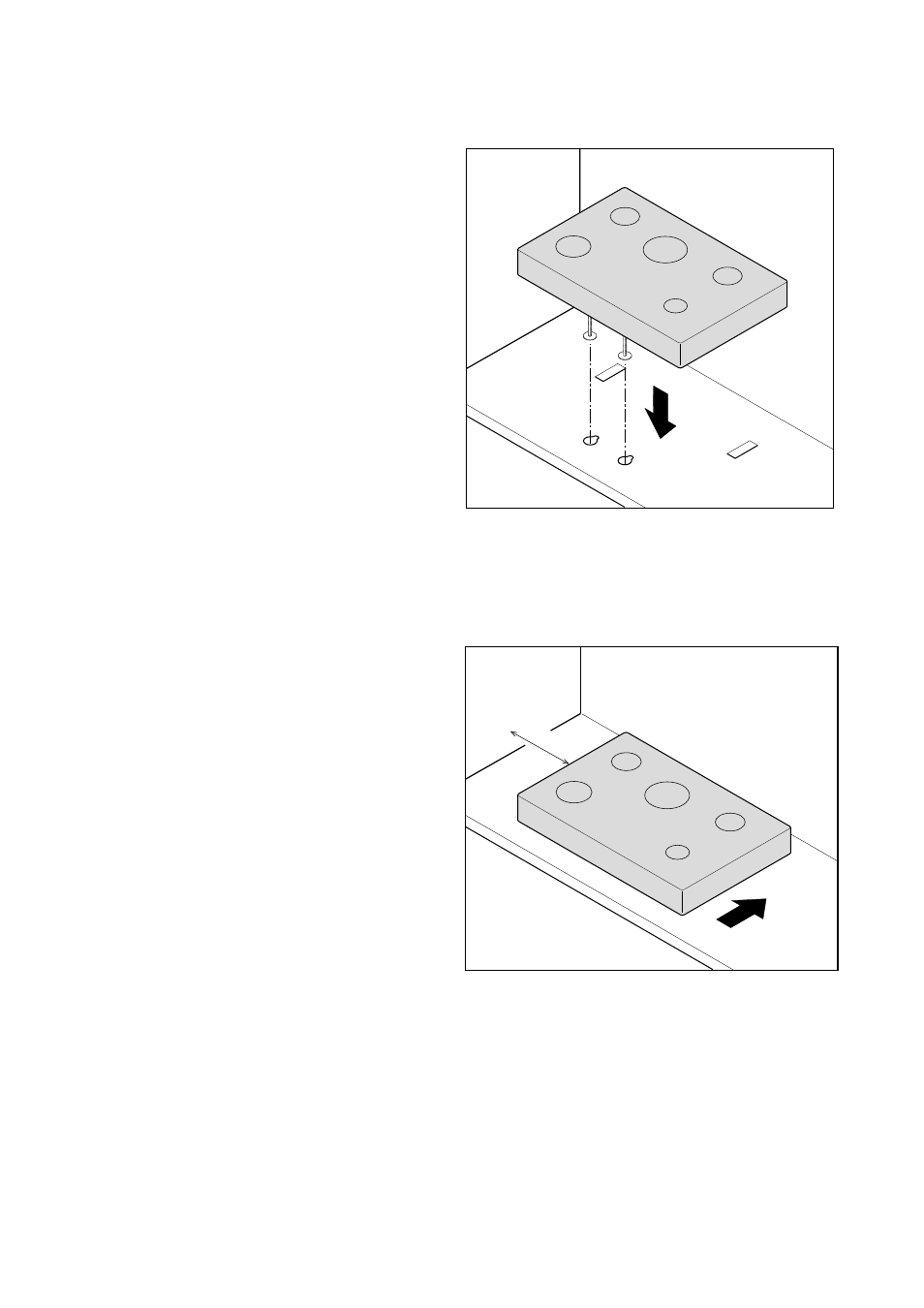

Fitting the hob to the worktop
1 - Holes for the gas and electric pipe outlet
2 - Safety holes to block the hob to the
worktop
3 - Traction pins
FO 2537
2
3
1
1
3
2
Fig. 1
80 MIN
FO 2538
Fig. 2
