10

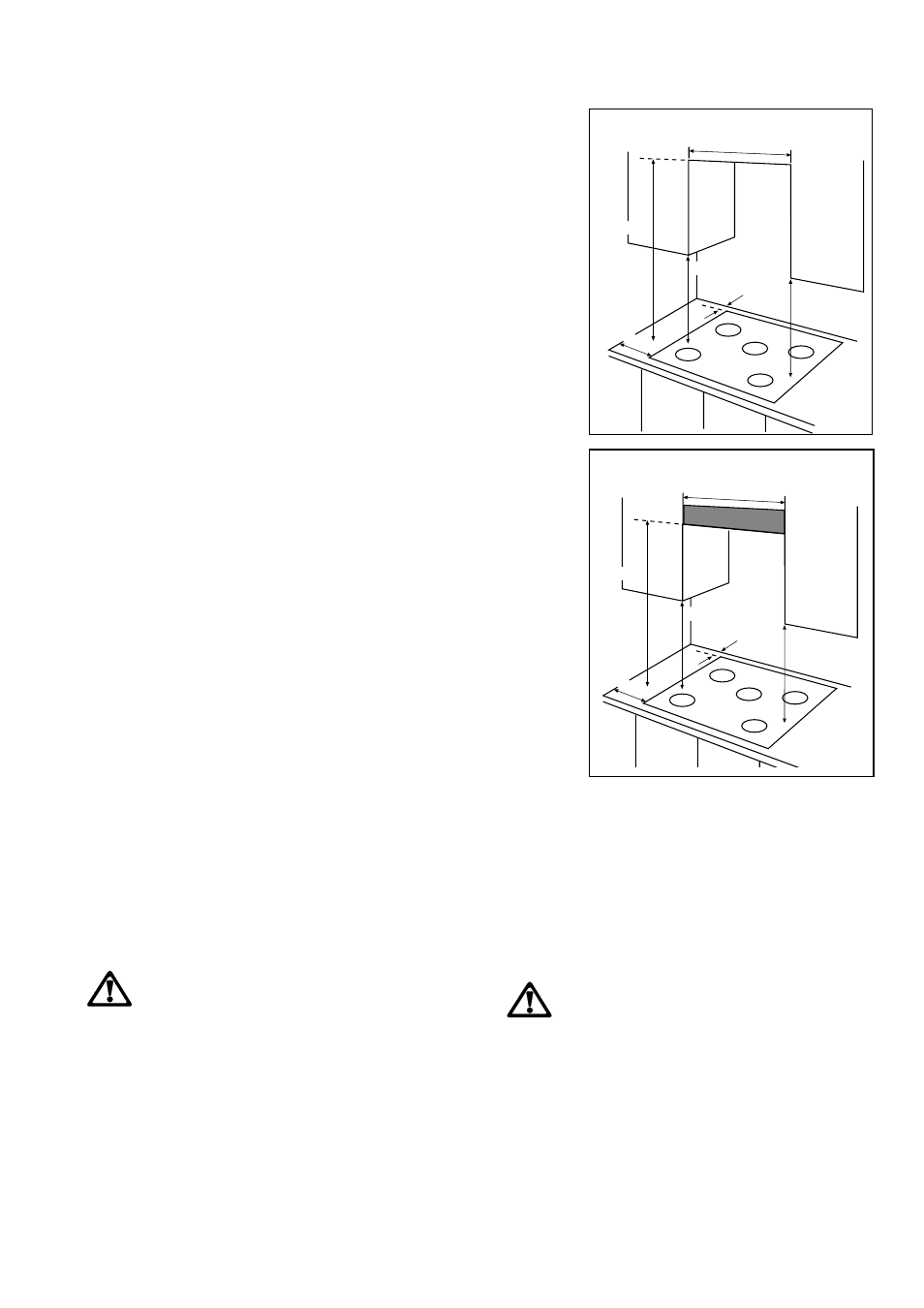

FITTING THE GAS HOB

WITH A COOKER HOOD ABOVE

700 mm

400 mm

400 mm

100 mm

20 mm

900 mm

700 mm

400 mm

400 mm

100 mm

20 mm

900 mm

FO 2540

FO 2541

Important safety requirements

This hob must be installed in accordance with the Gas

Safety (Installation and Use) Regulations (Current Edition)

and the IEE Wiring Regulations (Current Edition).

Detailed recommendations are contained in the following

British Standards Codes Of Practice: B.S. 6172/ B.S.

5440, Part 2 and B.S. 6891 Current Editions.

The hob should not be installed in a bed sitting room

with a volume of less than 20 m

3

. If it is installed in a

room of volume less than 5 m

3

an air vent of effective

area of 110 cm

2

is required. If it is installed in a room of

volume between 5 m

3

and 10 m

3

an air vent of effective

area of 50 cm

2

is required, while if the volume exceeds

11 m

3

no air vent is required.

However, if the room has a door which opens directly to

the outside no air vent is required even if the volume is

between 5 m

3

and 11 m

3

.

If there are other fuel burning appliances in the same

room, B.S. 5440 Part 2 Current Edition, should be

consulted to determine the requisite air vent requirements.

Location

The hob may be located in a kitchen, a kitchen/diner or

bed sitting room, but not in a bathroom, shower room or

garage.

A minimum distance of 20 mm. must be left between the

rear edge of the hob and the rear wall.

The minimum distance combustible material can be fitted

above the hob is 400 mm.

The minimum distance combustible material can be fitted

directly above the hob is 700 mm.

A minimum distance of 100 mm. must be left between

the side edges of the hob and any adjacent cabinets or

walls.

Please note that all the distances quoted in the diagramm

are intended from the hob top.

Installation

IMPORTANT

This hob must be installed by qualified

personnel to the relevant British Standards.

Any gas installation must be carried out by a

registered CORGI installer.

The manufacturer will not accept liability, should

the above instructions or any of the other safety

instructions incorporated in this book be

ignored.

WHEN THE HOB IS FIRST INSTALLED

Once the hob has been installed, it is important

to remove any protective materials, which were

put on in the factory.

On the end of the shaft, which includes the GJ 1/2"

threaded elbow, adjustment is fixed so that the washer

is fitted between the components as shown in the

diagram. Screw the parts together without using excessive

force.

FITTING THE GAS HOB

WITHOUT A COOKER HOOD ABOVE
