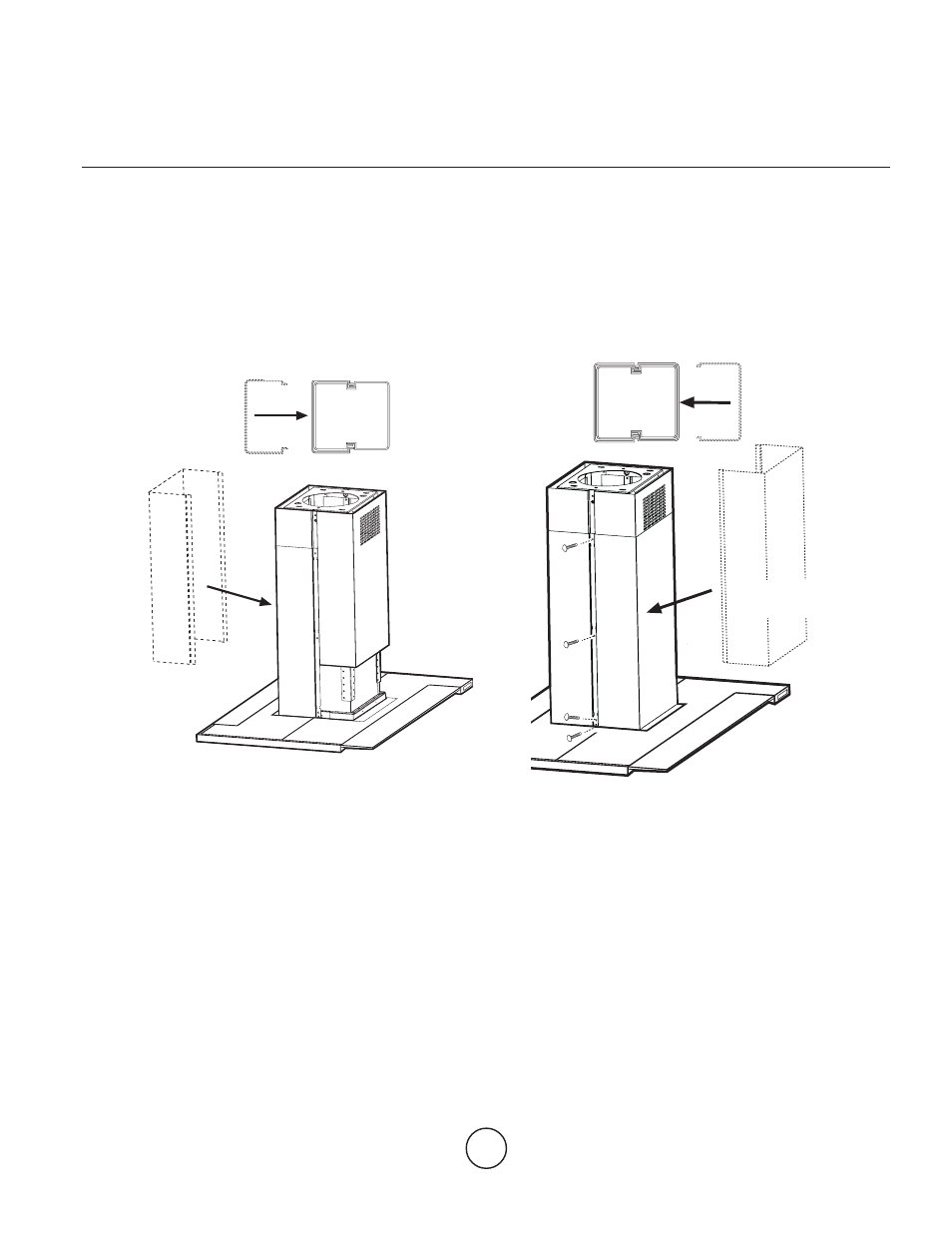

14. Fix 6 nuts on the internal side of rear bottom duct
covers section (square slots - see drawings after
step 11) and place it on the rear side of the hood on
top the canopy, cheack that it snaps with top duct
covers assembly.
rear bottom duct
covers section
Plan
diagram
top view
rear bottom duct
covers section
(snap into place)
15. Fit the front bottom duct covers section and fix both
sections with 8 screws each other (the lower screws
fix duct cover to canopy).
front bottom duct
covers section
front bottom duct
covers section
(snap into place and fix
with 8 screws - 4 per side)
Plan
diagram
top view
16. Install filters.
