Inst allation – Zephyr EOT-E42ASX User Manual
Page 13
13
www.zephyronline.com

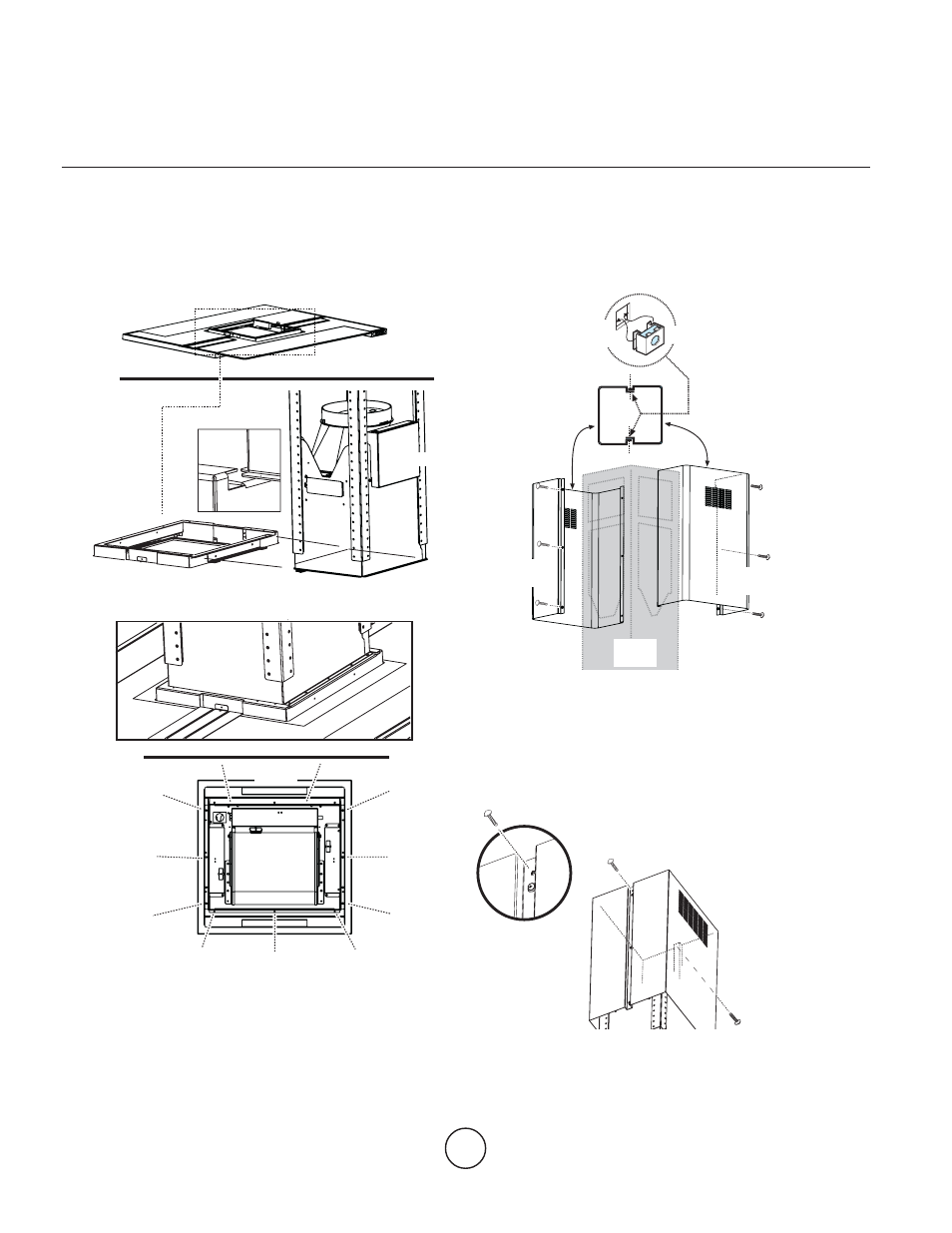

d. Fasten the canopy with 11 screws from the
bottom.
Bottom
View
FRONT
FRONT
FRONT
12. Fix 6 nuts on the internal side of top duct covers
sections (squere slots) and fix each other with 6
screws (3 per side).
Rectangular
slots
Plan
diagram
top
sections
Nut
top
sections
Chimney
Structure
13. Install top duct covers assembly to the chimney
structure.
Fix with 2 screws.
Note: Upper Duct Cover may be placed upside down
to hide (or unhide) ventless slots.
Inst
allation
