P-2802HW(L)-Ix Series Quick Start Guide
3

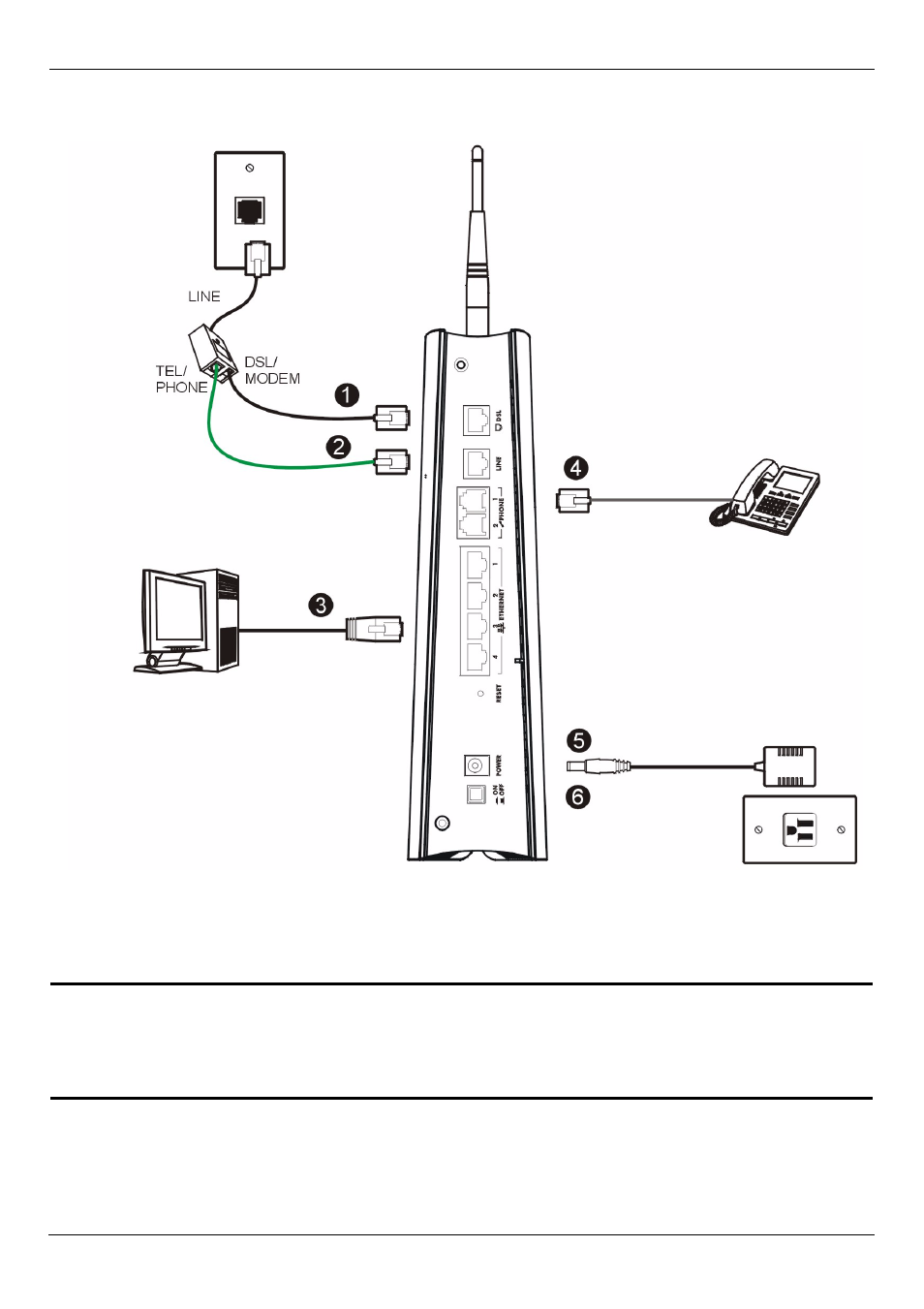

2 Hardware Connections
1 DSL: Use a telephone wire to connect this port to the DSL or MODEM jack on a splitter.
2 LINE (P-2802HWL-Ix only): Use the green PSTN cable to connect the TEL or PHONE
jack on the splitter to this port. Connect the splitter to a telephone jack.
"
When the P-2802HWL-Ix does not have power, the phone(s) connected to
the PHONE port(s) can still be used for making calls. Only one phone can
be in use at a time.
3 ETHERNET 1-4: Use an Ethernet cable to connect a computer to an ETHERNET port
for initial configuration and/or Internet access.
