Advanced 128-bit AES Security
With the 128-bit Data Encryption Security (AES) feature, the PLA402 v2 provides secure network connection
for Internet access and network resource sharing. Just enjoy fast Internet surfing experience and secure file
transfer, and leave the sweats to the PLA402 v2.
System Specifications
• Network Standard:
HomePlug AV 200 Mbps compliance Data Rate
• Power Line Network:
Supports up to 16 (Tone Map) PL- devices
communicating on a single network.
• Modulation:
OFDM Symbol Modulation, Supports QAM
1024/256/64/16, DQPSK, DBPSK and ROBO Carrier
modulation schemes
• Frequency Band: 1.7 MHz ~ 30 MHz
• Coverage Area: up to 300 meters
• Security:
- 128 bit AES encryption
- Encryption button
Hardware Specifications
• Interface: 10/100Mbps Ethernet port with
MDI/MDIX
• One Power Input: 100-240 VAC, 50 ~ 60 Hz
• LED Display on Top-Case
-
PWR
- Powerline Link, Activity, and Throughput Indicator
- Ethernet Link and Activity
Physical Specifications
• Dimensions: 112 (W) x 106 (D) x 28.5 (H) mm
• Weight: 185 g
Environmental Specifications
Operation Environment
• Temperature: 0ºC ~ 40ºC
• Humidity: 20% ~ 95% RH
Storage Environment
• Temperature: -20ºC ~ 60ºC
• Humidity: 20% ~ 95% RH
Certification
• Safety: UL, cUL, LVD
• EMI: CE, FCC part 15B
• HomePlug Certification: HomePlugAV
Specifications
Powerline Hybrid Adapter
PLA402 v2
F o r m o r e p r o d u c t i n f o r m a t i o n , v i s i t u s o n t h e w e b a t w w w . Z y X E L . c o m
65-100-402003B
01/08
Copyright © 2008 ZyXEL Communications Corp. All rights reserved. ZyXEL, ZyXEL logo are registered trademarks of ZyXEL Communications Corp. All other brands,
product names, or trademarks mentioned are the property of their respective owners. All specifications are subject to change without notice.
Powerline
Adapter
VD
AD
Gaming
Internet
1
Media
Player
2
3
Gaming
Gaming
er Line
ial cable
rnet
HDTV

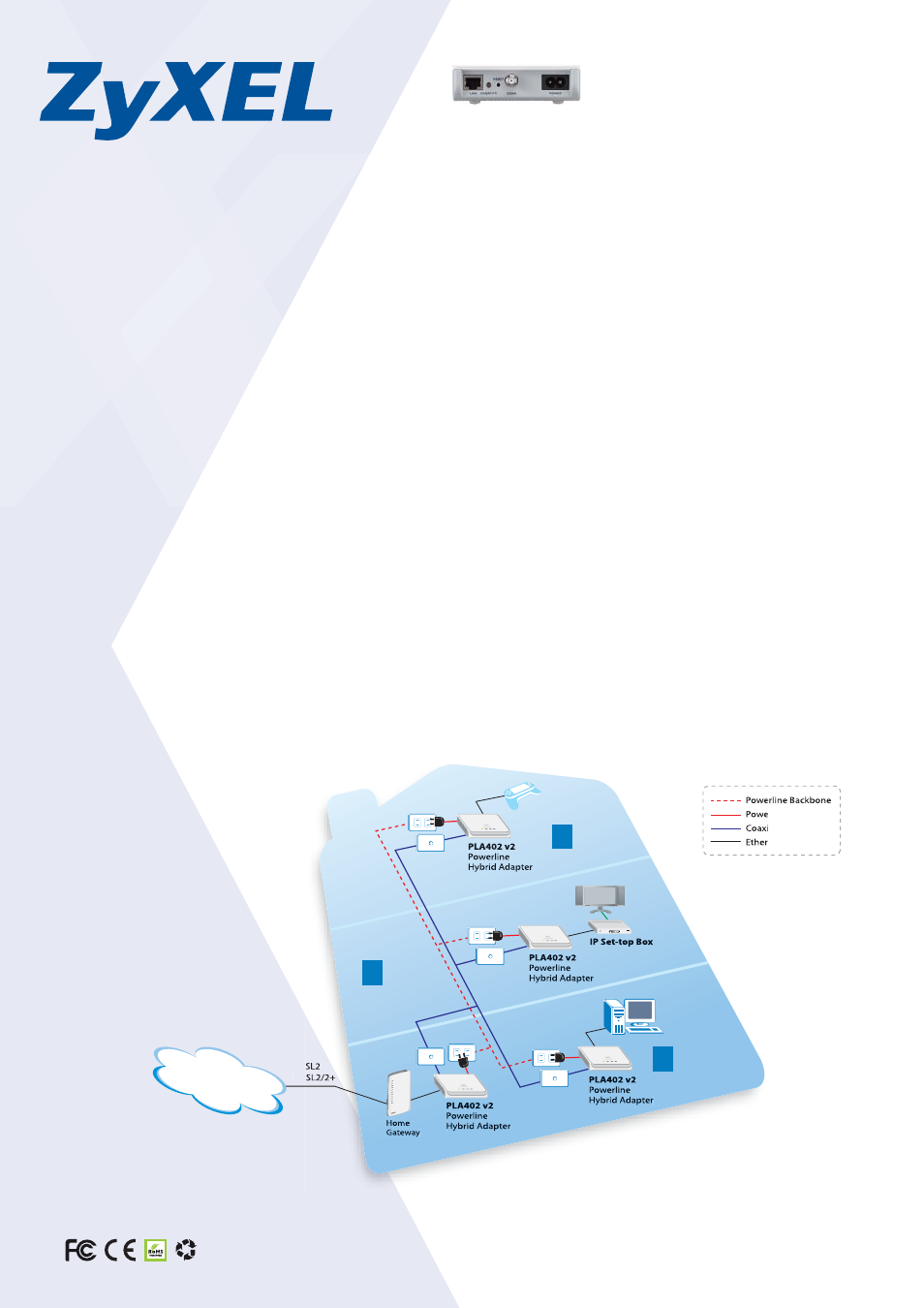

Application Diagram
