Fitting the Hob into the
Worktop

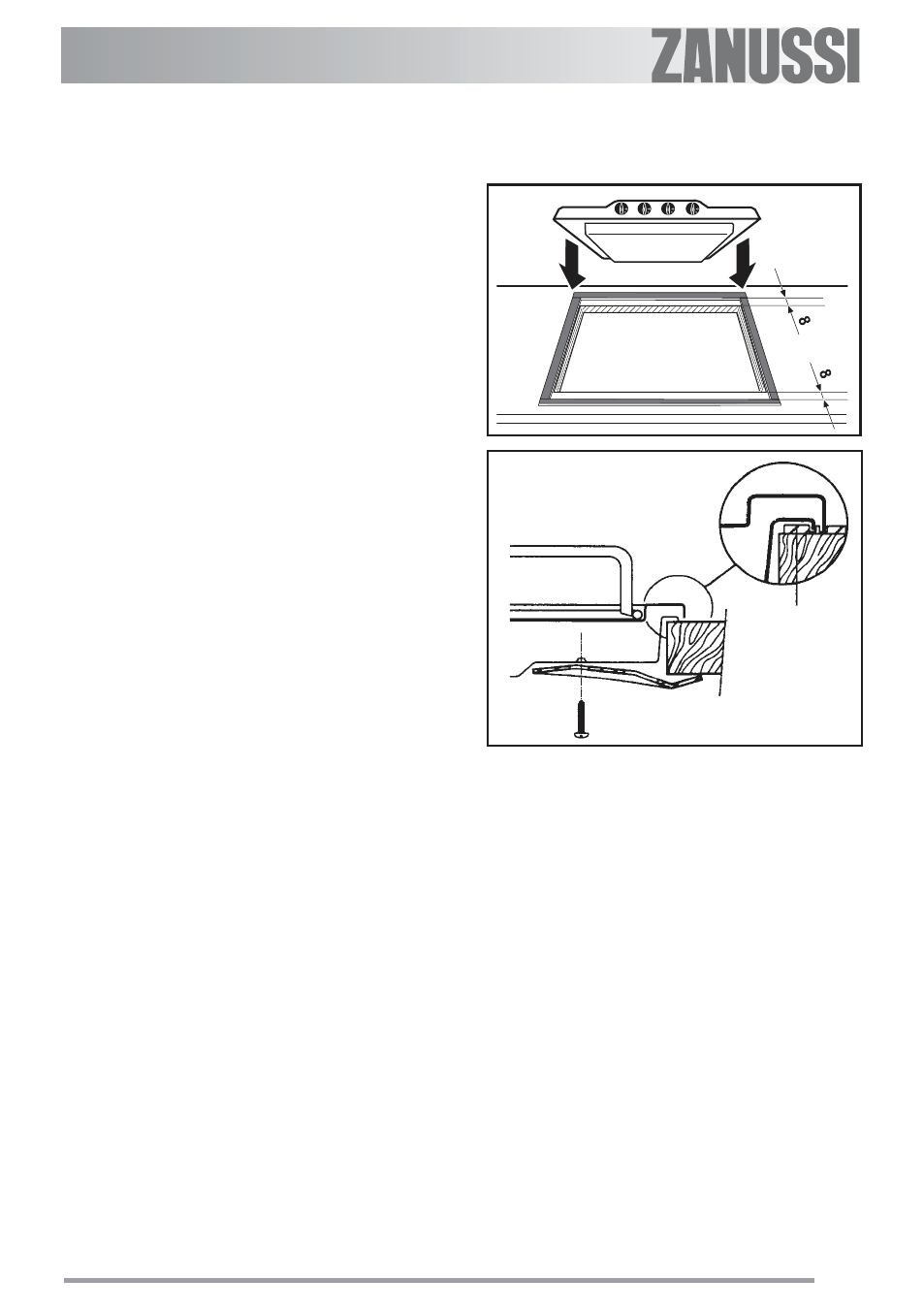

Carry out the building in of the hob as
follows:
1. place the seals supplied with
the hob on the side edges of the
cut out and at 8 mm. from the
front and rear edges, as shown
in the diagram, taking care that
the seals meet without
overlapping;
2. place the hob in the cut out,
taking care that it is centred;
3. fix the hob with the relevant
fixing clamps and screws, as
shown in the diagram. When the
screws have been tightened,
the excess seal can be
removed.
The edge of the hob forms a double seal
which prevents the ingress of liquids.
Seal
