Zanussi ZWO 3101 User Manual

Page 19

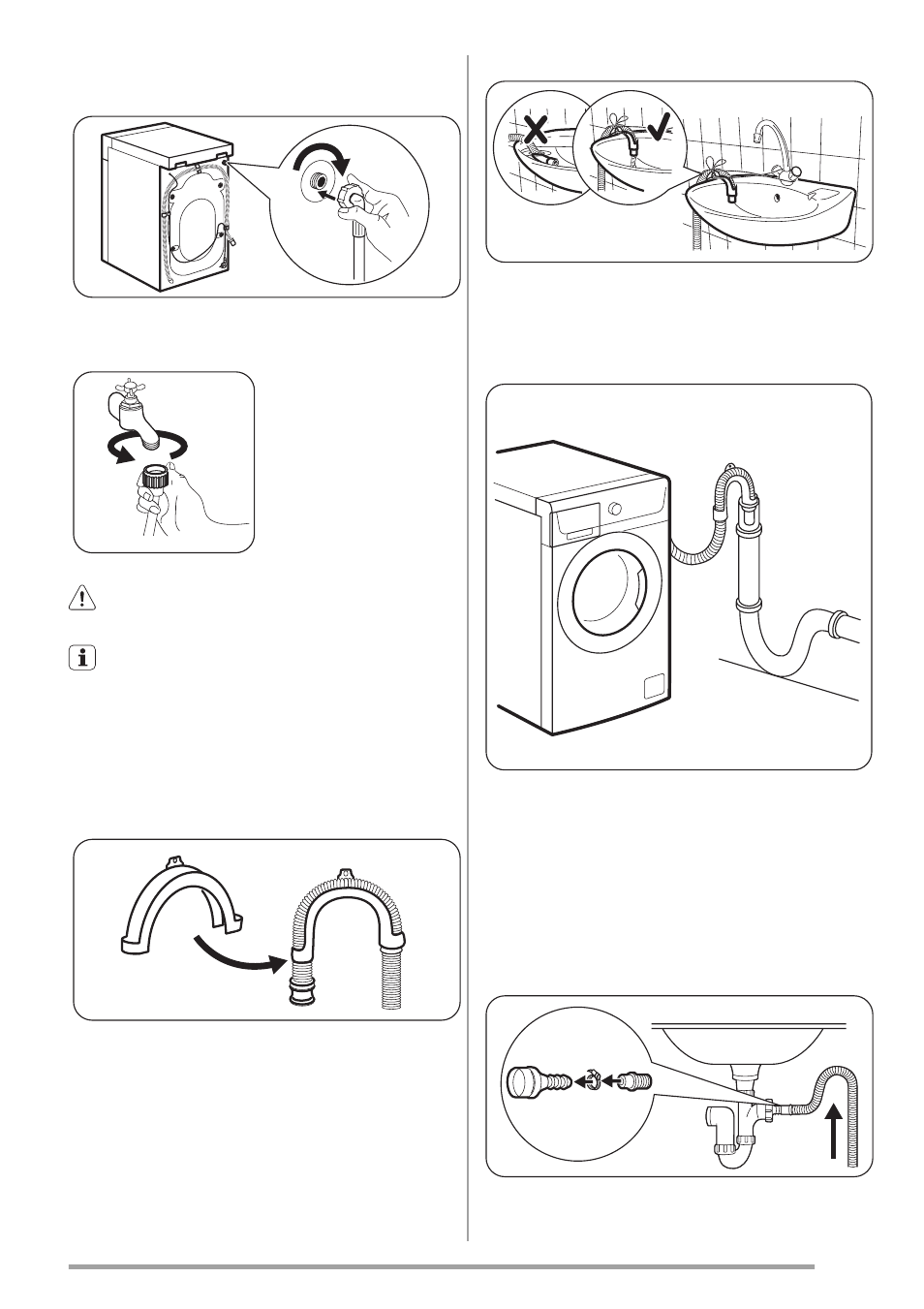

The inlet hose

• Connect the hose to the appliance. Loose the ring

nut to set it in the correct position.

• Connect the water inlet

hose to the cold water

tap with 3/4 thread.

Caution! Make sure that there are no leaks from the

couplings.
Do not use an extension hose if the inlet hose is too

short. Contact the service centre for the replacement

of the inlet hose.

Water drainage

There are different procedures to connect the drain hose:

With the plastic hose guide

• On the edge of a sink.

Make sure that the plastic guide cannot move when

the appliance drains. Attach the guide to the water

tap or the wall.

• To a stand pipe with vent-hole.

Refer to the illustration. Directly into a drain pipe at a

height of not less than 60 cm and not more than 90

cm. The end of the drain hose must always be venti-

lated , i.e. the inner diameter of the drainpipe must

be larger than the external diameter of the drain

hose.

Without the plastic hose guide
