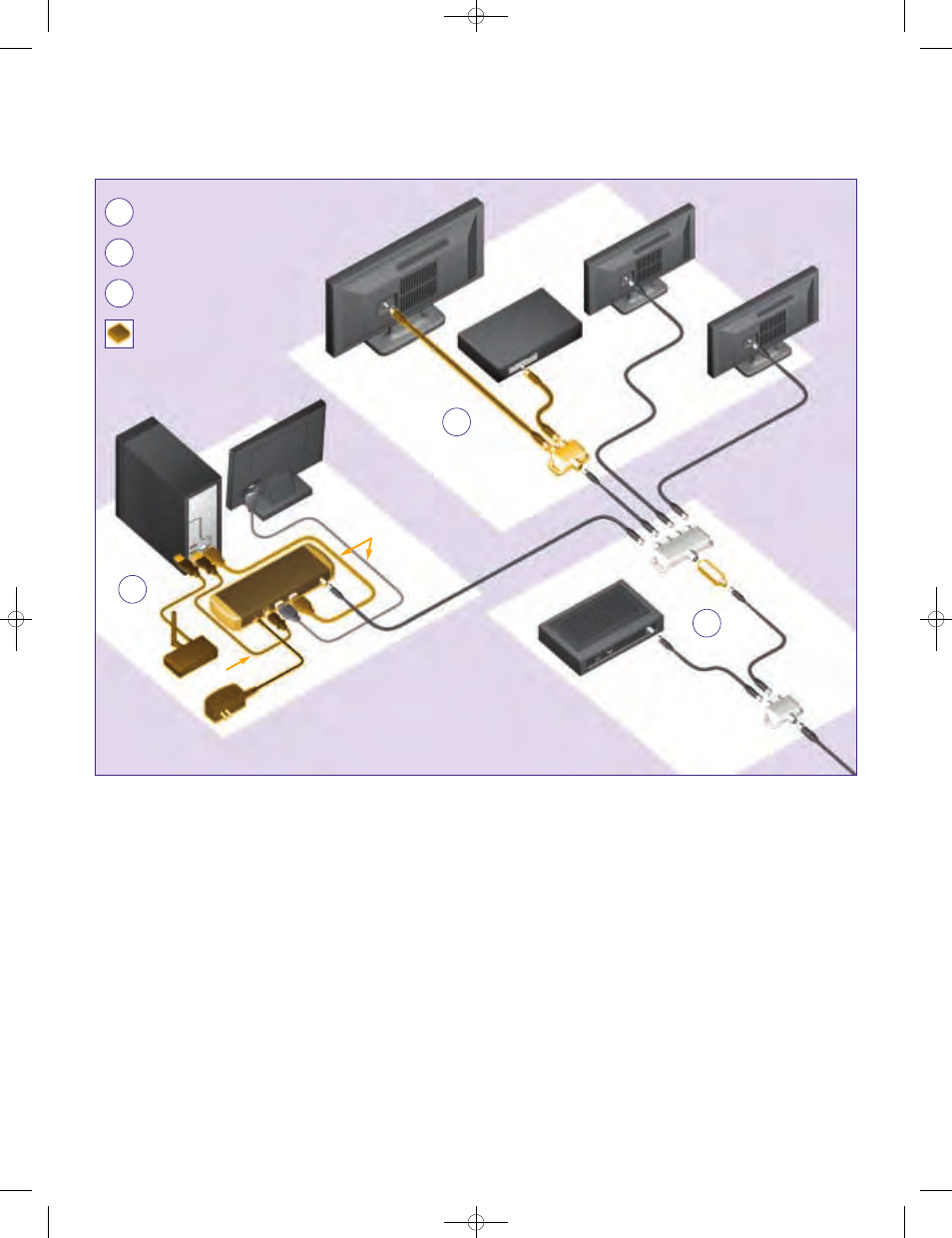

Typical installation:
ZvBox using a spare coax wiring connection
in your den/office
see pages 4-6
in your utilities room/basement
see page 3
in your living room/bed room
see pages 7-8
new items
A
B
C
A
B
C
USB cable
VG
A cable
s
Cable modem
Channel filt
er
Split
ter
Set
-top bo
x
HD
TV
HD
TV
HD
TV
This configuration likely represents the easiest deployment if you do not have a cable modem
near your computer, but do have a coaxial cabling connection nearby that ZvBox can connect to.
If needed, ZvBox can share coaxial cabling with a TV, DVR, or other set-top box. In this setup the
channel filter is connected to the input of the second splitter in the system.
