CONNECTING TO GAS SUPPLY
This appliance is designed to be installed with an appliance flexible connection only. Supply piping should not be
less than R
3 /8. Connection is made to the Rc ½ (½” B.S.P.) female threaded entry pipe located just below the
hotplate level on the rear left hand side of the appliance. NOTE: ONLY LIQUID SEALANTS TO BE USED
WHEN INLET GAS PIPE IS FITTED I.E.: DO NOT USE P.T.F.E. SEALANT TAPE. Carry out a gas tightness
test after connecting to the gas supply. The gas bayonet connector must be fitted in the shaded area indicated in
Fg.3. Take into account that it must be possible to pull the appliance forward sufficiently. The hose must not get
caught on the stability bracket.
IMPORTANT: FLEXIBLE TUBING USED MUST COMPLY WITH BS.669 CURRENT EDITION.
LPG Flexible connections must be a type suitable for L.P.G and capable of operation up to 50 mbar and carry a
red stripe, band or label.
INSTALLATION INSTRUCTIONS

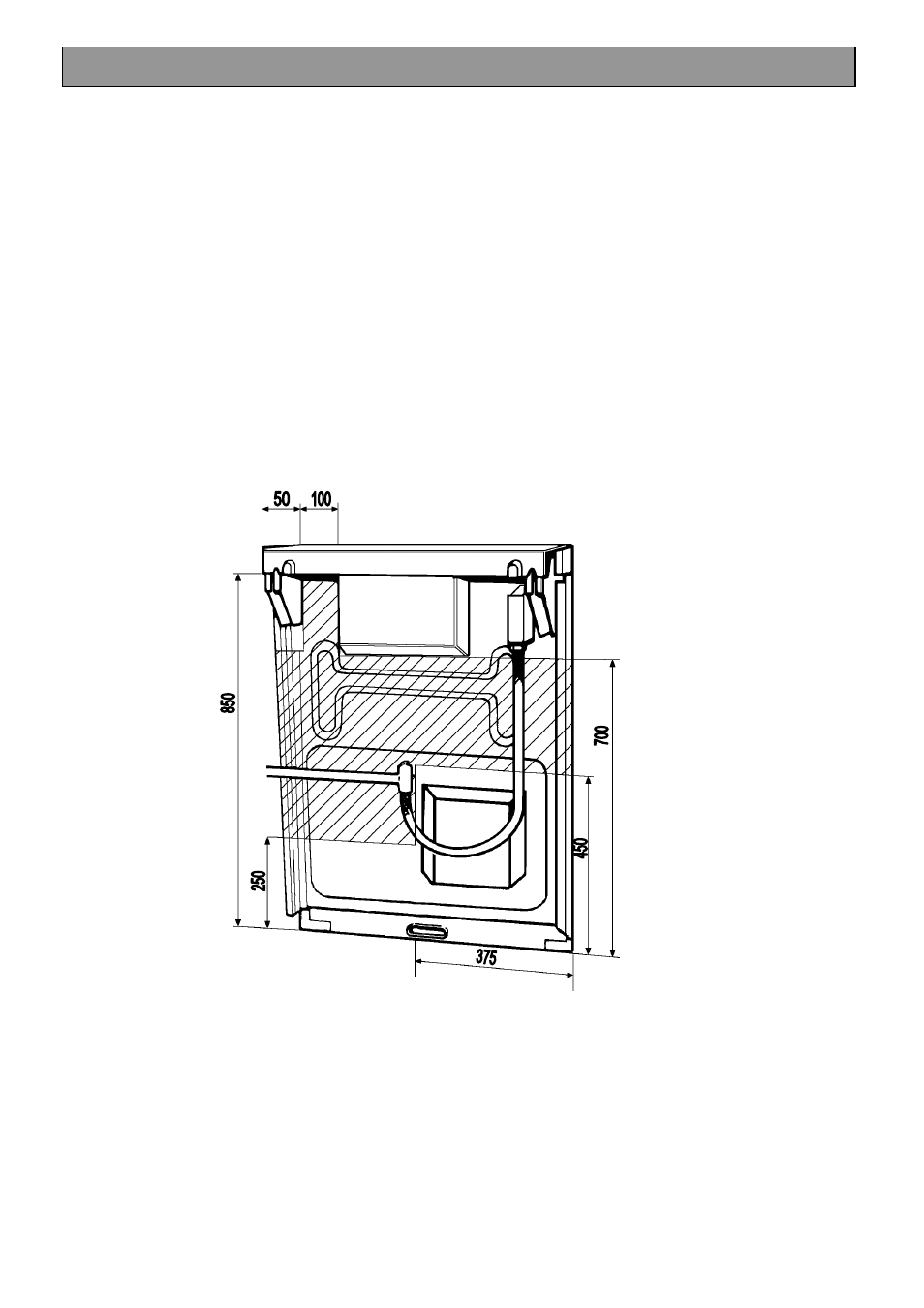

Fig. 3
