Wiring Diagrams

975-0239-01-01

B-3

Single-Inverter System (Backup only)

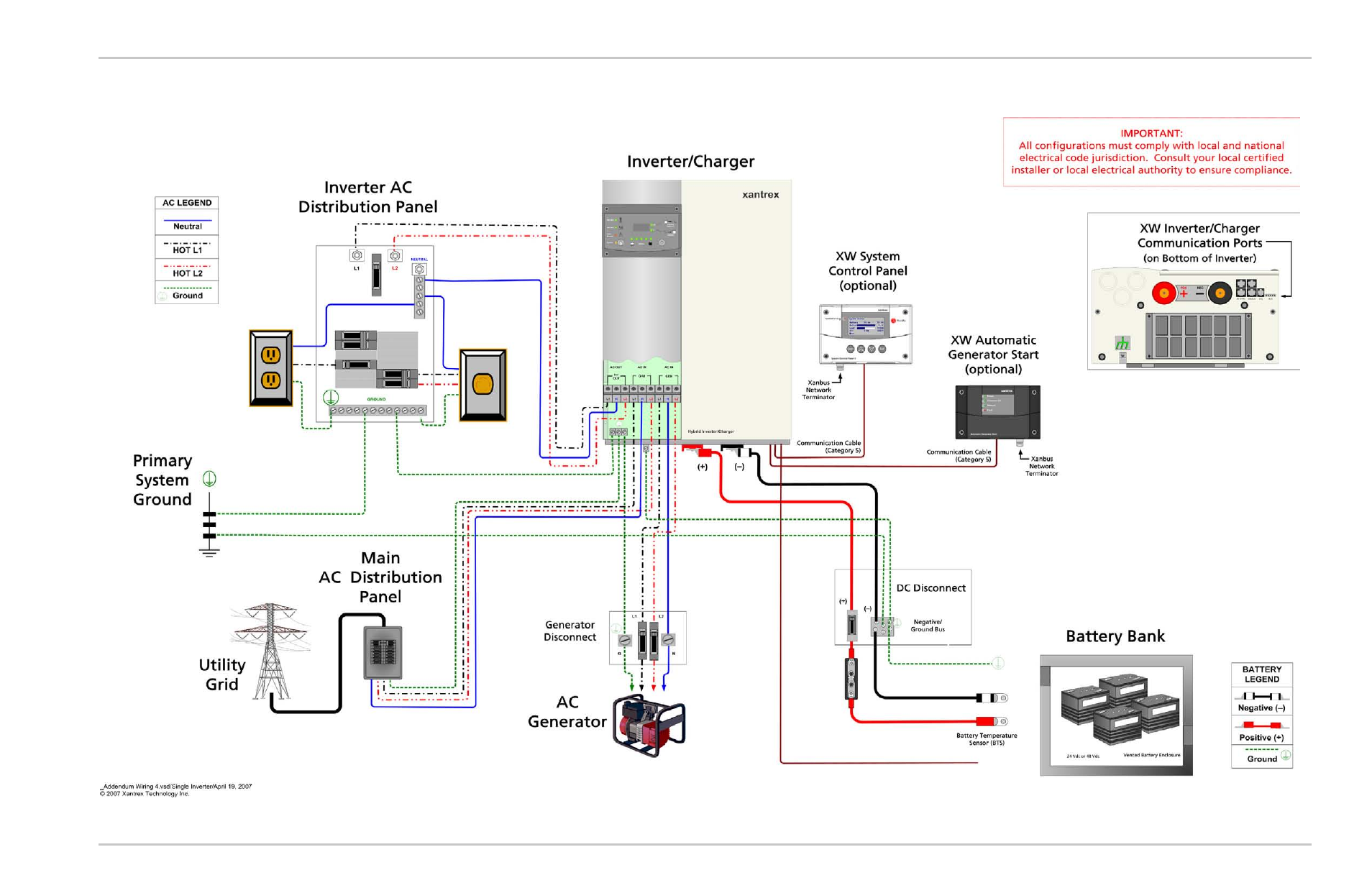

Figure B-1 Single-Inverter System (Backup only)
