Zanussi ZBF 560 - Manual (Page 23)

23
Shelf Supports and Catalytic Panels
The shelf supports and the catalytic panels can
be removed for easy cleaning.
Make sure that the appliance is completely
cooled before carrying out this operation.
Proceed as follows:

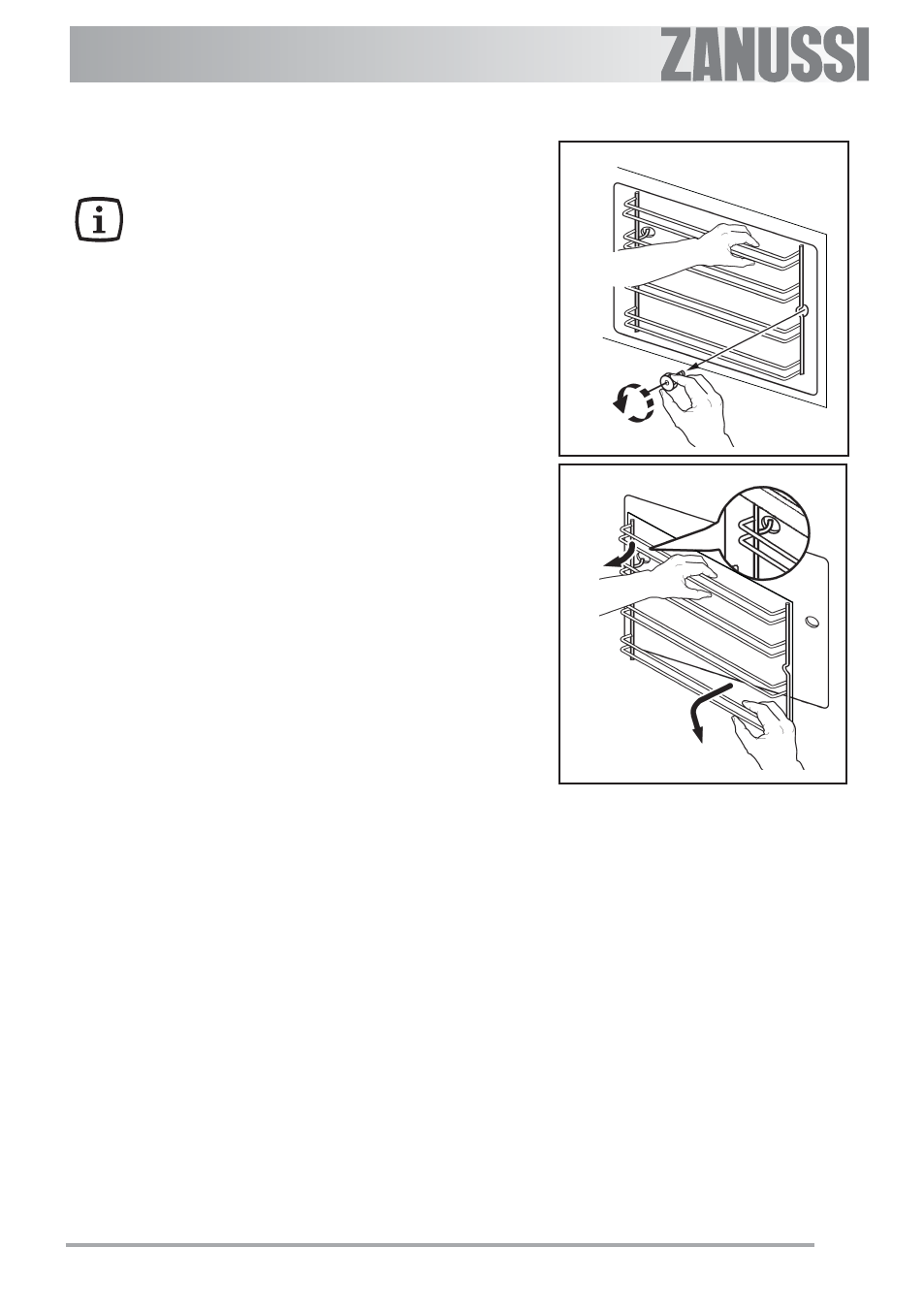

1) remove the front screw while keeping the shelf
support and the catalytic panel in position with
the other hand (see diagram 1);
2) keep the shelf support and the catalytic panel
in position and lift them with a hand while
disengaging the rear hook. Take off the shelf
support and the catalytic panel (see diagram
2);
3) once the cleaning is carried out, fit the shelf
support and the catalytic panel together and
mount them following the procedure in reverse.
Please, ensure the retaining nuts are secure when
refitting the shelf support and the catalytic panel.
1
2
