BC3500DLM / BC3500DWM
G
B
Model name .................................................................... BC3500DLM/BC3500DWM
Engine
Model ........................................................................................ Zenoah G35L-D
Displacement ....................................................................................... 33.6 cm3
Fuel ......................................................................... Mixture (Gasoline 50 : Oil 1)
(when using ZENOAH genuine oil)
Carburetor .................................................................................. Diaphragm type
Ignition system ........................................ Transistor controlled flywheel magneto
Spark plug ..................................................................................... NGK BPMR7A
Fuel tank capacity ...................................................................................... 0.74 liters
Starter ...................................................................................................Recoil starter
Clutch ...............................................................................................Centrifugal type
Reduction ratio ................................................................................................ 1.357
Cutting head rotating direction .......................... Counter-clockwise (Operator view)
BC3500DLM
Overall size (L x W x H) .......................................................... 1860 x 395 x 325 mm
Dry weight ...................................................................................................... 6.4 kg
BC3500DWM
Overall size (L x W x H) .......................................................... 1860 x 610 x 520 mm
Dry weight ...................................................................................................... 6.9 kg
Specifications are subject to change without notice.
4. Symbols on the ma-
chine
3. Warning labels on the machine
Never modify your machine.
We won’t warrant the machine, if you use the
remodeled brushcutter or if you don’t observe
the proper usage written in the manual. If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product to
order new labels and affix them in the required
location(s).

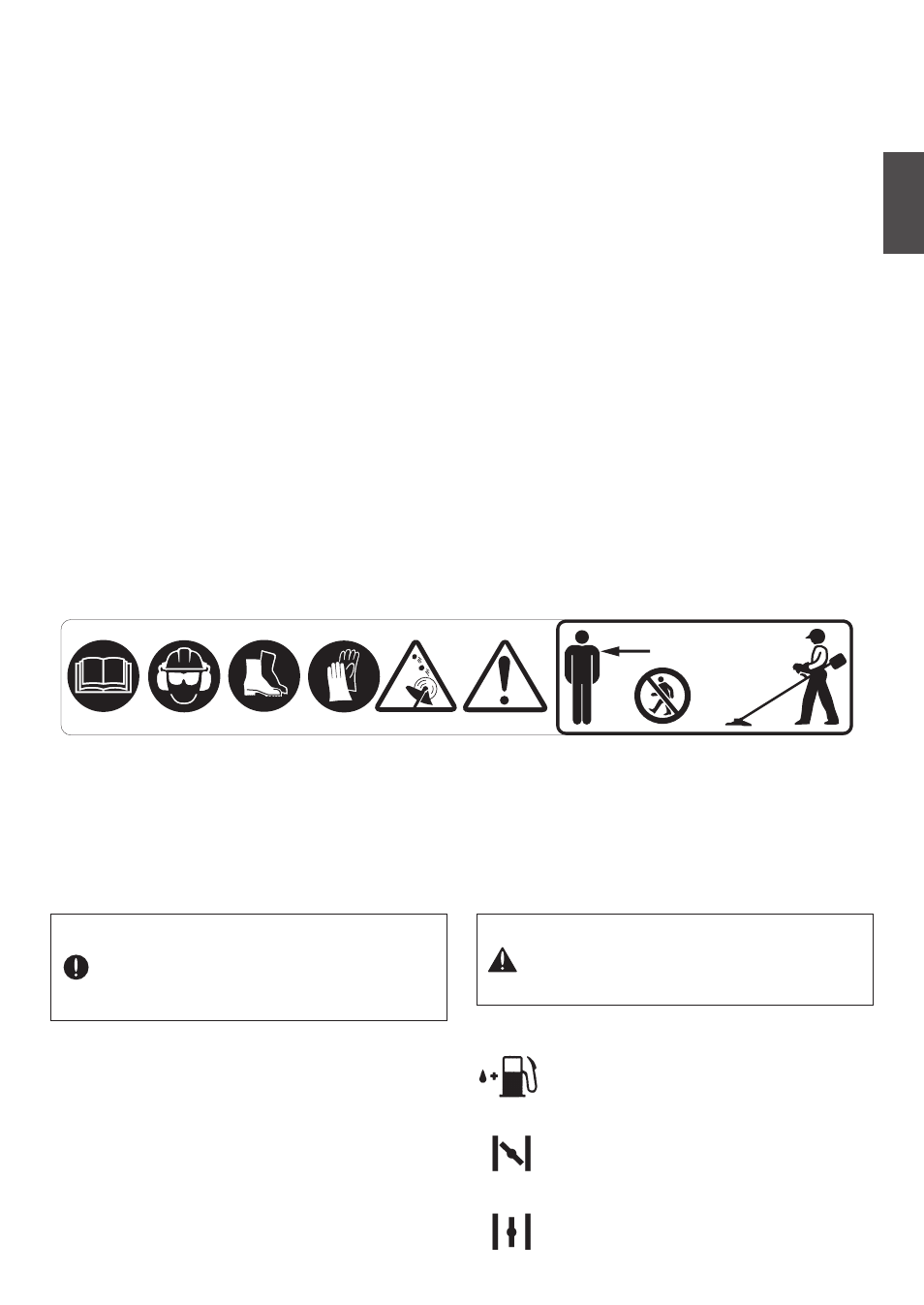

(1) Read owner’s manual before operating this machine.
(2) Wear head, eye and ear protection.
(3) Wear foot protection.
(4) Wear gloves.
(5) Beware of thrown objects.
(6) Warning / Attention
(7) Keep all children, bystanders and helpers 15 meters away from the machine.
15m (50ft)
(1) (2) (3) (4) (5) (6) (7)
2. Specification
For safe operation and maintenance, symbols are
carved in relief on the machine. According to these
indications, please be careful not to make a mistake.
The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP
The direction to close the choke
Position: AIR CLEANER COVER
The direction to open the choke
Position: AIR CLEANER COVER
