Replacing the ADF Pad Assembly
The ADF pad may wear out and is designed to be a user-
replaceable part. Problems with documents feeding into the ADF is
an indication that the pad is wearing out.
See the “Xerox DocuMate 632 Scanner Parts List” on page 118 for
ordering information.

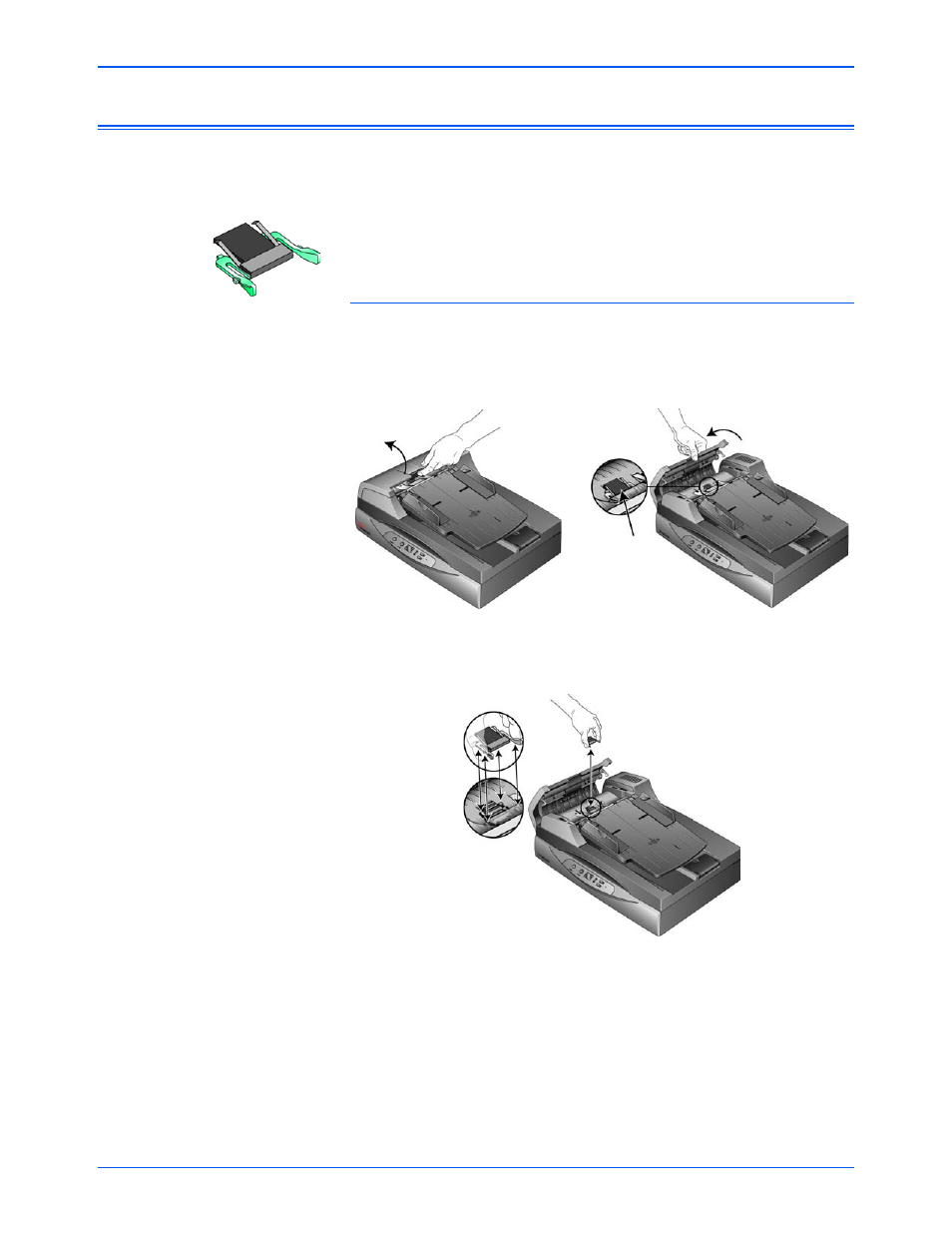

To replace the ADF Pad assembly:
1. Press the ADF cover release on the top of the scanner body to
open the Automatic Document Feeder cover. The pad is
located in the middle of the ADF.
2. Squeeze the plastic clamps that hold the pad assembly in place
and lift the pad up and out
3. Reverse the procedure to replace the new pad into its slots.
