English Connecting Your Speakers
Always turn off your amplifier or receiver before making any connections.
■ Preparing Your Speaker Cables
Carefully remove 10 mm (3/8 ”)of insulation from both ends of your
speaker cables and twist the bare wires tightly, as shown.

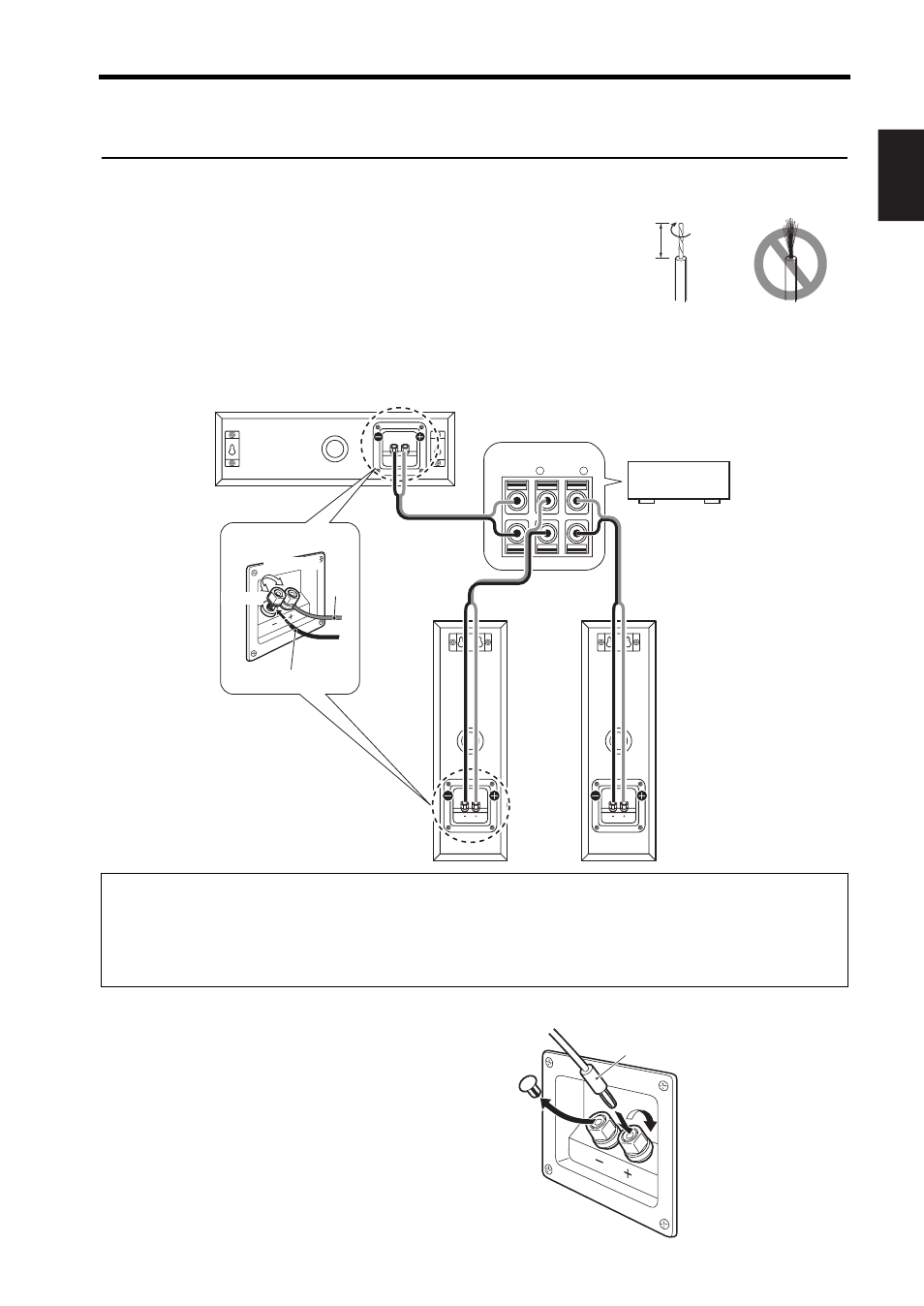

■ Hookup
■ Using a Banana Plug
1. Remove the speaker terminal cover by
gently pulling it toward you.
2. Tighten the terminal knob.
3. Simply insert the banana plug into the
terminal.
Good No Good
10 mm
(3/8 ”)
Notes:
• Make sure that the bare wires are not touching each other as this could damage the speaker and amplifier.
• Connect one speaker to the left terminals of your amplifier, and another speaker to the right terminals, making
sure not to reverse the polarity (+, –). If one speaker is connected with reversed polarity, the sound will be
unnatural and lack bass.
CENTER
FRONT
OR
SURROUND R L
+
–
NS-C125
NS-M125
Amplifier or
receiver
+
–
Loosen
Tighten
1
3
2
Banana Plug
