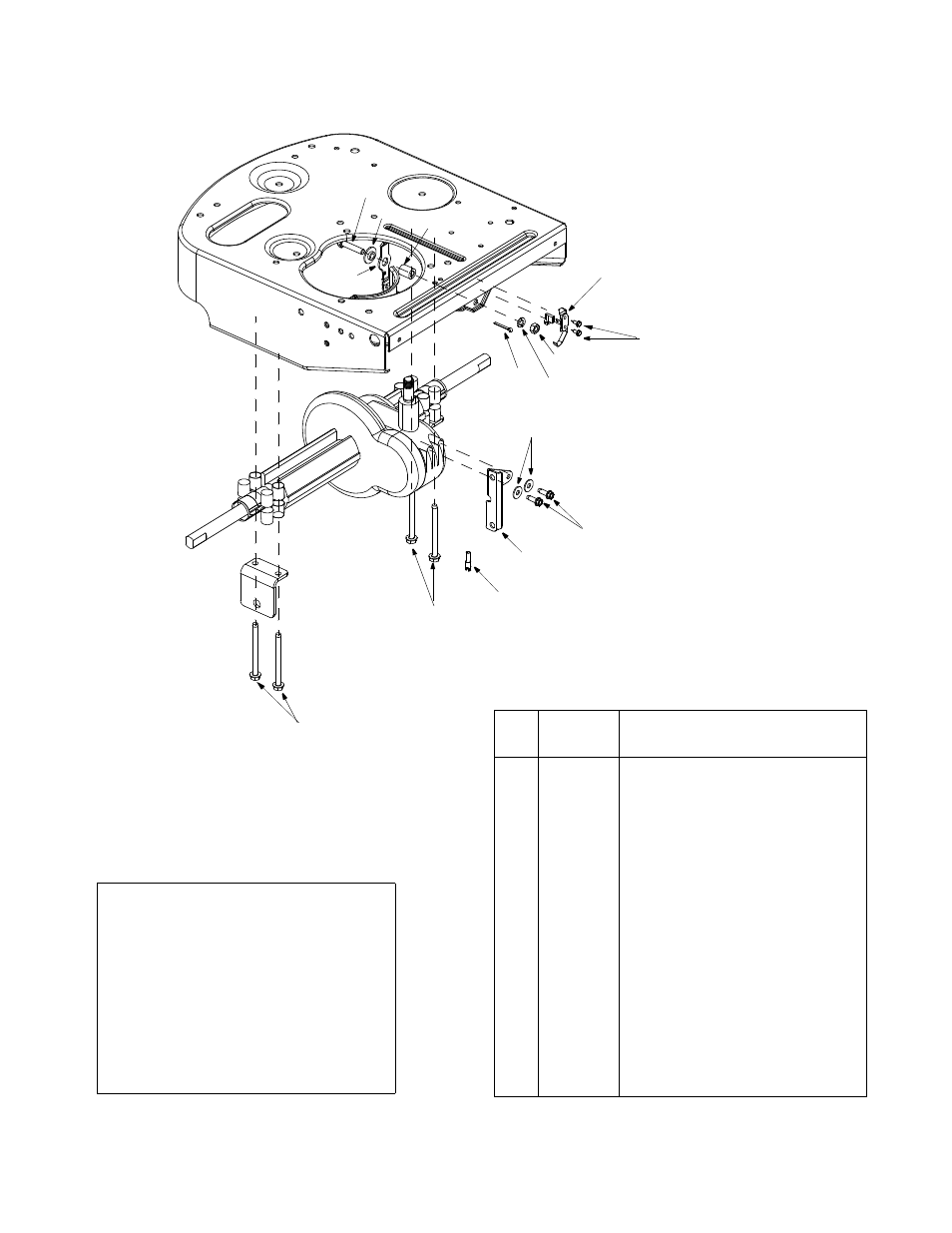

Yard-Man 13B-325-401 - Manual (Page 28)

28
Model 325 Series
Ref.
No.
Part No. Description
1 629-0865 Harness Assembly Adapter
2 710-1208 Hex TT Screw 5/16-18 x 3.50
3 710-0227 Hex Washer Head Self-Tap.Scew
4 710-0805 Hex Screw 5/16-18 x 1.5 Gr. 5
5 710-0642 Thd. Forming Scr. 1/4-20x .75
6 712-3010 Hex Nut 5/16-18
7 714-0115 Cotter Pin
8 726-0320 Insulator Nut Plate
9 736-0289 Shoulder Bushing
10 736-0119 Lock Washer 5/16
11 736-0173 Flat Washer
.28 I.D. x .74 O.D. x .083
12 750-1064 Spacer
13 783-0591 Transaxle Bracket
14 783-0433A Shift Lever
8
3
5
11
13
1
2
7
10
6
4
9
14
12
2
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Yard-Man
Green, the part number to order would be
700-xxxx-0665.
Yard-Man Green: 0665
Yard-Man Yellow: 0674
Powder Black: 0637
