PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
NOTE:
An oil filter wrench is available at a
Yamaha dealer.

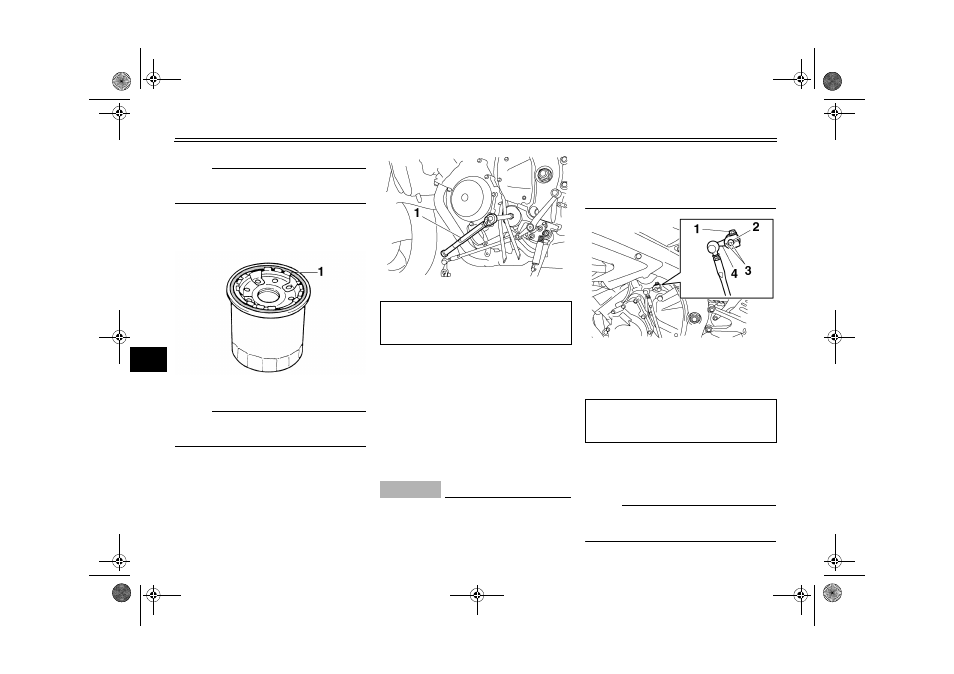

8. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
NOTE:
Make sure that the O-ring is properly
seated.
9. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.
10. Insert the fuel tank breather/over-
flow hoses into the guide and
place them in their original posi-
tion.
11. Install the shift arm by aligning the
match mark on the shift arm with
the match mark on the shift shaft
and installing the bolt, then tighten-
ing it to the specified torque.
CAUTION:
ECA15340
Be sure to align the match marks to
ensure proper shifting.
If the match marks are not aligned,
the shift arm will not move correctly
and you may not be able to shift up
or down the gears.
12. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
NOTE:
Check the washer for damage and re-
place it if necessary.
1. O-ring
1. Torque wrench
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
1. Bolt
2. Shift shaft
3. Match marks
4. Shift arm
Tightening torque:
Shift arm bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
