Before fitting the hob into the cut out, an adhesive
seal must be fitted to the underside outside edge
(see figure 6) of the hob. It is essential that no gaps
are left in this seal in order to prevent spillage near
the hob seeping into the cabinet below.
1) Remove the pan supports, the burners
caps and crowns and turn the hob upside
down, taking care the ignition candles are
not damaged in this operation.

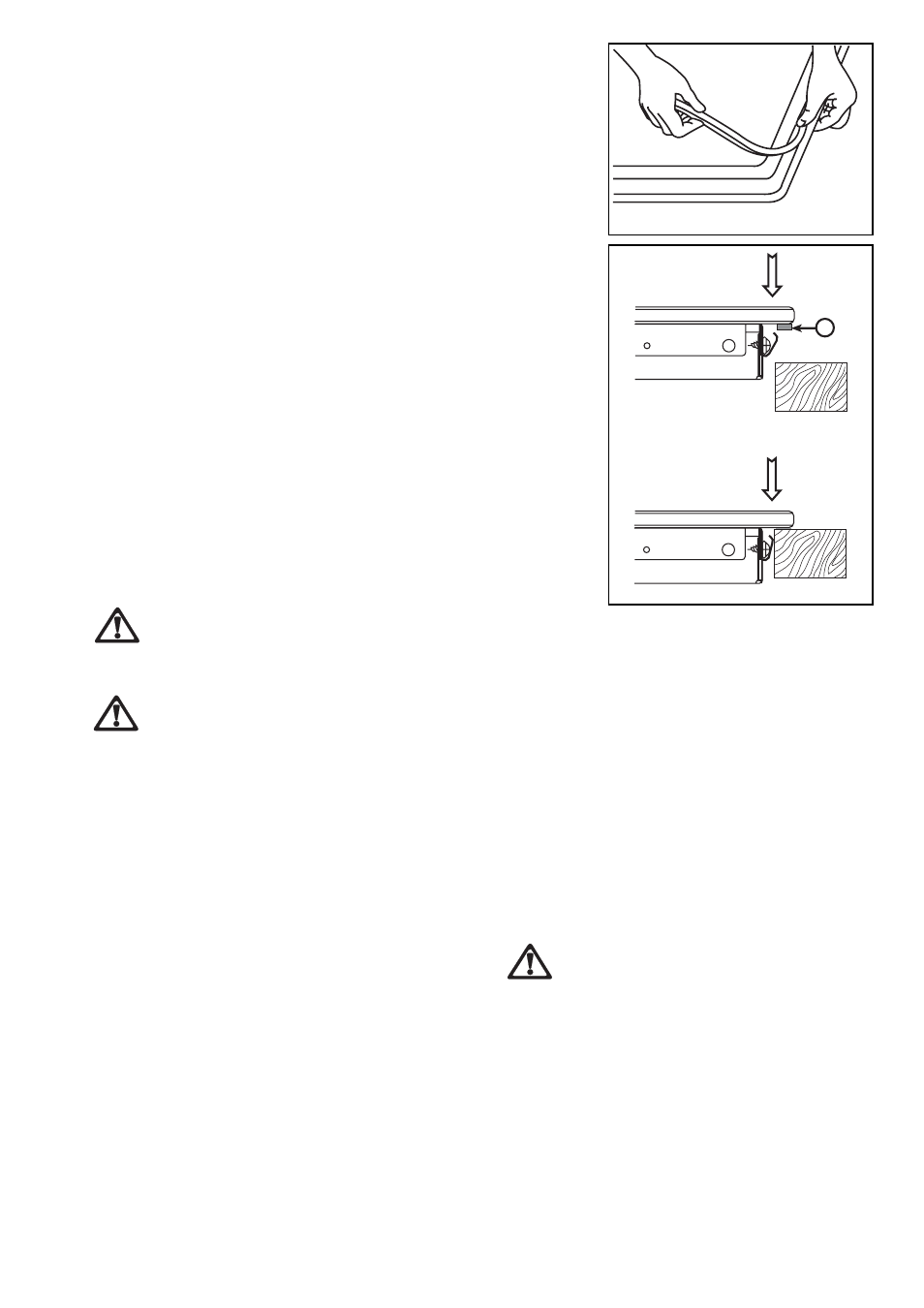

2) Place the sealing gasket all around the
glass top edge as shown in diagram.
3) Fit the hob in the cut out and push it down
until the glass top and the working top
make contact, as shown in figure 7.
A
FO 2108
FO 2107
Fitting the hob to
the worktop
) ) ) ) )
Electrical connection
A) Sealing gasket
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person,
in accordance with the current regulations.
THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
these safety measures not be observed.
This appliance is designed to be connected to
a 230 V 50Hz AC electrical supply.
Before the appliance is connected:
1) check that the main fuse and the domestic
installation can support the load (see the rating
label);
2) check that the power supply is properly earthed
in compliance with the current rules;
3) check the socket or the double pole switch used
for the electrical connection can be easily
reached with the appliance built in the forniture
unit. Before switching on, make sure the
electricity supply voltage is the same as that
indicated on the appliance rating plate. The
rating plate is located on the bottom of the hob.
A copy is attached on the back cover of this book.
The appliance is supplied with a 3 core flexible
supply cord incorporating a plug. Connect the plug
to an adequate socket.
Permanent Connection
In the case of a permanent connection, it is
necessary that you install a double pole switch
between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm. between
the switch contacts and of a type suitable for the
required load in compliance with the current electric
regulations.
The switch must not break the yellow and green
earth cable at any point.
Ensure that the hob supply cord does
not come into contact with surfaces
with temperatures higher than 50 deg.
C.
Fig. 6
Fig. 7
